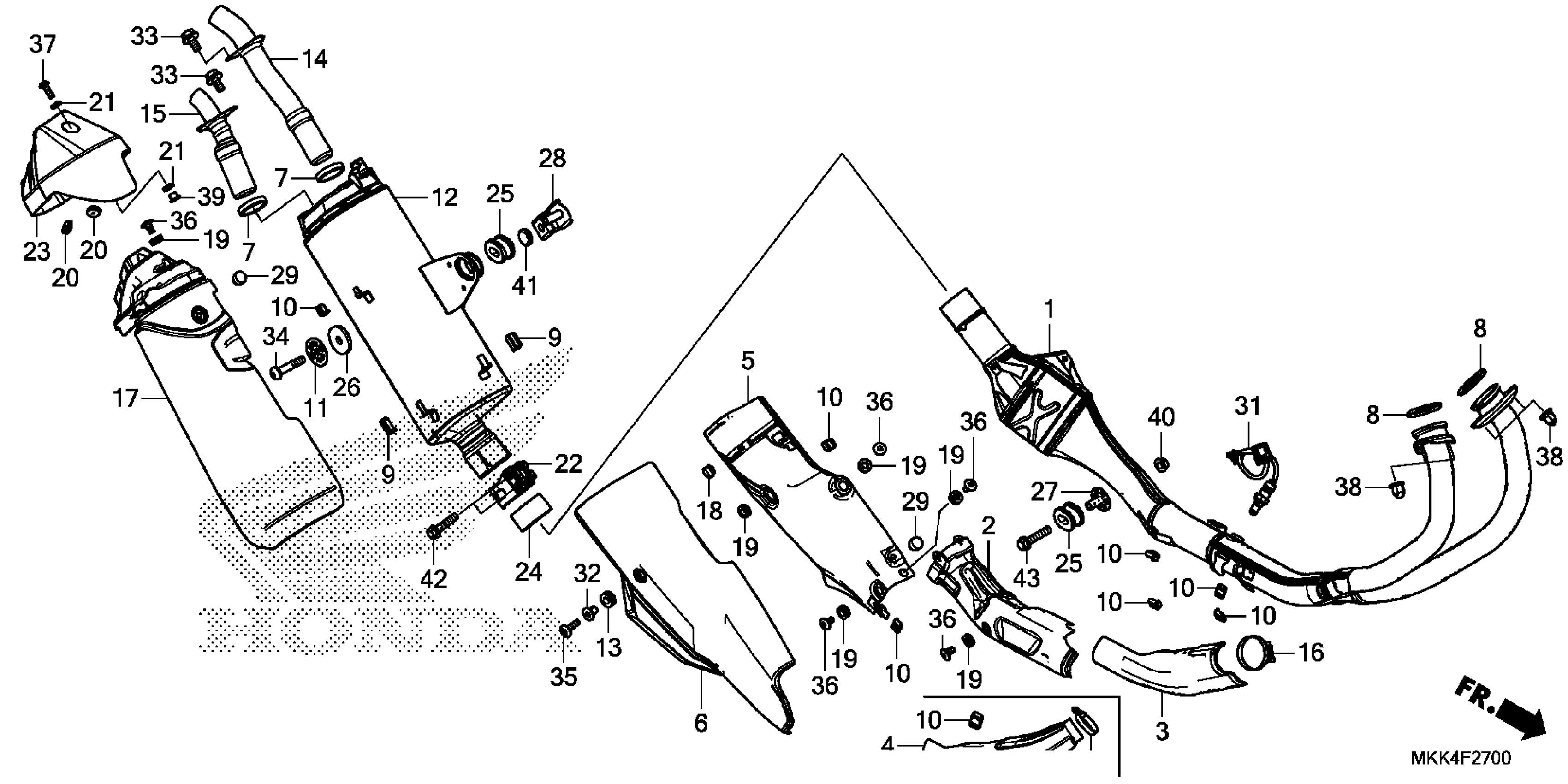

Honda CRF1000A24AC (19) MOTORCYCLE, JPN, VIN# JH2SD044-KK300001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MKK-A00

$1,144.57

2

COVER A, EX. PIPE

18180-MJP-G50

$103.10

4

COVER B, EX. PIPE

18185-MKK-D20

$89.51

5

COVER C, EX. PIPE

18190-MJP-G50

$47.30

6

COVER, EX. PIPE (OUTER)

18240-MJP-G50

$28.01

7

GASKET A, EX. PIPE

18291-KR1-680

$7.80

8

GASKET, EX. PIPE

18291-MM8-880

$6.65

9

RUBBER, PROTECTOR GASKET

18293-MJP-G50

$3.54

10

RUBBER, PROTECTOR

18293-MN0-000

$1.94

11

WASHER (8.5X43)

18309-MJP-G50

$2.97

12

MUFFLER, EX.

18310-MKK-A00

$1,153.83

13

RUBBER, PROTECTOR

18316-KFT-620

$2.26

14

ARRESTER A, SPARK

18317-MJP-A60

$63.97

15

ARRESTER B, SPARK

18318-MJP-A60

$46.61

16

BAND, EX. PROTECTOR

18329-MEN-A30

$13.46

17

COVER, MUFFLER

18340-MJP-G50

$259.43

18

RUBBER, MUFFLER PROTECTOR

18345-KTK-000

$5.41

19

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$1.99

20

RUBBER, PROTECTOR (INNER)

18345-MFJ-D00

$4.20

21

WASHER, RUBBER (8.5X13X2.5)

18365-MEE-D00

$1.75

22

BAND, MUFFLER

18371-MJP-G50

$23.77

23

COVER, TAIL CAP

18380-MJP-G50

$29.80

24

GASKET, MUFFLER

18391-ML0-003

$26.30

25

RUBBER, MUFFLER MOUNTING

18421-MJP-G50

$6.22

26

WASHER, RUBBER

18422-MJP-G50

$3.33

27

COLLAR, EX. PIPE MOUNTING

18423-MGC-N20

$5.81

28

COLLAR, MUFFLER MOUNTING

18423-MJP-G50

$18.68

29

RUBBER, PROTECTOR

18443-MCW-D60

$2.00

30

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.19

31

SENSOR, OXYGEN

36531-MKK-D01

$200.58

32

COLLAR, COVER MOUNTING

83505-KGB-610

$2.58

33

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.48

33

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

34

BOLT, SOCKET (8X45)

90109-MBT-611

$3.45

35

BOLT, SPECIAL (6X22)

90112-MBB-000

$3.22

36

SCREW, PAN (6X12)

90113-GFP-B00

$3.33

37

BOLT, SPECIAL (6X18) (SUS)

90132-MFJ-D00

$2.10

38

NUT, CAP (8MM)

90304-ME1-670

$5.54

39

COLLAR (8.5X7)

90501-GN5-830

$1.94

40

NUT, FLANGE (8MM)

94050-08040

$1.33

41

RUBBER C, STAND STOPPER

95011-63000

$3.64

42

BOLT, FLANGE (8X35)

96400-08035-04

$0.58

43

BOLT, FLANGE (8X40)

96400-08040-04

$1.09
