Description

Price

1

GROMMET, AUDIO BOX

39119-MJG-640

$6.44

2

WASHER, SCREEN SETTING

64205-166-610

$2.21

3

COWL SET, R. MIDDLE (TYPE2) (WL)

64310-MKK-DW0ZA

$526.97

4

COVER SET, R. FR. SI

64320-MKK-D20

$136.00

5

MAT A, FR. SIDE COWL

64322-MKK-D20

$5.36

6

MAT B, FR. SIDE COWL

64323-MKK-D20

$2.75

7

COWL SET, L. MIDDLE (TYPE2) (WL)

64360-MKK-DW0ZA

$526.97

8

COVER SET, L. FR. SI

64370-MKK-D20

$136.00

9

COVER, R. (INNER)

64521-MJP-G50

$17.84

10

COVER, L. (INNER)

64571-MJP-G50

$17.84

11

COVER, FR. TANK

64611-MKK-D20

$22.54

12

COVER, RR. TANK

64712-MKK-D20

$11.79

13

PROTECTOR, RUBBER

77212-MFJ-D00

$1.74

14

NUT, SPECIAL (5MM) (NOT AVAILABLE)

90016-ZA5-000

$3.80

15

BOLT, SPECIAL (6X8)

90106-MKK-D00

$2.92

16

BOLT, SPECIAL (5X8)

90107-MKK-D20

$2.18

17

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

18

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

19

SCREW, PAN (5X20) (SUS)

90118-MJP-G50

$2.33

20

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

21

WASHER, THRUST (5MM)

90504-964-000

$1.90

22

NUT, CLIP (5MM)

90677-KAN-961

$4.07

23

SCREW, TAPPING (4X12)

93903-24380

$1.49

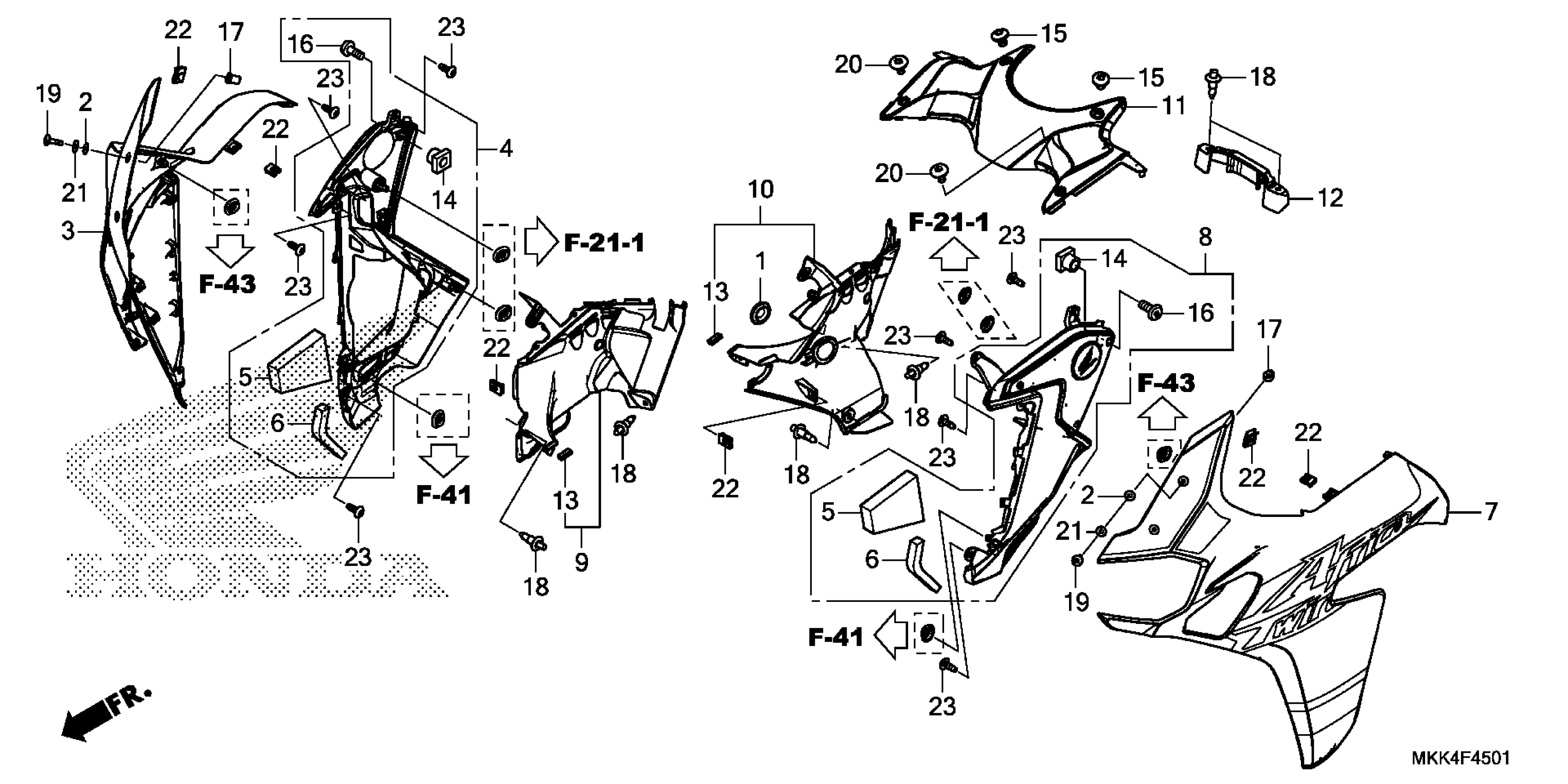

Honda CRF1000A24AC (19) MOTORCYCLE, JPN, VIN# JH2SD044-KK300001 MIDDLE COWL (2) Diagram
