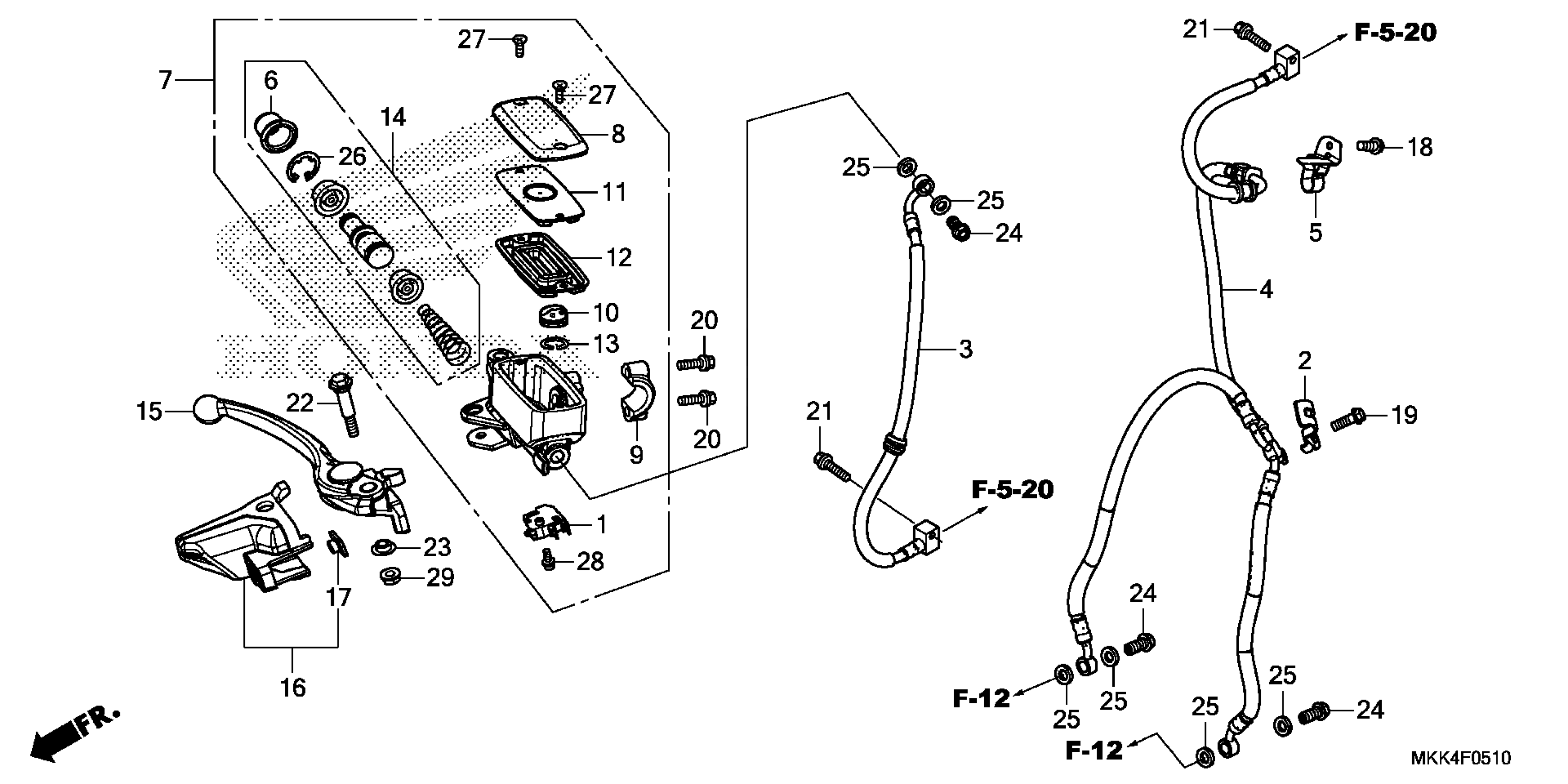

Honda CRF1000A24AC (19) MOTORCYCLE, JPN, VIN# JH2SD044-KK300001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

CLAMP, SENSOR WIRE

38514-MKK-D00

$3.85

3

HOSE A, FR. BRAKE

45125-MKK-D21

$55.11

4

HOSE D, FR. BRAKE

45128-MKK-D01

$128.97

5

CLAMP, FR. BRAKE HOSE

45156-MJP-G50

$10.13

6

BOOT

45504-410-003

$12.16

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MJP-G51

$252.59

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

SEPARATOR

45518-MEN-J01

$7.18

11

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

12

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

13

RING

45523-KA3-731

$2.92

14

MASTER CYLINDER SET

45530-MA4-671

$47.76

15

LEVER ASSY., R. HANDLE

53170-MKK-D01

$50.87

16

HOLDER, R. KNUCKLE

53191-MJP-G60

$16.81

17

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

18

BOLT, FLANGE (6X14)

90021-GHB-630

$2.23

19

BOLT, FLANGE (6X18)

90021-GHB-650

$2.26

20

BOLT, FLANGE (6X22)

90021-GHB-670

$2.18

21

BOLT, FLANGE (6X25)

90021-GHB-680

$2.26

22

BOLT, HANDLE LEVER

90114-MGH-641

$6.90

23

COLLAR (6X4)

90127-KF0-770

$3.42

24

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

25

WASHER, OIL BOLT

90545-300-000

$3.99

26

CIRCLIP

90651-MA5-671

$2.66

27

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

27

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

28

SCREW-WASHER (4X12)

93893-04012-07

$1.49

28

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

29

NUT, FLANGE (6MM)

94050-06000

$1.49
