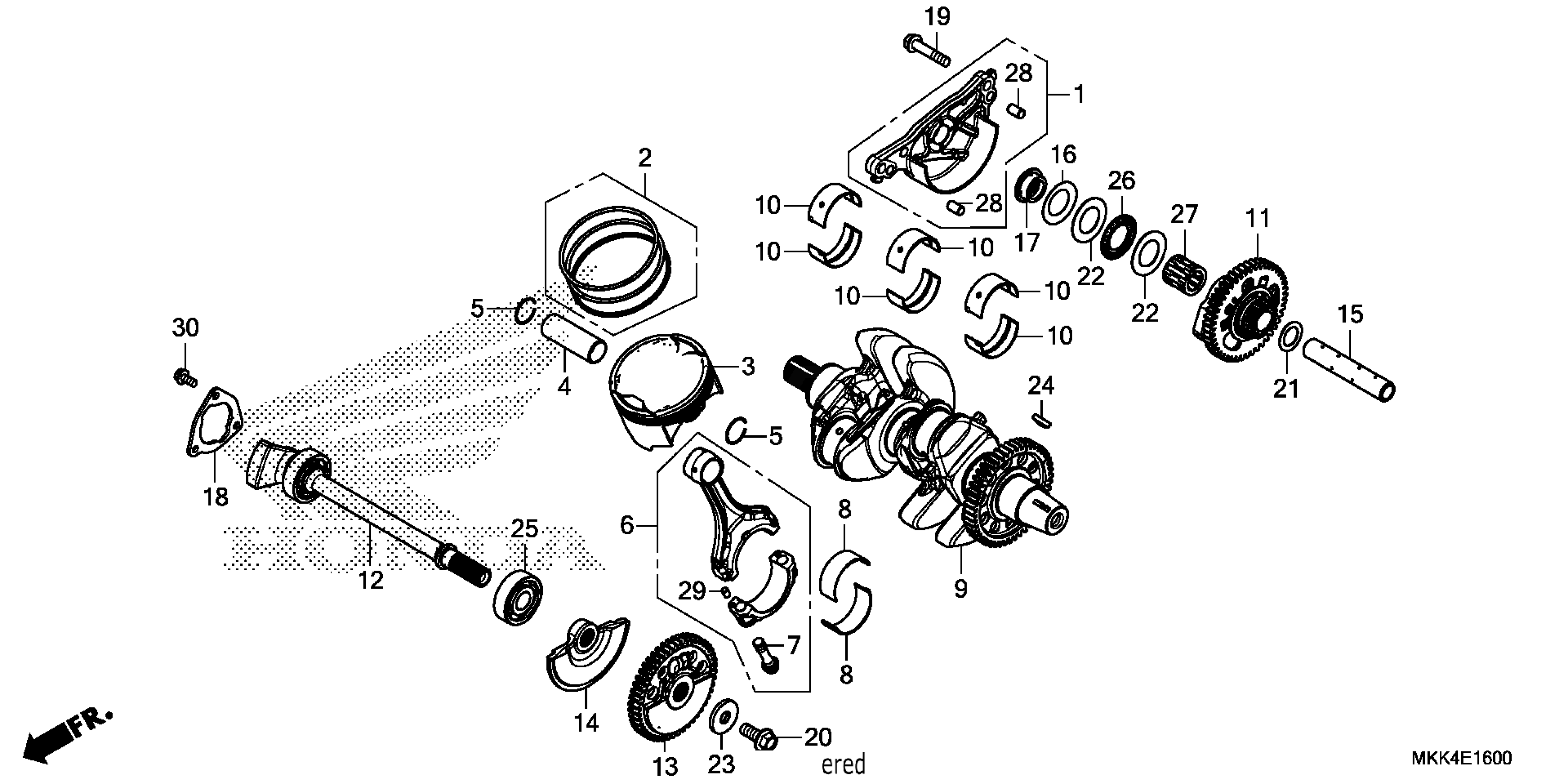

Honda CRF1000A24AC (19) MOTORCYCLE, JPN, VIN# JH2SD044-KK300001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

HOLDER, RR. BALANCER SHAFT

11230-MJP-G50

$75.41

2

RING SET, PISTON (STD)

13011-MJP-305

$59.43

2

RING SET, PISTON (0.25) | (Optional).

13021-MJP-305

$59.43

3

PISTON

13101-MJP-G50

$141.08

3

PISTON (0.25) | (Optional).

13102-MJP-305

$141.08

4

PIN, PISTON

13111-MJP-G50

$21.73

5

CLIP, PISTON PIN (22MM) (Honda Code 1206705)

13112-MC7-000

$2.39

6

ROD ASSY., CONNECTING

13210-MJP-G50

$231.64

7

BOLT, CONNECTING ROD

13213-MJP-G51

$6.57

8

BEARING A, CONNECTING ROD (BLUE)

13214-MJP-G51

$11.93

8

BEARING B, CONNECTING ROD (BLACK)

13215-MJP-G51

$11.93

8

BEARING C, CONNECTING ROD (BROWN)

13216-MJP-G51

$11.93

8

BEARING D, CONNECTING ROD (GREEN)

13217-MJP-G51

$11.93

8

BEARING E, CONNECTING ROD (YELLOW)

13218-MJP-G51

$11.93

9

CRANKSHAFT

13300-MJP-G50

$702.62

10

BEARING A, CRANKSHAFT (BLUE)

13312-MJP-G51

$12.44

10

BEARING B, CRANKSHAFT (BLACK)

13313-MJP-G51

$13.03

10

BEARING C, CRANKSHAFT (BROWN)

13314-MJP-G51

$13.03

10

BEARING D, CRANKSHAFT (GREEN)

13315-MJP-G51

$13.03

10

BEARING E, CRANKSHAFT (YELLOW)

13316-MJP-G51

$12.44

11

GEAR ASSY., RR. BALANCER (45T/20T)

13400-MJP-G50

$434.46

12

SHAFT, FR. BALANCER

13420-MKK-D00

$416.44

13

GEAR ASSY., FR. BALANCER (48T)

13430-MKK-D00

$264.28

14

WEIGHT, L. FR. BALANCER

13433-MJP-DA0

$118.34

15

SHAFT, RR. BALANCER

13445-MJP-G50

$26.54

16

SPRING, RR. BALANCER THRUST

13446-MJP-G50

$15.54

17

COLLAR, RR. BALANCER

13447-MJP-G50

$18.00

18

PLATE, BALANCER BEARING SETTING

13481-MJP-G50

$5.31

19

BOLT, FLANGE (8X40)

90003-MCS-000

$1.93

20

BOLT, SPECIAL (10X25)

90013-MJP-G50

$4.26

21

WASHER (18X27.5X1.0)

90402-MJP-G50

$3.52

22

WASHER (25X42X1.0)

90404-MJP-G50

$4.54

23

WASHER (10.5X31.8)

90405-MFA-D00

$4.13

24

KEY, SPECIAL WOODRUFF (25X18)

90701-KAS-900

$5.58

25

BEARING, RADIAL BALL (17X47X14)

91002-MJP-G53

$42.26

26

BEARING, THRUST NEEDLE (25X42X2)

91005-MJP-G51

$9.64

27

BEARING B, NEEDLE (18X27X26.8) (BLUE)

91015-MJP-G51

$21.51

27

BEARING C, NEEDLE (18X27X26.8) (WHITE)

91016-MJP-G51

$20.59

27

BEARING D, NEEDLE (18X27X26.8) (GREEN)

91017-MJP-G51

$20.59

28

PIN B, DOWEL (8X14)

94302-08140

$2.25

29

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

30

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
