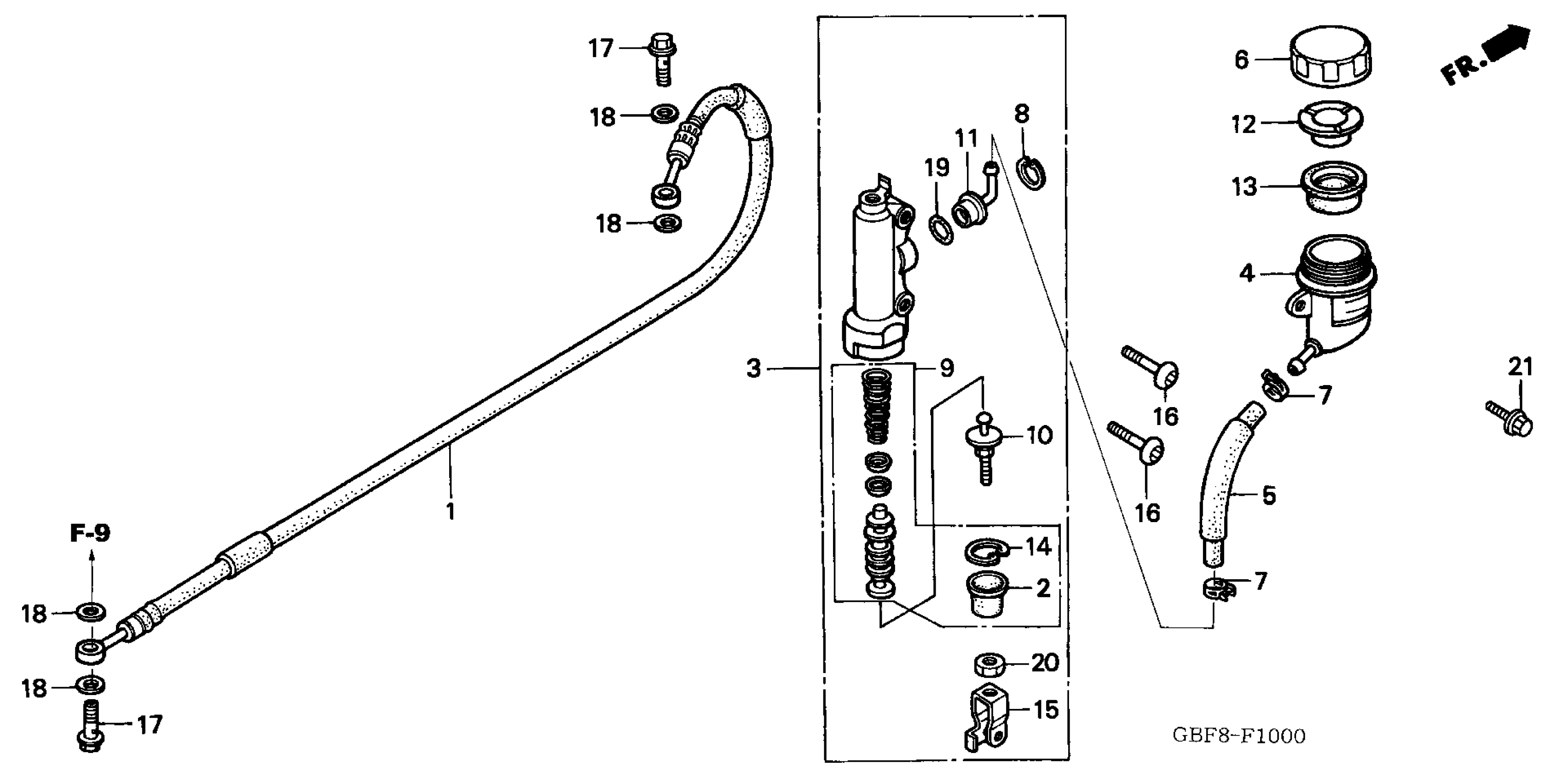

Honda CR85RBA (06) CR85R EXPERT, JPN, VIN# JH2HE073-6K300001 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-GBF-J31

Unavailable

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43510-GBF-831.

43510-GBF-832

Unavailable

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-GBF-832

Unavailable

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.26

HOSE, MASTER CYLINDER

43512-GBF-K41

Unavailable

CAP, MASTER CYLINDER

43513-KS6-701

$13.08

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.55

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

PISTON SET, MASTER CYLINDER

43520-MJ6-315

$40.74

ROD, PUSH

43530-MJ0-006

$18.94

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.44

PLATE, DIAPHRAGM

45518-GM9-711

$4.16

DIAPHRAGM

45520-GM9-711

$8.22

CIRCLIP

46182-500-013

$4.46

JOINT, BRAKE ROD

46504-KV6-702

$7.30

BOLT, RR. MASTER CYLINDER

90109-KZ9-000

$3.66

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

NUT, HEX. (8MM)

94002-08000-0S

$1.19

BOLT, FLANGE (6X14)

96001-06014-00

$1.64
