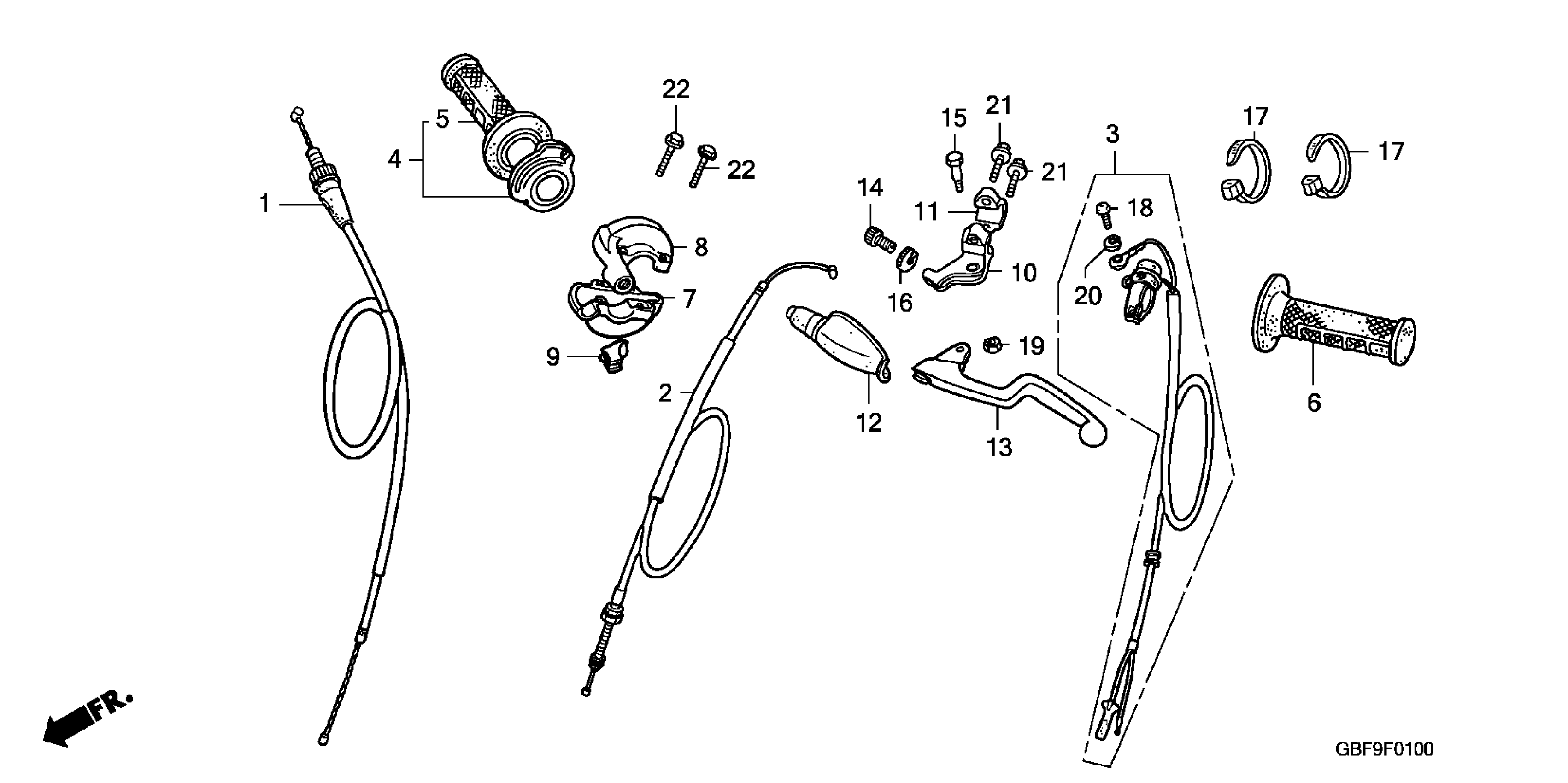

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-GBF-K40

Unavailable

2

CABLE, CLUTCH

22870-GBF-K40

$25.24

3

SWITCH ASSY., STOP

35130-GBF-B40

Unavailable

4

GRIP, THROTTLE

53140-GBF-J60

$21.74

5

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$10.28

6

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$10.28

7

HOUSING A, GRIP

53167-GC4-830

Unavailable

8

HOUSING B, GRIP

53168-GC4-830

Unavailable

9

SLIDER, THROTTLE CABLE

53169-GC4-730

Unavailable

10

BRACKET, L. HANDLE LEVER

53172-KAE-730

$34.90

11

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

12

COVER, L. HANDLE LEVER

53177-430-000

$11.00

13

LEVER, L. HANDLEBAR

53178-KZ4-A10

$22.28

14

BOLT, CLUTCH WIRE ADJUSTING

53192-203-000

$9.10

15

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

16

NUT, FIXING

90321-315-670

$7.31

17

BAND, WIRE

90650-KV6-003

$3.12

18

SCREW, PAN (4X12)

93500-04012-0A

$1.49

18

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

WASHER, SPRING (4MM)

94111-04000

$1.49

21

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

22

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
