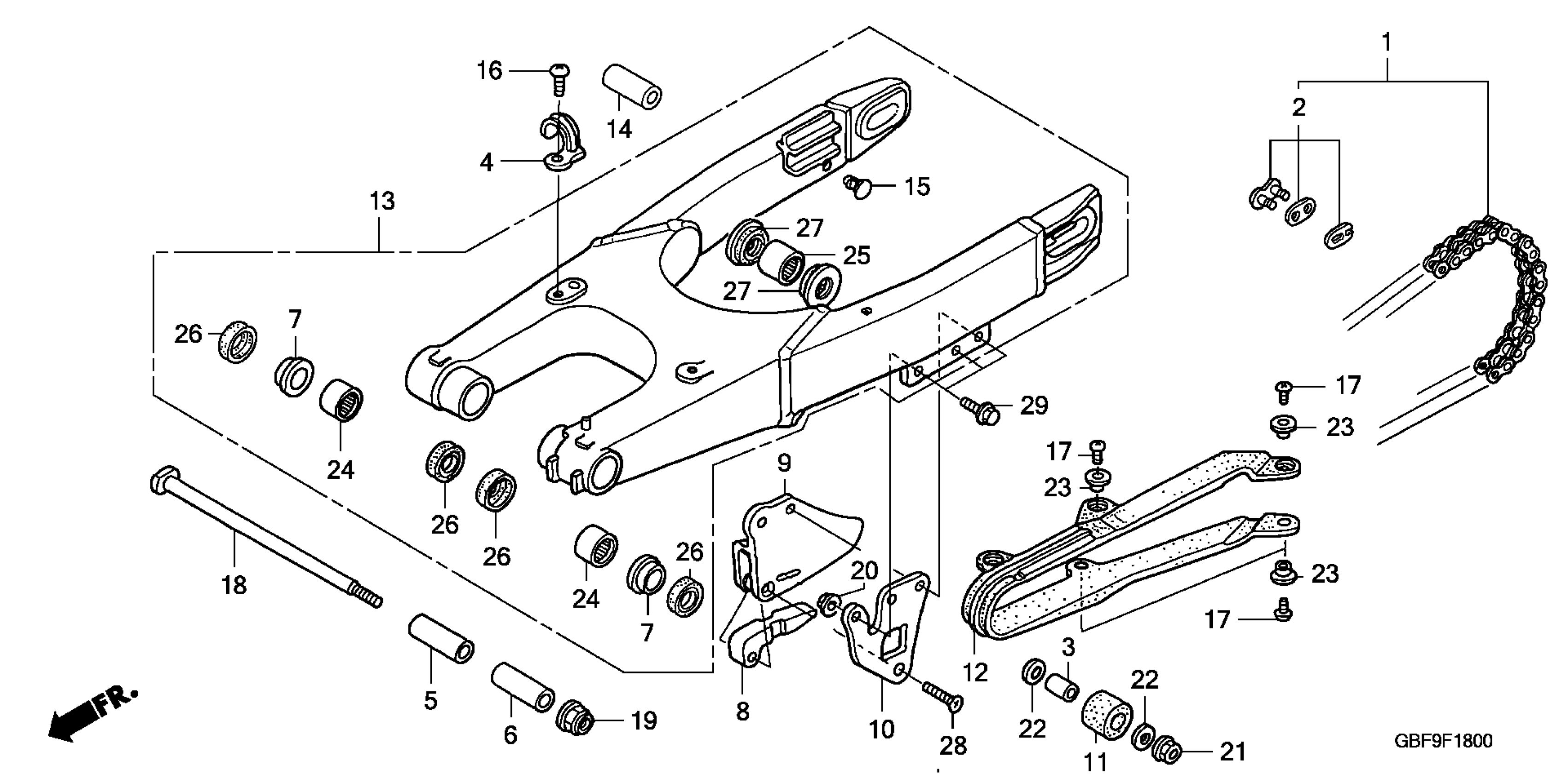

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (RK420 MSZ1-116RJ) (RK EXCEL) (STANDARD LINK 116L)

40530-GBF-K01

Unavailable

1

CHAIN, DRIVE (RK420 MSZ1-130RJ) (RK EXCEL) | (Optional).

40530-GBF-B01

Unavailable

2

MASTER LINK (RK EXCEL)

40531-GM7-641

$3.31

3

COLLAR, LINK

43435-392-000

$5.90

4

GUIDE, RR. BRAKE HOSE

43468-KAE-000

$5.46

5

COLLAR, R. SWINGARM

52141-GBF-J00

$18.95

6

COLLAR, L. SWINGARM

52142-GBF-J00

$16.70

7

COLLAR, THRUST PIVOT

52143-GBF-J00

$6.99

8

SLIDER, CHAIN GUIDE

52147-GM7-701

$14.65

9

GUIDE, CHAIN

52156-GM7-700

$27.81

10

GUIDE, PLATE

52157-GS2-770

Unavailable

11

ROLLER, CHAIN TENSIONER

52158-GBF-830

$17.81

12

SLIDER, CHAIN

52170-GBF-831

$35.42

13

SWINGARM SUB-ASSY., RR.

52200-GBF-J00

Unavailable

14

COLLAR, CUSHION ARM PIVOT

52463-GBF-830

Unavailable

15

PLUG, RR. FENDER

80103-192-600

$4.02

16

SCREW, PAN (5X10)

90104-ML7-920

$2.92

17

SCREW, PAN (5X10)

90115-GBF-K40

Unavailable

18

BOLT, SWINGARM PIVOT

90121-GBF-830

$27.07

19

NUT, FLANGE (14MM)

90201-GC4-000

$4.48

20

NUT, U (6MM)

90301-473-003

$4.07

21

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

21

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

22

WASHER (8MM)

90485-040-000

$1.77

23

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.66

24

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$24.72

25

BEARING, NEEDLE (20X26X20)

91075-GBF-831

Unavailable

26

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

27

DUST SEAL (20X26X4)

91262-GBF-831

$11.93

28

SCREW, FLAT (6X35)

93600-06035-0A

$1.49

29

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
