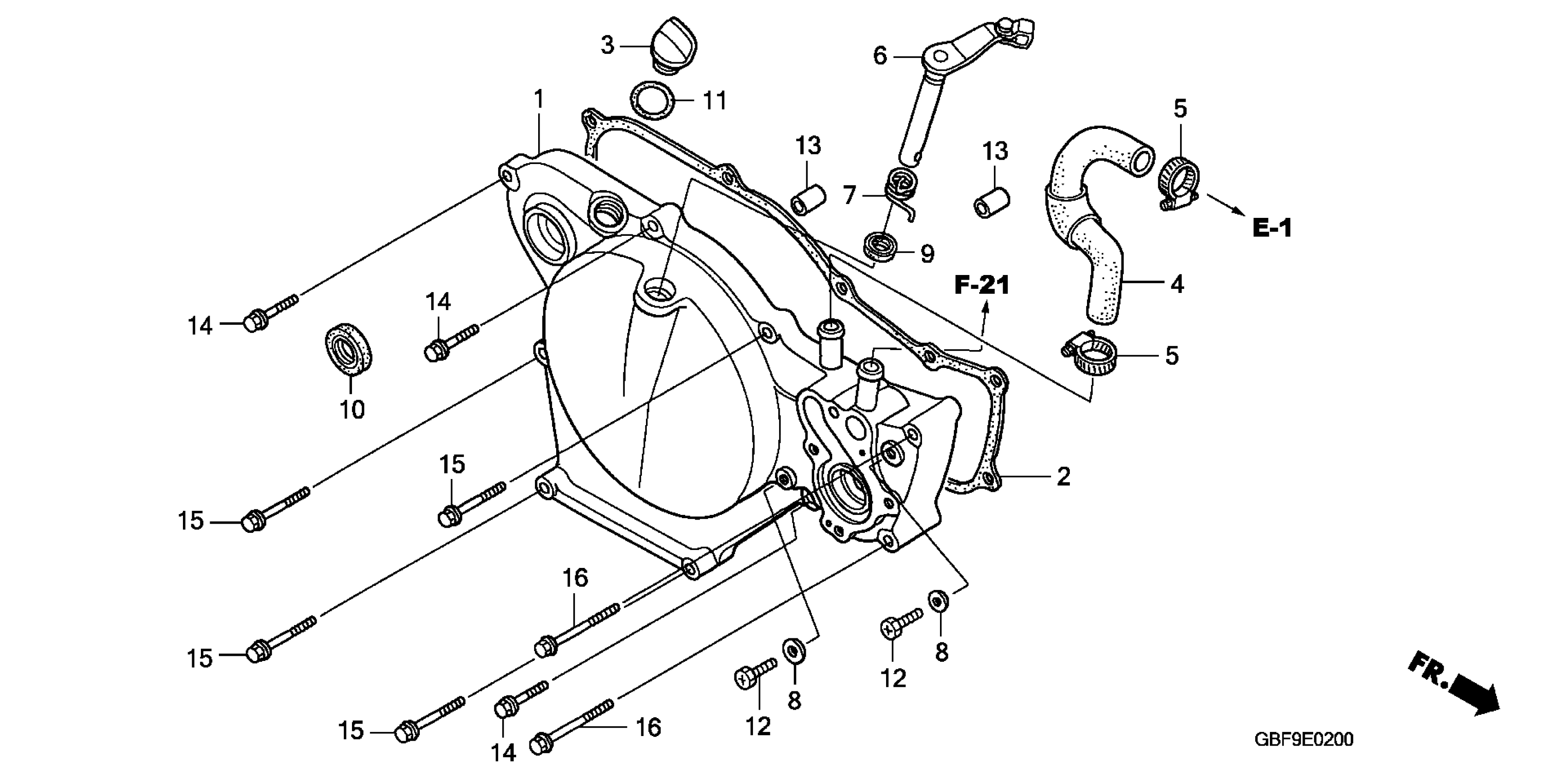

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-GBF-J20

Unavailable

GASKET, R. CRANKCASE COVER

11393-GBF-830

$16.40

CAP, OIL FILLER

15611-KA3-710

$13.62

HOSE, WATER

19501-GBF-B40

Unavailable

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

LEVER, CLUTCH

22810-GBF-B40

Unavailable

SPRING, CLUTCH LEVER

22815-GC4-600

Unavailable

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

OIL SEAL (15X25X6)

91211-671-003

$6.81

O-RING (11.9X2.2)

91370-461-000

$2.39

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
