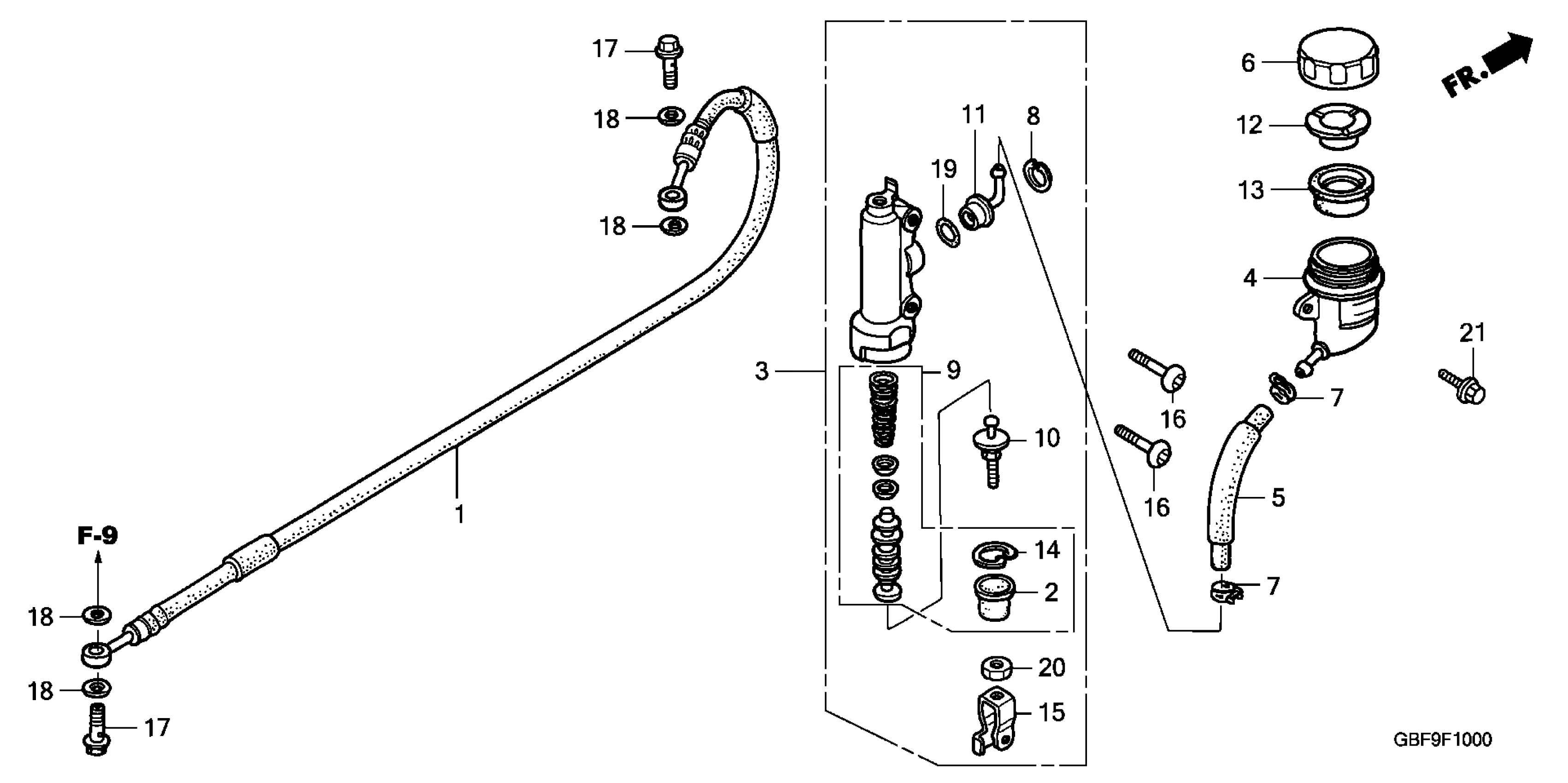

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 REAR BRAKE MASTER CYLINDER Diagram

HOSE, RR. BRAKE

43310-GBF-J21

Unavailable

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43510-GBF-831.

43510-GBF-832

Unavailable

CUP, MASTER CYLINDER OIL

43511-KS6-702

$25.90

HOSE, MASTER CYLINDER

43512-GBF-K41

Unavailable

CAP, MASTER CYLINDER

43513-KS6-701

$14.57

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.81

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$46.73

ROD, PUSH

43530-MJ0-006

$20.80

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$9.39

PLATE, DIAPHRAGM

45518-GM9-711

$4.48

DIAPHRAGM

45520-GM9-711

$9.15

CIRCLIP

46182-500-013

$4.90

JOINT, BRAKE ROD

46504-KV6-702

$7.84

BOLT, RR. MASTER CYLINDER

90109-KZ9-000

$3.92

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

NUT, HEX. (8MM)

94002-08000-0S

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
