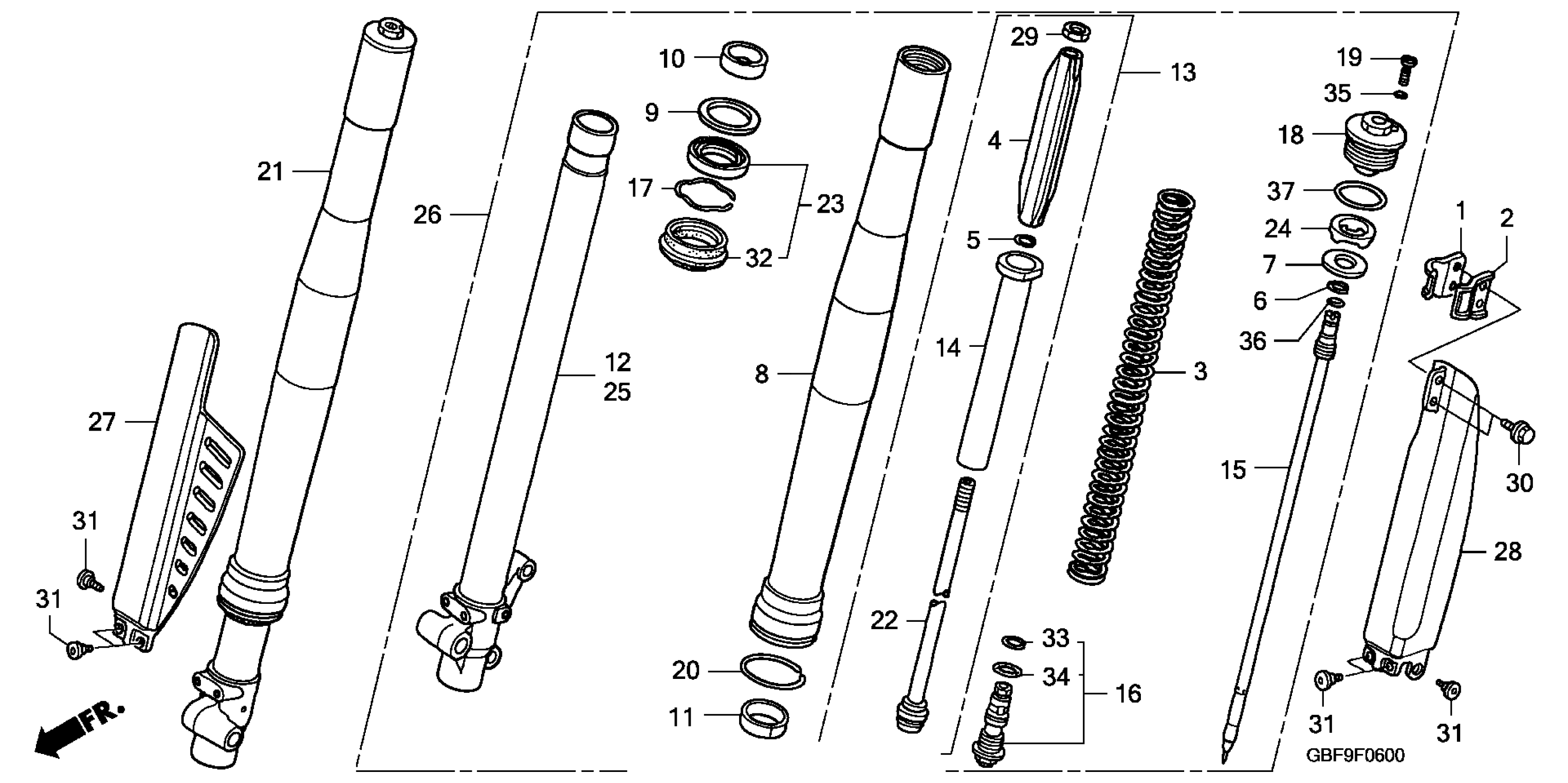

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-GBF-J00

$9.85

2

CLAMP B, FR. BRAKE HOSE

45462-GBF-J00

$8.63

3

SPRING, FR. FORK (2.75N/MM,0.28KGF/MM)

51401-GBF-K41

$50.74

3

SPRING, FR. FORK (2.55N/MM,0.26KGF/MM) | (Optional).

51402-GBF-K41

$62.32

3

SPRING, FR. FORK (2.94N/MM,0.30KGF/MM) | (Optional).

51403-GBF-K41

Unavailable

4

GUIDE, SPRING

51404-GBF-831

$26.12

5

RING, STOPPER

51405-GBF-831

$4.28

6

RING, STOPPER

51405-MC7-003

$2.21

7

SEAT, SPRING

51408-GBF-831

$4.54

8

TUBE (OUTER)

51410-GBF-K21

Unavailable

9

RING, BACK-UP

51412-461-003

$6.72

10

BUSH, GUIDE

51414-GBF-831

$16.68

11

BUSH, SLIDER

51415-GBF-831

$14.65

12

PIPE, R. SLIDE

51420-GBF-K01

$213.62

13

DAMPER, FR.

51430-GBF-K41

$216.50

14

DAMPER SUB, FR.

51431-GBF-J01

$186.75

15

NEEDLE, REBOUND

51436-GBF-J01

$28.60

16

BOLT, CENTER

51441-GBF-K21

Unavailable

17

RING, OIL SEAL STOPPER

51447-KR6-003

$3.61

18

BOLT, FR. FORK

51450-GBF-831

$55.94

19

BOLT, PLUG

51456-KZ3-731

$8.82

20

RING, WEAR

51476-GBF-831

$3.29

21

FORK SUB-ASSY., R. FR.

51480-GBF-K41

Unavailable

22

ROD, PISTON

51481-GBF-K41

Unavailable

23

SEAL SET, FR. FORK

51490-GBF-J21

$22.48

24

RUBBER, STOPPER

51517-GBF-831

$5.91

25

PIPE, L. SLIDE

51520-GBF-K01

Unavailable

26

FORK SUB-ASSY., L. FR.

51580-GBF-K41

Unavailable

27

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51610-GBF-680ZB

$53.01

28

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51620-GBF-680ZB

$53.01

29

NUT, HEX. (10MM)

52482-GBF-831

$2.29

30

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.62

31

BOLT, PROTECTOR

90113-MAC-780

$3.36

32

DUST SEAL

91254-GBF-831

$11.13

33

O-RING (15.5X1.5)

91256-GC5-003

$1.40

34

O-RING (18.8X1.9)

91258-KZ3-B01

$2.51

35

O-RING (2.8X1.9)

91301-KZ3-731

$1.87

36

O-RING

91310-MJ0-003

$2.41

37

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.71
