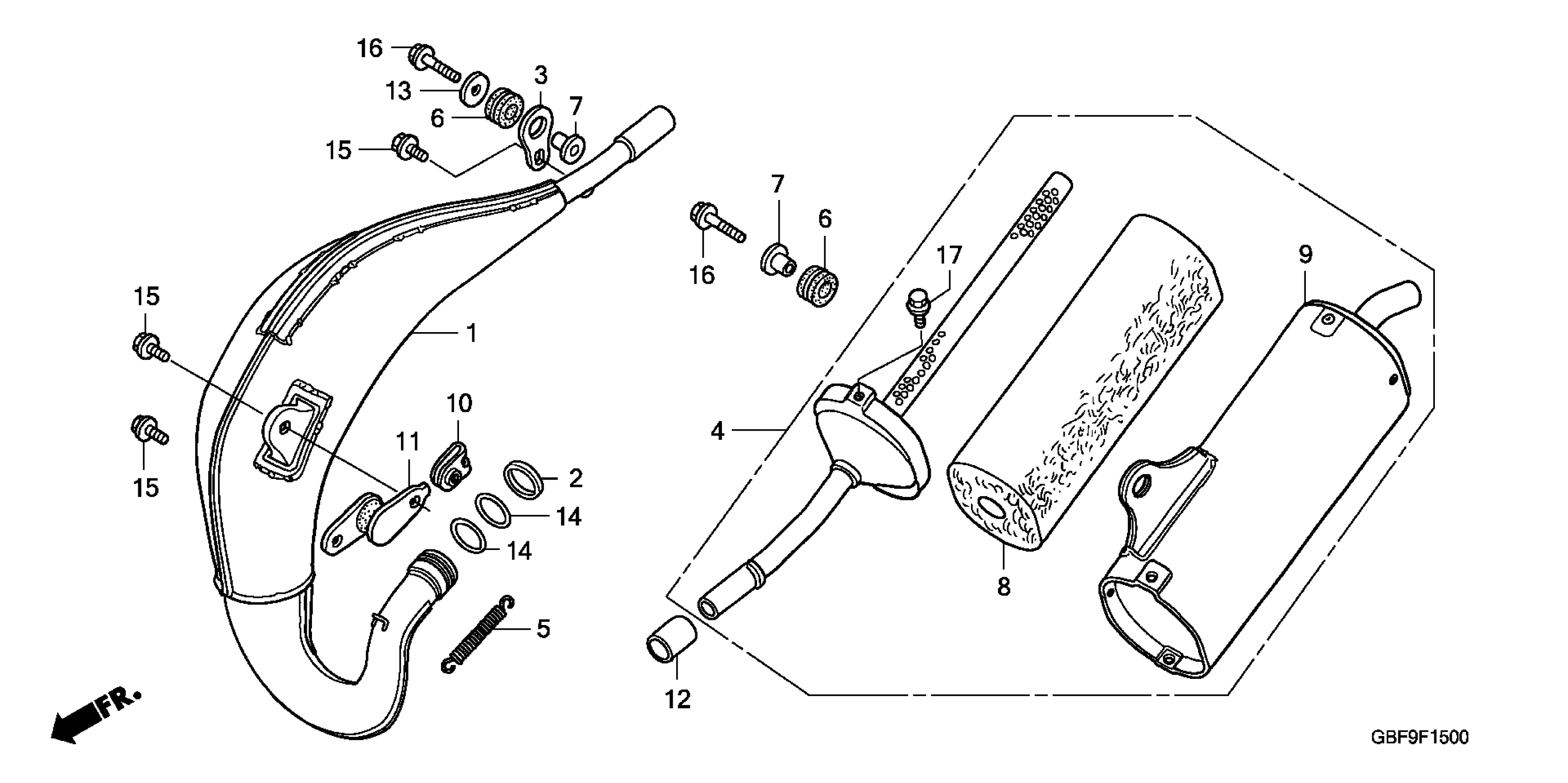

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 EXPANSION CHAMBER Diagram

CHAMBER, EX.

18300-GBF-B40

Unavailable

WASHER (34X39.8)

18309-GBF-K40

$3.49

STAY, RR. CHAMBER

18325-KS6-000

$22.52

MUFFLER

18330-GBF-B00

Unavailable

SPRING, EX. PIPE

18332-KZ3-710

$7.61

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, MUFFLER SETTING

18336-KS6-700

$5.60

WOOL, GLASS

18340-KZ4-860

Unavailable

BODY, MUFFLER

18350-GBF-B00

Unavailable

NUT, CHAMBER SPRING

18354-KS6-000

$4.98

STAY, CHAMBER

18355-KS6-000

$23.32

SEAL, MUFFLER

18361-GBF-830

$11.19

WASHER, FENDER MOUNTING

90506-430-000

$2.92

O-RING (37.5MM)

91304-GBF-K41

$2.33

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

BOLT, FLANGE (6X10) This part replaces 96500-06010-00.

96300-06010-00

$1.49
