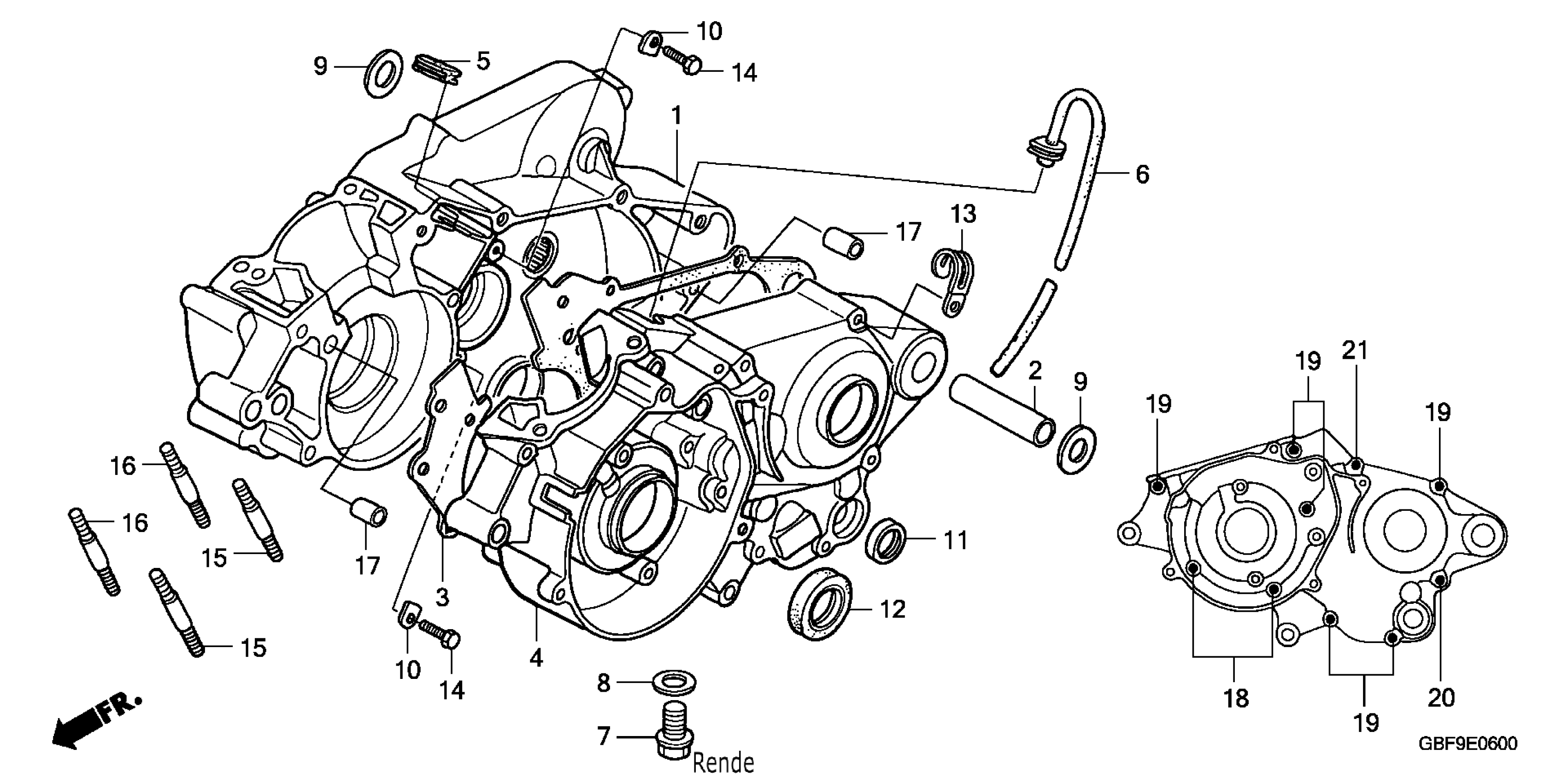

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-GBF-B40

Unavailable

2

COLLAR (17MM)

11104-GC4-000

Unavailable

3

GASKET, CRANKCASE

11191-GBF-830

$10.84

4

CRANKCASE, L.

11200-GBF-B40

Unavailable

5

GROMMET, BREATHER

11206-GC4-700

$2.95

6

TUBE, BREATHER

11211-GC4-701

$8.61

7

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.20

8

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.71

9

WASHER (14.2X30.5)

90412-GC4-600

$3.93

10

PLATE, BEARING HOLDER

90441-KA4-700

$3.19

11

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.62

12

OIL SEAL (20X32X7) (NOK) This part replaces 91205-GC4-711.

91205-166-004

$15.97

12

OIL SEAL (20X32X7) (NOK)

91205-166-004

$15.97

13

CLIP (2X70)

91413-679-000

$8.51

14

BOLT, HEX. (6X16)

92101-06016-0A

$1.47

15

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.80

15

BOLT, STUD (8X32)

92900-08032-0E

$2.80

16

BOLT, STUD (8X55) This part replaces 92700-08055-0E.

92900-08040-0E

$2.80

16

BOLT, STUD (8X55)

92900-08040-0E

$2.80

17

PIN, DOWEL (8X20)

94301-08200

$2.76

18

BOLT, FLANGE (6X35)

96001-06035-00

$1.29

19

BOLT, FLANGE (6X55)

96001-06055-00

Unavailable

20

BOLT, FLANGE (6X60)

96001-06060-00

$2.69

21

BOLT, FLANGE (6X70)

96001-06070-00

$1.81
