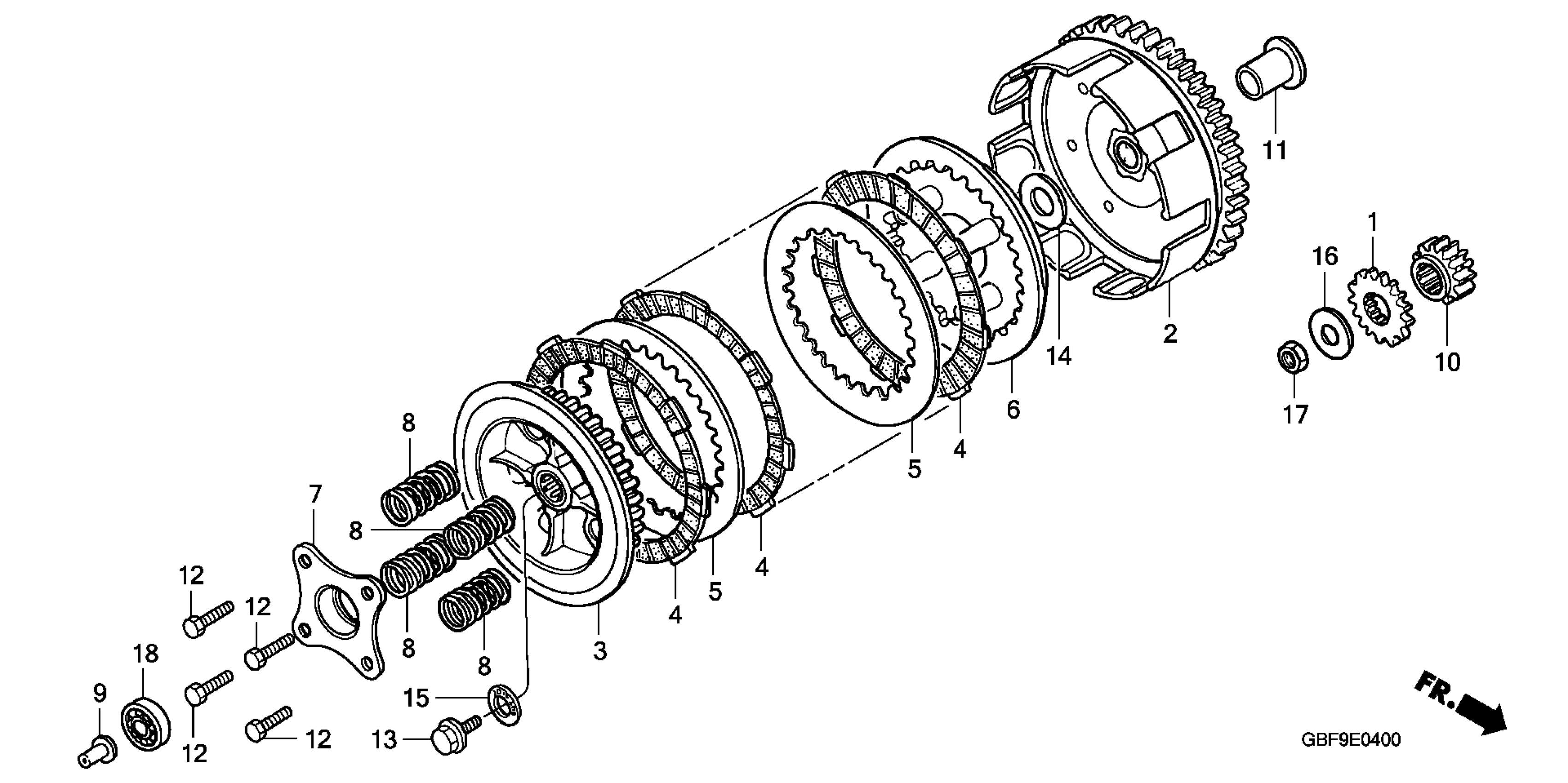

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 CLUTCH Diagram

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).

06001-GBF-000

$123.20

GEAR, WATER PUMP DRIVEN (20T/16T)

19233-GC4-730

$79.69

CLUTCH (OUTER)

22100-GC4-600

Unavailable

CENTER, CLUTCH

22121-GBF-830

Unavailable

DISK, CLUTCH FRICTION

22201-GBF-B40

$11.53

PLATE, CLUTCH

22311-KN4-680

$6.31

PLATE, CLUTCH PRESSURE

22350-GS2-000

$34.08

PLATE, CLUTCH LIFTER

22361-166-000

Unavailable

SPRING, CLUTCH

22401-GBF-830

$4.17

ROD, CLUTCH LIFTER

22847-166-000

$12.56

GEAR, PRIMARY DRIVE (17T/16T)

23121-GC4-710

Unavailable

COLLAR (17X32.5)

28242-GC4-600

Unavailable

BOLT, HEX. (6X25)

90001-HN0-670

$2.25

BOLT, HEX. (10X28)

90002-GC4-710

$5.66

WASHER, PLAIN (17MM)

90401-GC4-730

$6.45

WASHER, PLAIN (10X22)

90403-GBF-830

Unavailable

WASHER, SPRING (12MM)

90404-GS2-000

$9.56

NUT, HEX. (12MM)

94001-12200-0S

$1.49

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
