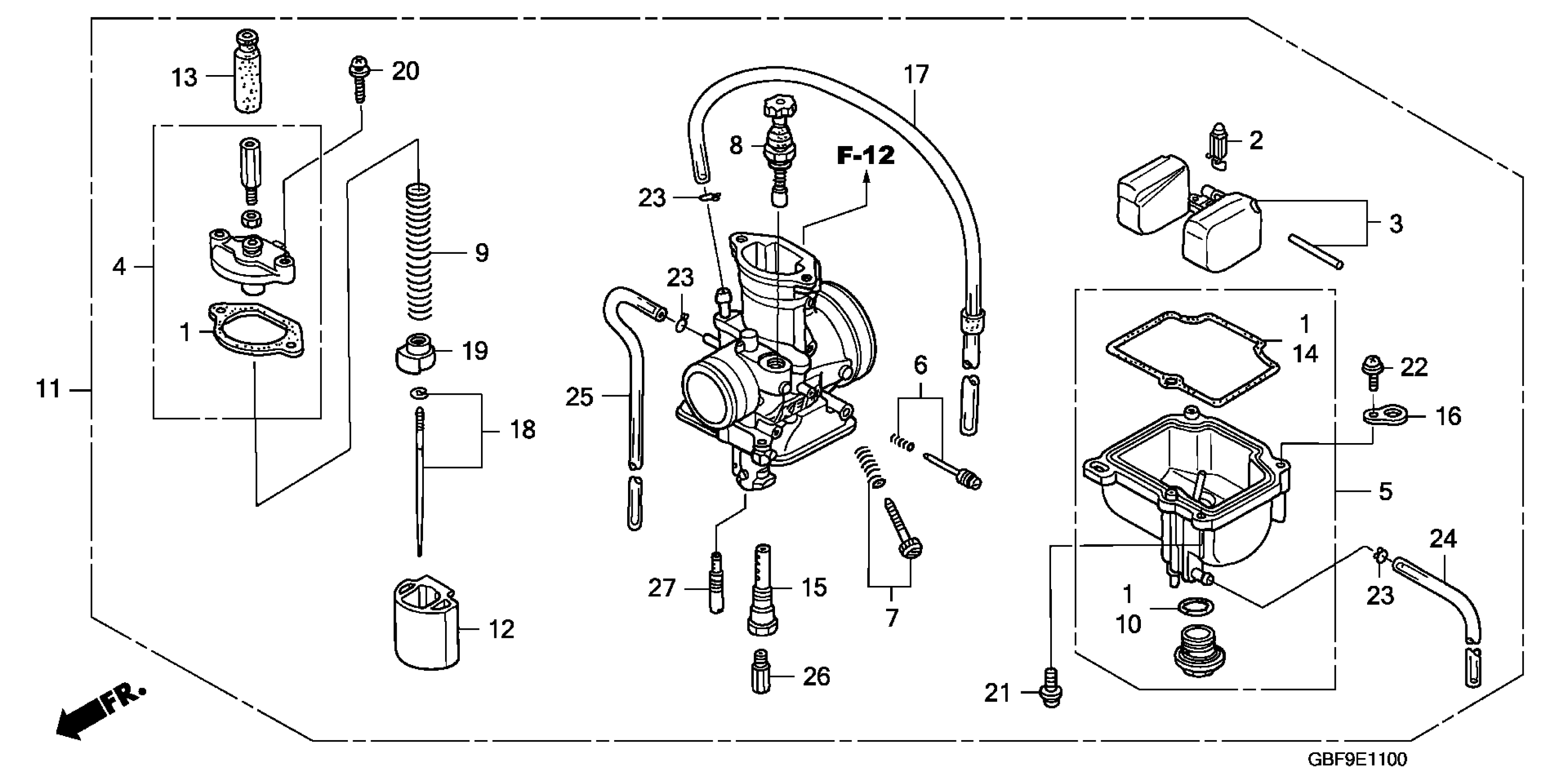

Honda CR85RA (07) CR85R, JPN, VIN# JH2HE07C-7K400001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GBF-B41

Unavailable

2

VALVE SET, FLOAT

16011-GBF-B41

$36.72

3

FLOAT SET

16013-GBF-840

Unavailable

4

TOP SET

16014-GBF-B41

Unavailable

5

CHAMBER SET, FLOAT

16015-GBF-B41

$81.84

6

SCREW SET

16016-HA2-004

Unavailable

7

SCREW SET B

16028-KZ3-J11

Unavailable

8

VALVE SET, STARTER

16046-KZ3-J11

Unavailable

9

SPRING, COMPRESSION COIL

16050-GBF-B41

Unavailable

10

O-RING (2.4X18.6)

16075-GHB-B00

$4.67

11

CARBURETOR ASSY. (PWK10A B)

16100-GBF-B42

$253.95

12

VALVE, THROTTLE

16111-GBF-B41

Unavailable

13

CAP, CABLE SEALING This part replaces 16118-GHB-600.

16118-166-004

$8.08

14

GASKET, FLOAT CHAMBER

16163-GBF-B41

Unavailable

15

HOLDER, NEEDLE JET

16168-GBF-B41

Unavailable

16

BINDER (NOT AVAILABLE) This part replaces 16179-428-670.

16179-428-671

Unavailable

17

TUBE, VINYL

16199-GBF-840

Unavailable

18

NEEDLE SET, JET (NFSF)

16202-GBF-B41

$23.38

19

PLATE, NEEDLE CLIP

16212-GBF-B41

$8.03

20

SCREW-WASHER (4X14)

90001-GBF-B41

$3.60

21

SCREW-WASHER (4X16)

90002-GBF-B41

Unavailable

22

SCREW-WASHER (4X8)

93892-04008-08

$1.49

22

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

23

CLIP, TUBE (B7)

95002-02079

$1.49

24

BULK HOSE, VINYL (4X7X8000) (4X7X300)

95003-07008-60M

$24.47

25

BULK HOSE, VINYL (4X7X8000) (4X7X380)

95003-07008-60M

$24.47

26

JET, MAIN (#142)

99101-357-1420

$8.55

27

JET, SLOW (#40) | (Optional).

99103-GBF-0400

$13.18

27

JET, SLOW (#42) | (Optional). This part replaces 99103-GBF-0420.

99103-440-0420

$13.18

27

JET, SLOW (#45)

99103-GBF-0450

$14.02

27

JET, SLOW (#48) | (Optional).

99103-GBF-0480

$14.59

27

JET, SLOW (#50) | (Optional). This part replaces 99103-GBF-0500.

99103-440-0500

$15.48
