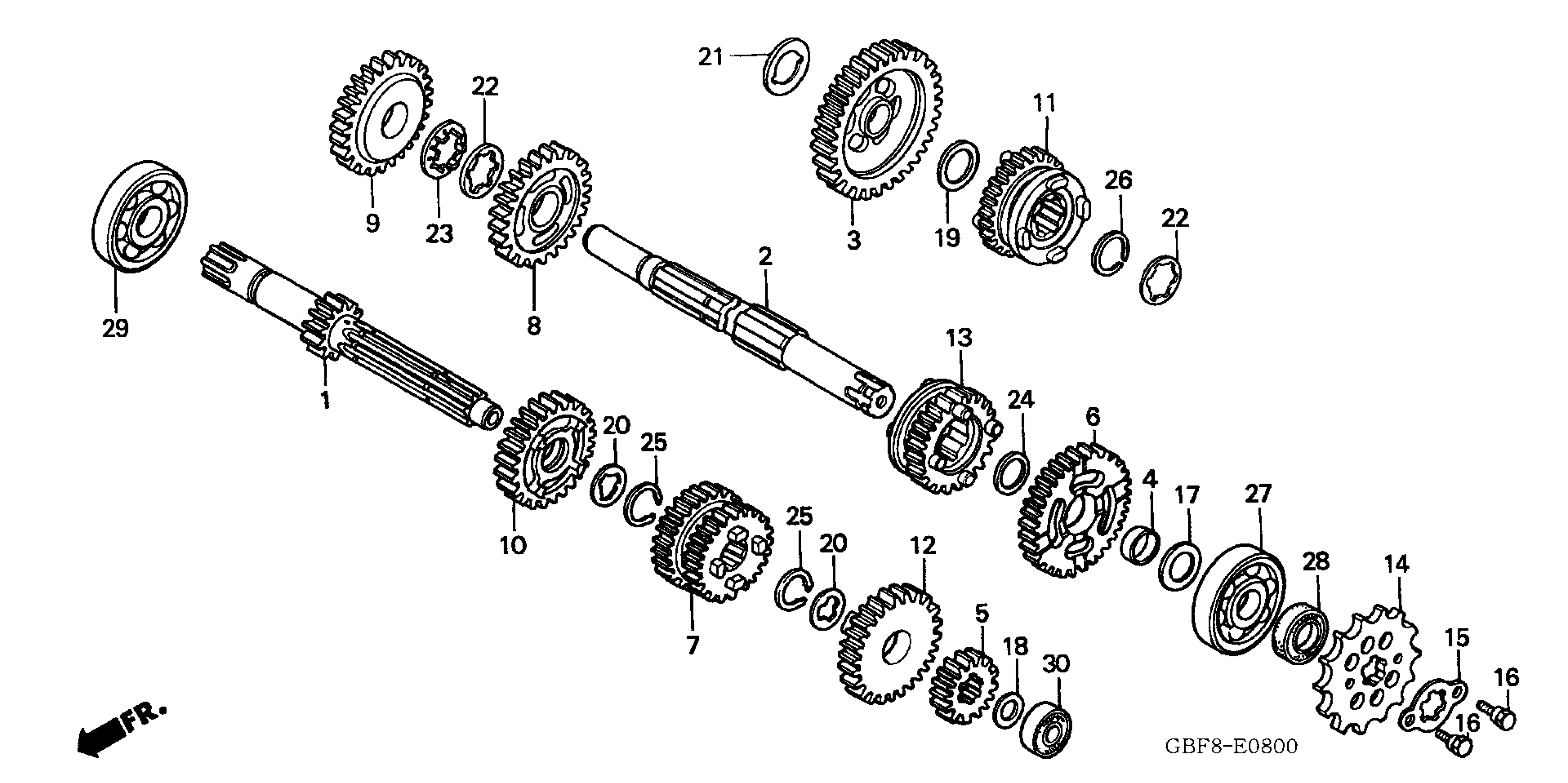

Honda CR85RA (06) MOTORCYCLE, JPN, VIN# JH2HE07C-6K300001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23211-GBF-830

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-GC4-600

Unavailable

3

GEAR, COUNTERSHAFT LOW (34T)

23420-GBF-B40

Unavailable

4

BUSH (17MM)

23431-166-600

Unavailable

5

GEAR, MAINSHAFT SECOND (18T)

23441-GC4-730

$65.41

6

GEAR, COUNTERSHAFT SECOND (31T)

23451-GBF-B40

Unavailable

7

GEAR, MAINSHAFT THIRD & FOURTH (20T/23T)

23461-GBF-B40

$103.26

8

GEAR, COUNTERSHAFT THIRD (28T)

23471-GBF-B40

$45.88

9

GEAR, COUNTERSHAFT FOURTH (27T)

23481-GC4-600

$57.32

10

GEAR, MAINSHAFT FIFTH (24T)

23491-GBF-B40

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (25T)

23501-GBF-B40

Unavailable

12

GEAR, MAINSHAFT SIXTH (25T)

23511-GBF-B40

Unavailable

13

GEAR, COUNTERSHAFT SIXTH (23T)

23515-GBF-B40

Unavailable

14

SPROCKET, DRIVE (15T) This part replaces 23800-GC4-600.

23800-GCF-A20

$17.90

15

PLATE, DRIVE SPROCKET FIXING

23802-GC4-601

$4.85

16

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.29

17

WASHER, THRUST (17.2MM)

90446-357-000

$3.35

18

WASHER, THRUST (12MM)

90452-166-600

$2.17

19

WASHER, THRUST (16.5MM)

90452-437-000

$3.16

20

WASHER, SPLINE (17MM)

90461-115-000

$2.42

21

WASHER, THRUST (15MM)

90463-166-000

Unavailable

22

WASHER A, SPLINE (19MM)

90464-166-000

$3.77

23

WASHER, LOCK (19MM)

90465-166-600

$4.01

24

WASHER, THRUST (17MM)

90466-166-600

$3.17

25

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

26

CIRCLIP (19MM)

90602-166-010

$3.10

27

BEARING, RADIAL BALL (6303)

91007-GC4-701

$30.07

28

OIL SEAL (17X28X7) (ARAI)

91201-415-013

$5.14

29

BEARING, RADIAL BALL (6203)

96120-62030-00

$15.88

30

BEARING, RADIAL BALL (6001)

96140-60010-00

$11.22
