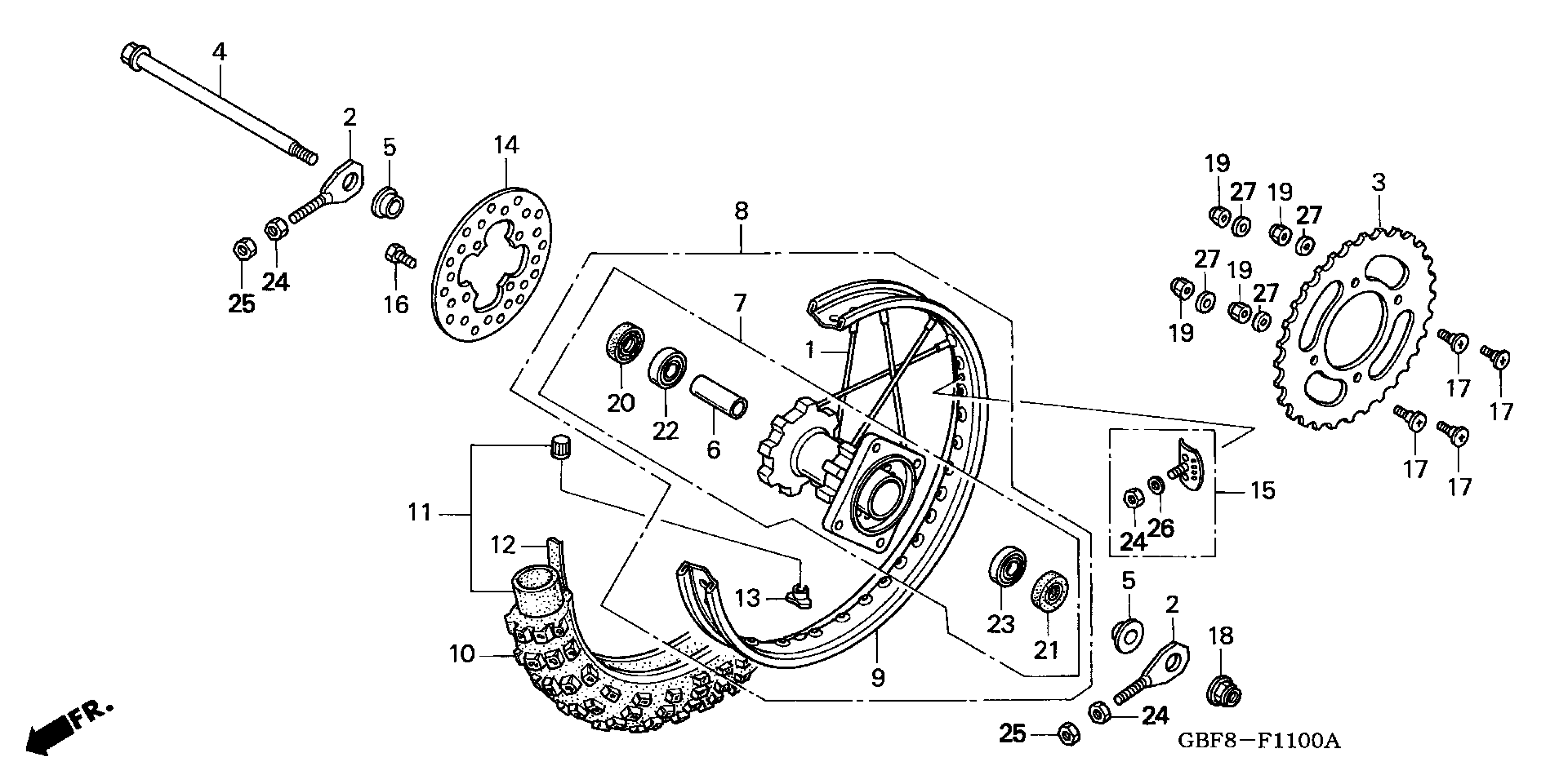

Honda CR85RA (06) MOTORCYCLE, JPN, VIN# JH2HE07C-6K300001 REAR WHEEL Diagram

#

Description
Price

1

SPOKE SET A, RR.

06420-GBF-830

$4.15

2

ADJUSTER, CHAIN

40543-GBF-830

$15.88

3

SPROCKET, FINAL (50T) (SUNSTAR) | (Optional).

41201-GBF-K00

$110.59

3

SPROCKET, FINAL (48T) (SUNSTAR) | (Optional).

41201-GBF-K40

$102.80

3

SPROCKET, FINAL (49T) (SUNSTAR)

41201-GBF-830

$110.59

4

AXLE, RR. WHEEL

42301-GBF-J00

$21.27

5

COLLAR, RR. WHEEL

42311-GBF-830

$14.57

6

COLLAR, RR. AXLE DISTANCE

42620-GBF-830

Unavailable

7

HUB SUB-ASSY., RR. WHEEL

42635-GBF-830

Unavailable

8

WHEEL SUB-ASSY., RR. This part replaces 42650-GBF-830.

42650-GBF-831

Unavailable

8

WHEEL SUB-ASSY., RR.

42650-GBF-831

Unavailable

9

RIM, RR. WHEEL This part replaces 42701-GBF-831.

42701-GBF-832

Unavailable

10

TIRE, RR. (90/100-14 49M K695) (DUNLOP)

42711-GBF-701

Unavailable

11

TUBE, TIRE (90/100-14) (DUNLOP)

42712-GS2-701

$29.79

12

FLAP, TIRE (1.60X14) (DUNLOP)

42713-GS2-701

$7.97

13

CAP, VALVE

42714-KA3-710

$10.46

14

DISK, RR. BRAKE

43351-GS2-600

Unavailable

15

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

16

BOLT, DISK (6X17)

90105-KAE-870

$2.92

17

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

18

NUT, U (14MM)

90305-GE8-003

$3.86

19

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.35

20

DUST SEAL (32X21X5.5) (ARAI)

90745-GC4-702

$5.05

21

OIL SEAL (21X35X7)

90752-GB4-681

$4.26

22

BEARING, RADIAL BALL (6002-SH)

91073-GBF-831

$26.12

23

BEARING, RADIAL BALL (6202-SH)

91074-GBF-831

$24.92

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

NUT, HEX. (8MM)

94002-08000-0S

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

WASHER (8MM)

90465-MC4-000

$2.51
