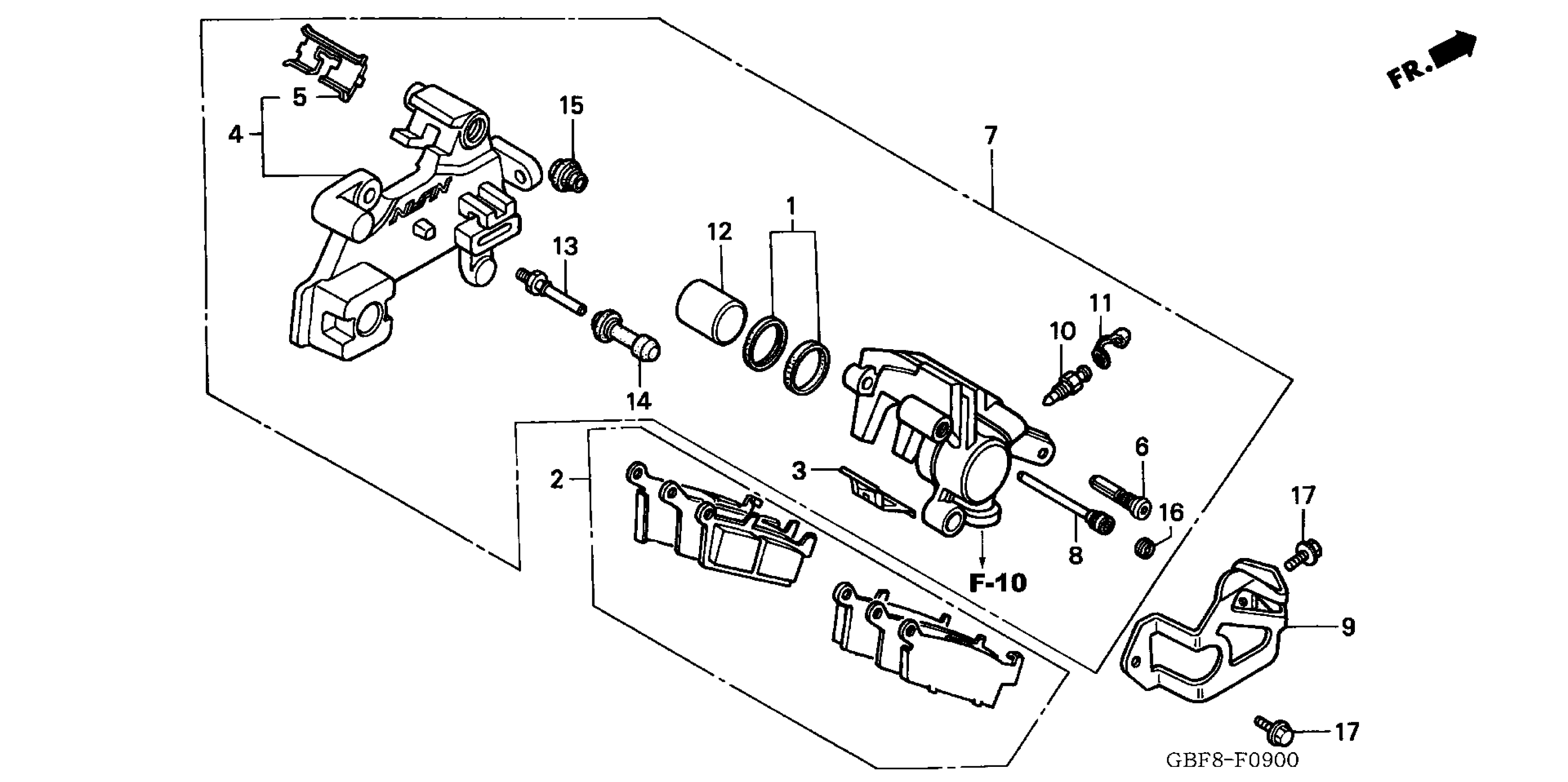

Honda CR85RA (06) MOTORCYCLE, JPN, VIN# JH2HE07C-6K300001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$6.82

PAD SET, RR. BRAKE This part replaces 43105-KZ1-405.

43105-KZ1-415

$33.55

SPRING, PAD

43108-MY6-671

$4.92

BRACKET, RR. (NISSIN)

43110-GS2-601

Unavailable

RETAINER

43112-GT4-006

$6.42

BOLT, PIN

43131-KW3-006

$9.24

CALIPER SUB-ASSY., RR. BRAKE

43150-GS2-305

Unavailable

PIN, HANGER

43215-ML3-911

$10.49

GUARD, RR. CALIPER

43340-KS6-831

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

PISTON

45107-MN4-016

$31.67

BOLT, PIN

45131-166-016

$7.10

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

PLUG, PIN

45203-MG3-016

$4.76

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
