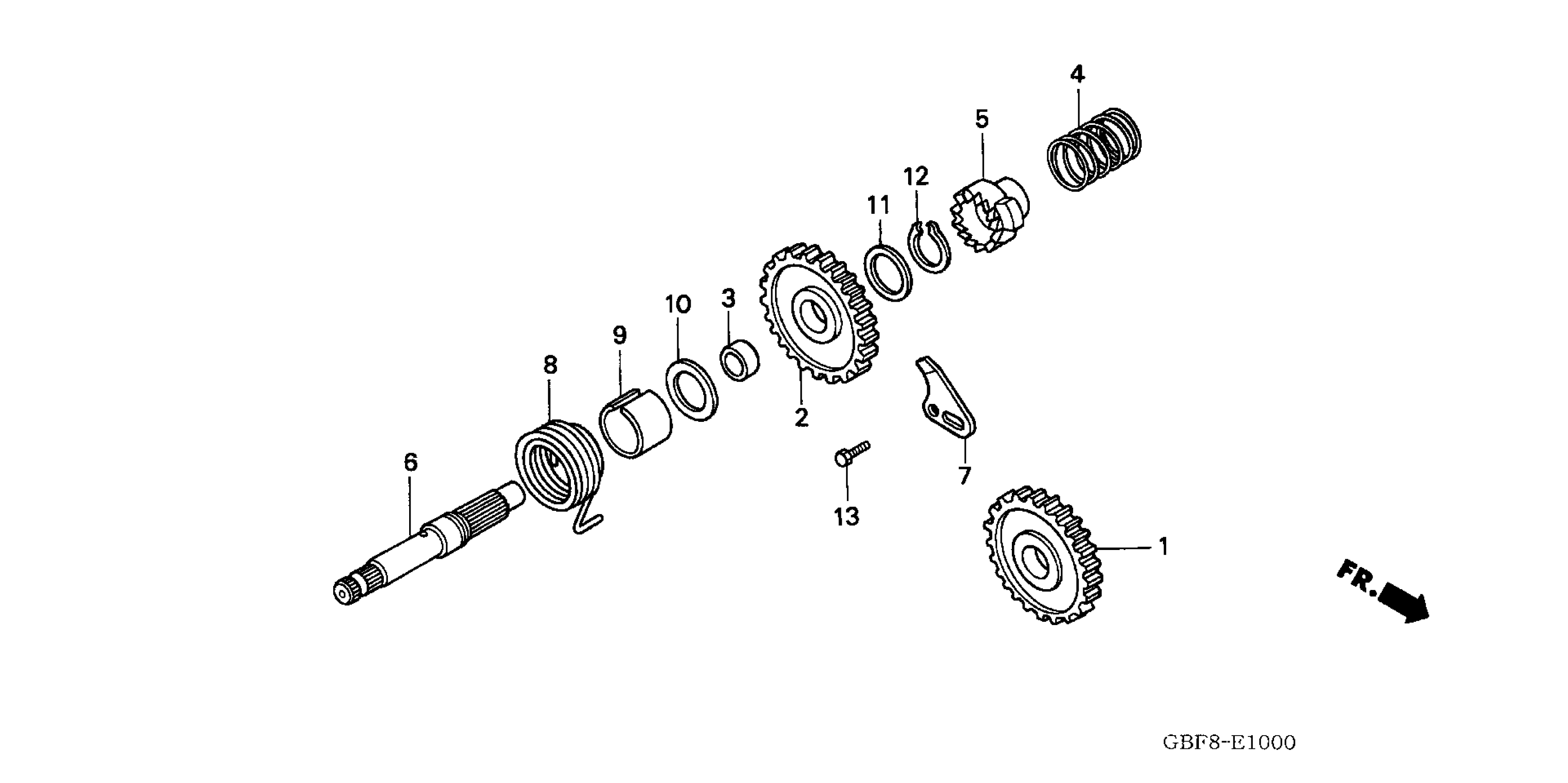

Honda CR85RA (06) MOTORCYCLE, JPN, VIN# JH2HE07C-6K300001 KICK STARTER SPINDLE Diagram

#

Description
Price

1

GEAR, IDLE STARTER (23T)

23531-GC4-600

Unavailable

2

PINION, KICK STARTER (25T)

28211-GC4-600

Unavailable

3

BUSH (17MM)

28212-GC4-700

Unavailable

4

SPRING, RATCHET

28223-GC4-700

Unavailable

5

RATCHET, STARTER

28241-KA3-710

$68.69

6

SPINDLE, KICK STARTER

28251-GC4-700

Unavailable

7

PLATE, RATCHET GUIDE

28259-GC4-700

Unavailable

8

SPRING, KICK STARTER

28281-GC4-700

Unavailable

9

COLLAR, KICK SPRING

28282-GC4-600

Unavailable

10

WASHER, THRUST (15MM)

90412-187-000

$2.05

11

WASHER, THRUST (17.2X22X1)

90452-GC4-700

$5.59

12

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

13

BOLT, HEX. (6X16)

93301-06016-0A

$1.49
