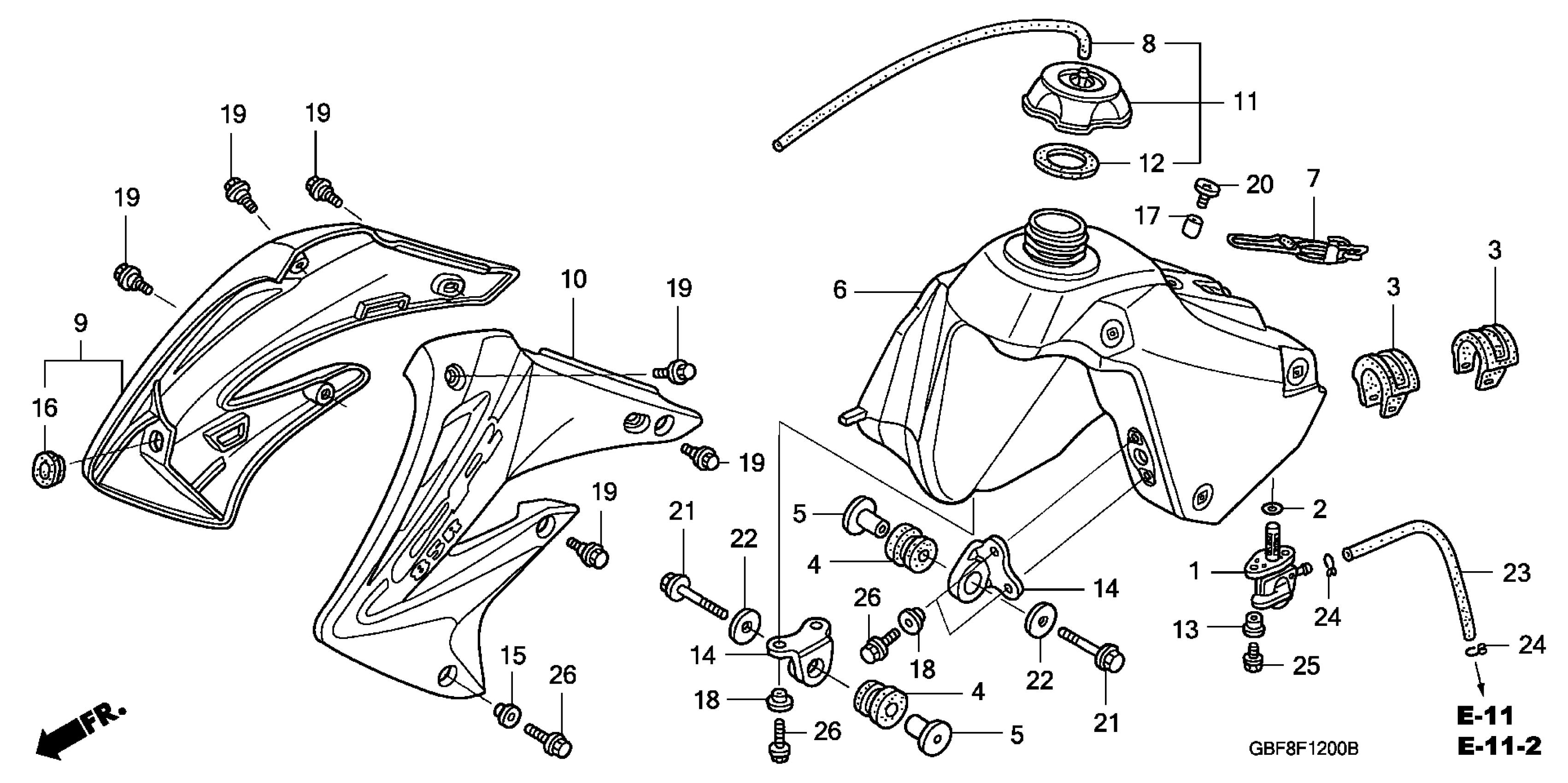

Honda CR85RA (06) MOTORCYCLE, JPN, VIN# JH2HE07C-6K300001 FUEL TANK Diagram

PETCOCK ASSY.

16950-GS2-911

$39.22

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK SETTING

17504-GC4-830

$12.84

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

COLLAR, TANK SETTING

17509-KS6-700

$9.13

TANK, FUEL

17510-GBF-K20

Unavailable

BAND, RR. TANK

17516-GBF-830

$31.28

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

SHROUD SET, R. TANK (TYPE1) (WL)

17545-GBF-B60ZA

Unavailable

SHROUD SET, L. TANK (TYPE1) (WL)

17555-GBF-B60ZA

Unavailable

CAP ASSY., FUEL TANK

17620-ML3-600

$38.43

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

BRACKET, FR. FUEL TANK

17634-KZ3-860

$14.53

COLLAR, FR. WHEEL COVER

44125-MN5-000

$5.12

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.99

COLLAR, BATTERY (LOWER)

83607-356-000

$2.92

COLLAR

84706-415-000

$2.23

BOLT, FLANGE (6MM)

90113-GF0-000

$4.24

SCREW, COWL SETTING (LOWER)

90124-MM9-000

$4.08

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

WASHER, FENDER MOUNTING

90506-430-000

$2.92

TUBE, FUEL

17681-GBF-K40

Unavailable

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
