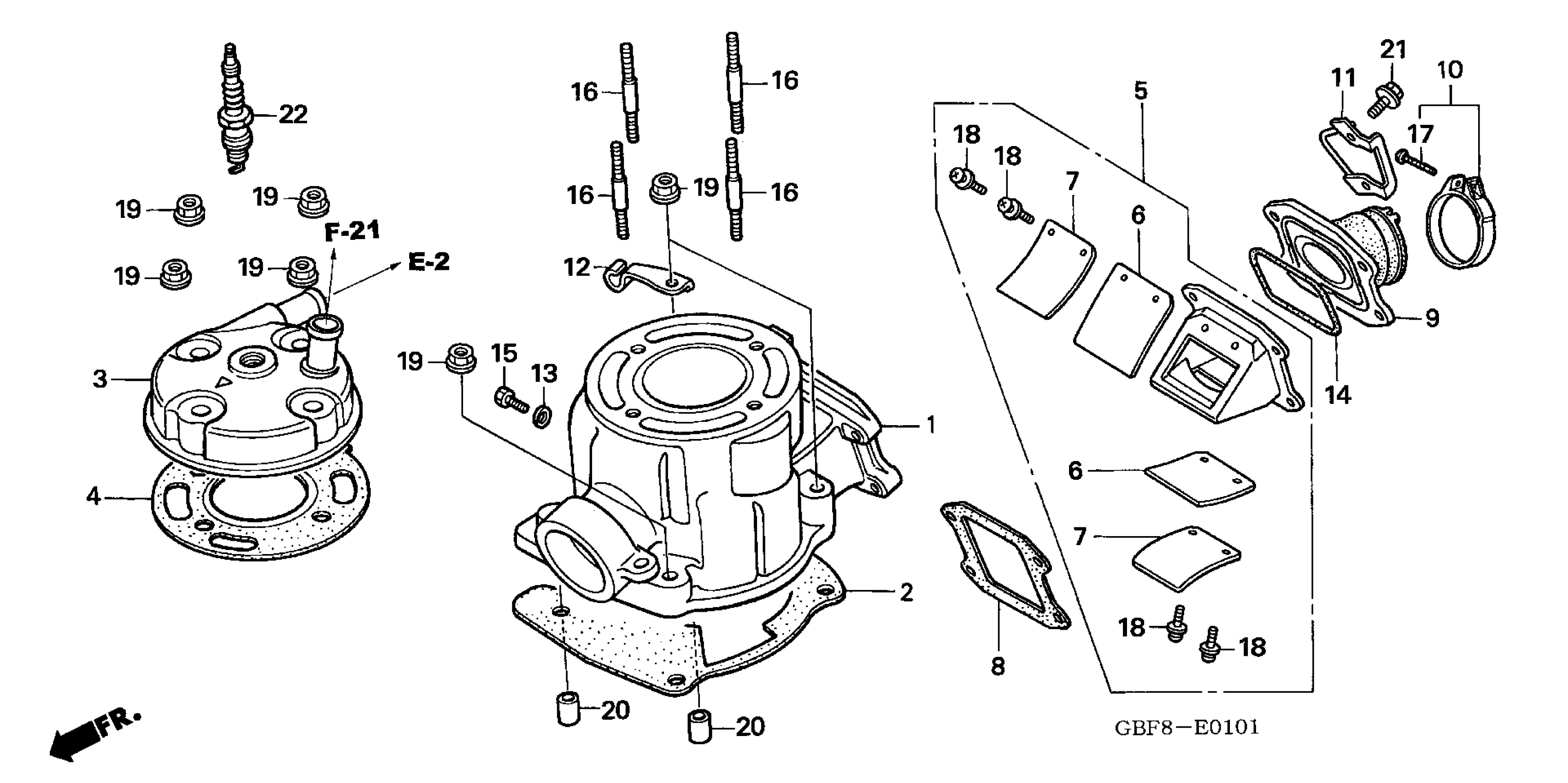

Honda CR85RA (06) MOTORCYCLE, JPN, VIN# JH2HE07C-6K300001 CYLINDER HEAD ('05-'06) Diagram

CYLINDER A

12110-GBF-B40

$646.08

GASKET, CYLINDER

12191-GBF-B40

$6.13

CYLINDER HEAD

12201-GBF-B40

Unavailable

GASKET, CYLINDER HEAD

12251-GBF-B01

$23.26

VALVE ASSY., REED

14100-GBF-B41

Unavailable

REED VALVE ONLY

14111-GBF-B41

Unavailable

STOPPER, REED VALVE

14121-GC4-601

Unavailable

GASKET A, REED VALVE

14132-GBF-B40

$4.64

INSULATOR, CARBURETOR

16220-GC4-600

$41.77

BAND, INSULATOR

16223-GBF-830

$11.87

CLAMP, WATER HOSE

19510-GBF-B40

Unavailable

RECEIVER, CLUTCH CABLE

22821-GBF-830

$9.44

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

O-RING, SPECIAL (ARAI)

91305-GC4-601

$7.39

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

BOLT, STUD (8X32)

92900-08032-0E

$2.17

SCREW, PAN (4X25)

93500-04025-0G

$1.49

SCREW-WASHER (3X6)

93892-03006-08

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

SPARK PLUG (BR10EG) (NGK)

98079-60679

$5.80
