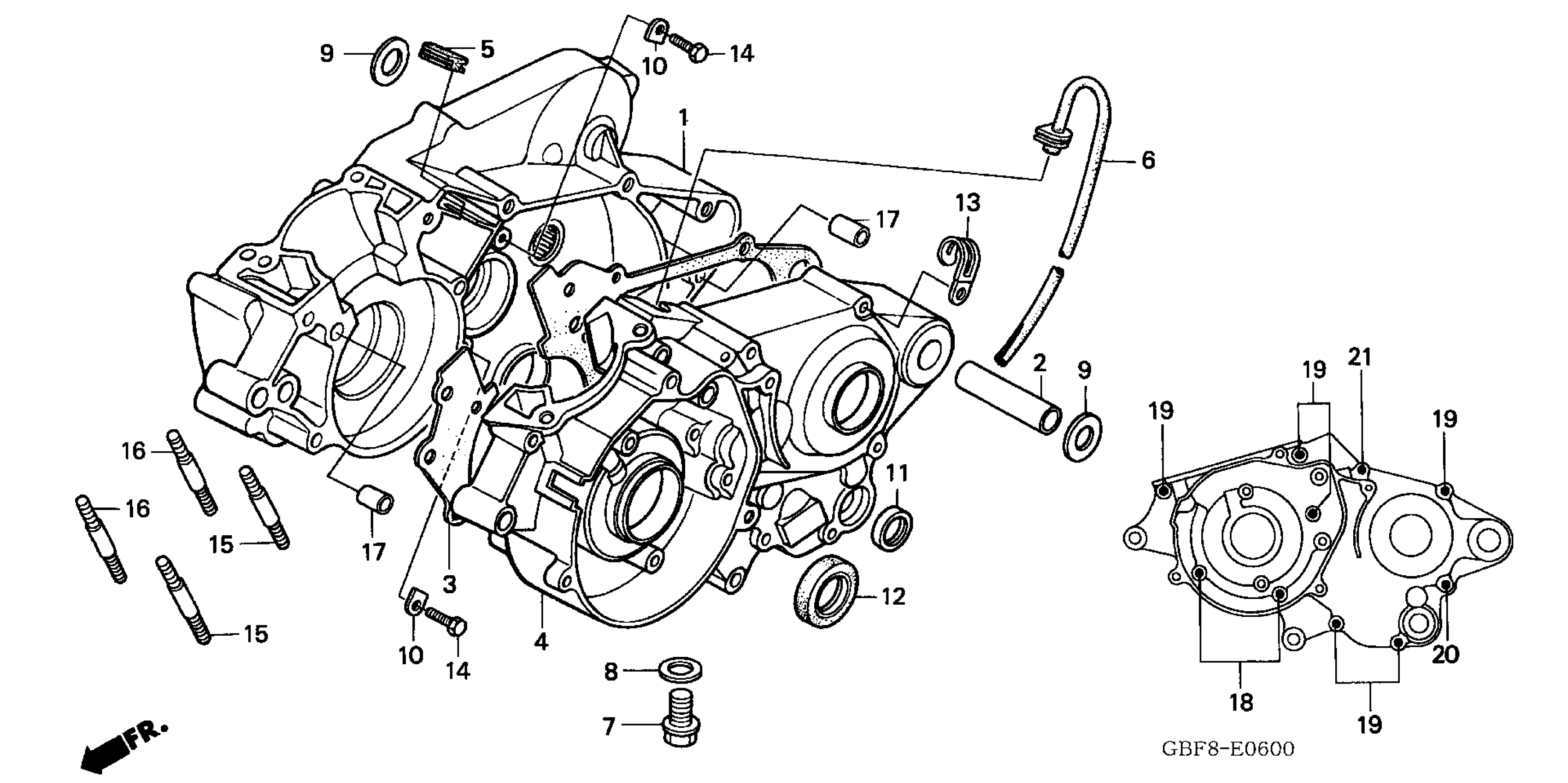

Honda CR85RA (04) MOTORCYCLE, JPN, VIN# JH2HE07C-4K100001 TO JH2HE07C-4K199999 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-GBF-830.

11100-GBF-B40

Unavailable

CRANKCASE, R.

11100-GBF-B40

Unavailable

COLLAR (17MM)

11104-GC4-000

$12.47

GASKET, CRANKCASE

11191-GBF-830

$11.82

CRANKCASE, L.

11200-GBF-830

Unavailable

GROMMET, BREATHER

11206-GC4-700

$3.08

TUBE, BREATHER

11211-GC4-701

$9.35

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.51

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

WASHER (14.2X30.5)

90412-GC4-600

$4.13

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

OIL SEAL (20X32X7) (NOK) This part replaces 91205-GC4-711.

91205-166-004

$17.38

OIL SEAL (20X32X7) (NOK)

91205-166-004

$17.38

CLIP (2X70)

91413-679-000

$9.23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

BOLT, STUD (8X32)

92900-08032-0E

$2.17

BOLT, STUD (8X55) This part replaces 92700-08055-0E.

92900-08040-0E

$2.92

BOLT, STUD (8X55)

92900-08040-0E

$2.92

PIN, DOWEL (8X20)

94301-08200

$2.25

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
