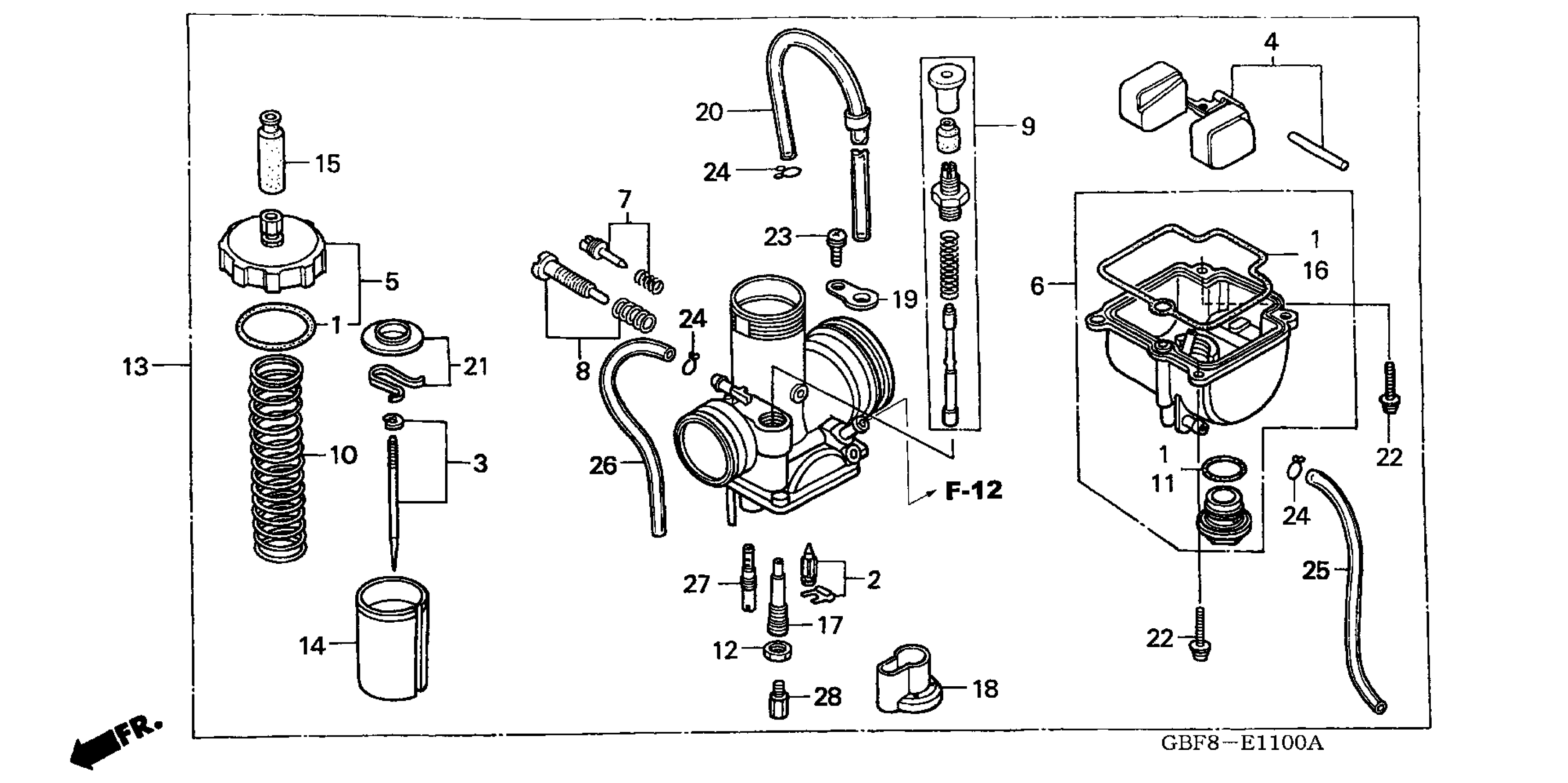

Honda CR85RA (04) MOTORCYCLE, JPN, VIN# JH2HE07C-4K100001 TO JH2HE07C-4K199999 CARBURETOR ('03-'04) Diagram

#

Description
Price

1

GASKET SET

16010-GBF-840

Unavailable

2

VALVE SET, FLOAT This part replaces 16011-KBA-850.

16011-GBF-B41

$36.72

3

NEEDLE SET, JET (24NAAA)

16012-GBF-B01

Unavailable

4

FLOAT SET

16013-GBF-840

Unavailable

5

TOP SET

16014-GBF-840

Unavailable

6

CHAMBER SET, FLOAT

16015-GBF-840

Unavailable

7

SCREW SET A This part replaces 16016-GBF-840.

16016-GB4-003

$23.02

7

SCREW SET A

16016-GB4-003

$23.02

8

SCREW SET

16028-GBF-840

Unavailable

9

VALVE SET, STARTER

16046-KA5-771

Unavailable

10

SPRING, COMPRESSION COIL

16050-GC4-731

Unavailable

11

O-RING (2.4X18.6)

16075-GHB-B00

$4.67

12

NUT, HEX.

16096-HC0-003

$4.15

13

CARBURETOR ASSY. (PE68E A)

16100-GBF-B01

$157.05

14

VALVE, THROTTLE

16111-GC4-711

Unavailable

15

CAP, CABLE SEALING This part replaces 16118-GHB-600.

16118-166-004

$8.08

16

GASKET, FLOAT CHAMBER

16163-KBA-850

Unavailable

17

JET, NEEDLE

16164-GC4-601

Unavailable

18

HOLDER, JET

16168-GC4-701

Unavailable

19

BINDER (NOT AVAILABLE) This part replaces 16179-428-670.

16179-428-671

Unavailable

20

TUBE, VINYL

16199-GBF-840

Unavailable

21

PLATE SET

16212-GC4-701

Unavailable

22

SCREW, PAN (4X16)

93500-04016-0H

$1.49

22

SCREW, PAN (4X16) This part replaces 93500-04016-08.

93500-04016-0H

$1.49

22

SCREW, PAN (4X16) This part replaces 93500-04016-1H.

93500-04016-0H

$1.49

23

SCREW-WASHER (4X8)

93892-04008-08

$1.49

23

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

24

CLIP, TUBE (B7)

95002-02079

$1.49

25

BULK HOSE, VINYL (4X7X8000) (4X7X300)

95003-07008-60M

$24.47

26

BULK HOSE, VINYL (4X7X8000) (4X7X380)

95003-07008-60M

$24.47

27

JET, SLOW (#48) | (Optional).

99103-GBF-0480

$14.59

27

JET, SLOW (#45) | (Optional). This part replaces 99103-KA3-0450.

99103-GBF-0450

$14.02

27

JET, SLOW (#55) | (Optional).

99103-399-0550

$14.59

27

JET, SLOW (#45) | (Optional). This part replaces 99103-440-0450.

99103-GBF-0450

$14.02

27

JET, SLOW (#48) | (Optional). This part replaces 99103-440-0480.

99103-GBF-0480

$14.59

27

JET, SLOW (#50)

99103-440-0500

$15.48

27

JET, SLOW (#52) | (Optional).

99103-4400520

$13.15

27

JET, SLOW (#55) | (Optional). This part replaces 99103-440-0550.

99103-399-0550

$14.59

28

JET, MAIN (#125)

99101-357-1250

$9.98

28

JET, MAIN (#125) This part replaces 99113-GHB-1250.

99101-357-1250

$9.98
