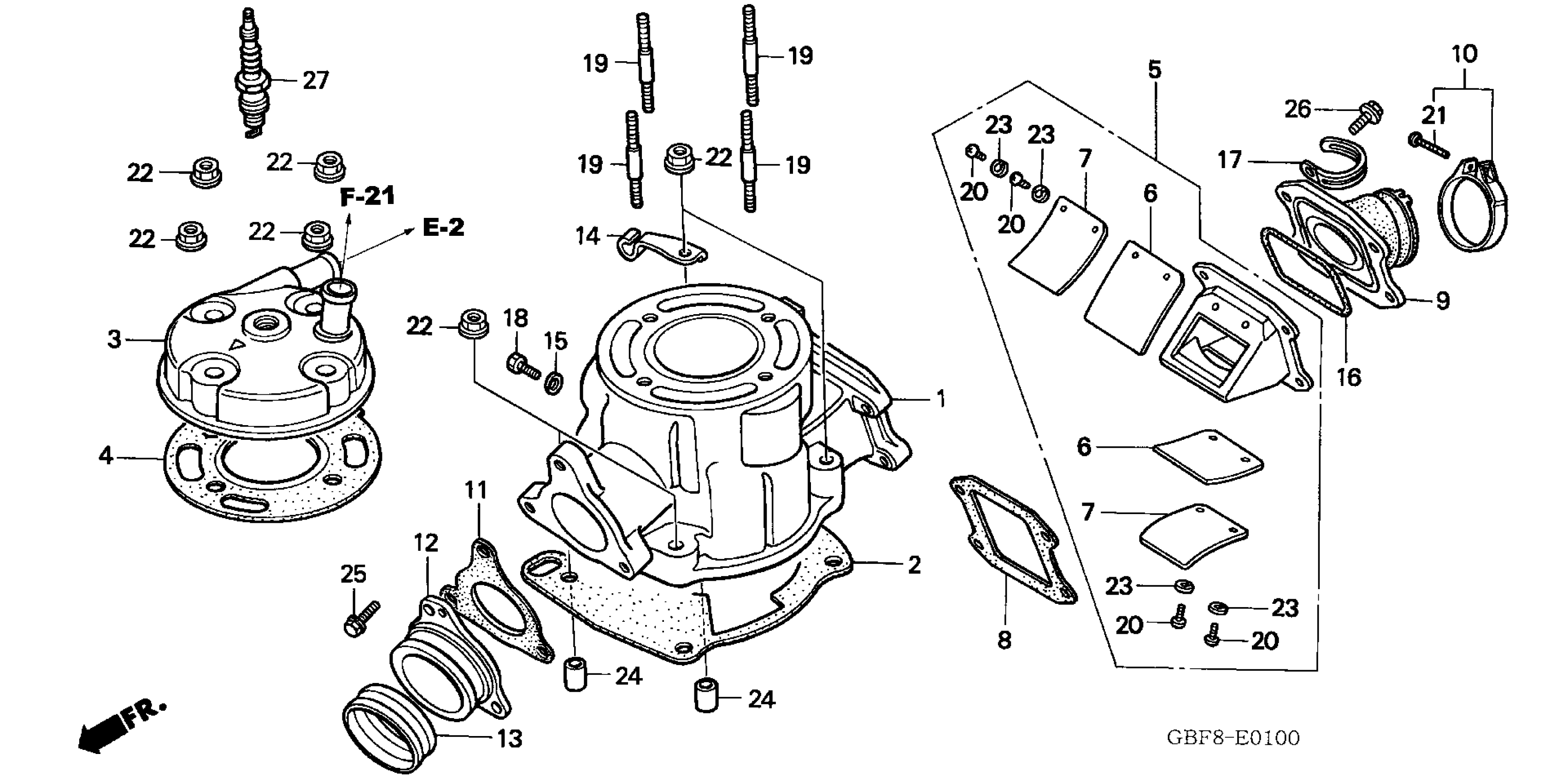

Honda CR85RA (03) EXPERT, JPN, VIN# JH2HE07C-3K000001 TO JH2HE07C-3K099999 CYLINDER HEAD ('03-'04) Diagram

CYLINDER A (NO CYLINDER B LISTED)

12110-GBF-B00

$459.06

GASKET, CYLINDER

12191-GBF-830

$7.25

CYLINDER HEAD This part replaces 12201-GBF-840.

12201-GBF-841

$111.94

CYLINDER HEAD

12201-GBF-841

$111.94

GASKET, CYLINDER HEAD

12251-GBF-B01

$23.26

VALVE ASSY., REED

14100-GS2-003

Unavailable

VALVE, REED

14111-GS2-003

$10.71

STOPPER, REED VALVE

14121-GC4-601

Unavailable

GASKET A, REED VALVE

14132-GBF-830

$6.36

INSULATOR, CARBURETOR

16220-GC4-600

$41.77

BAND, INSULATOR

16223-GBF-830

$11.87

GASKET, EX. JOINT

18291-GS2-621

$6.86

JOINT, EX. PIPE

18321-GBF-830

$32.18

SEAL, EX. PIPE

18357-GBF-830

$9.04

RECEIVER, CLUTCH CABLE

22821-GBF-830

$9.44

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

O-RING, SPECIAL (ARAI)

91305-GC4-601

$7.39

CLIP, WIRE

91406-166-000

$3.83

BOLT, RECESSED (6X10)

92301-06010-0A

$1.49

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

BOLT, STUD (8X32)

92900-08032-0E

$2.17

SCREW, PAN (3X6)

93500-03006-0H

$1.49

SCREW, PAN (4X25)

93500-04025-0G

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, SPRING (3MM)

94111-03800

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

SPARK PLUG (BR10EG) (NGK)

98079-60679

$5.80
