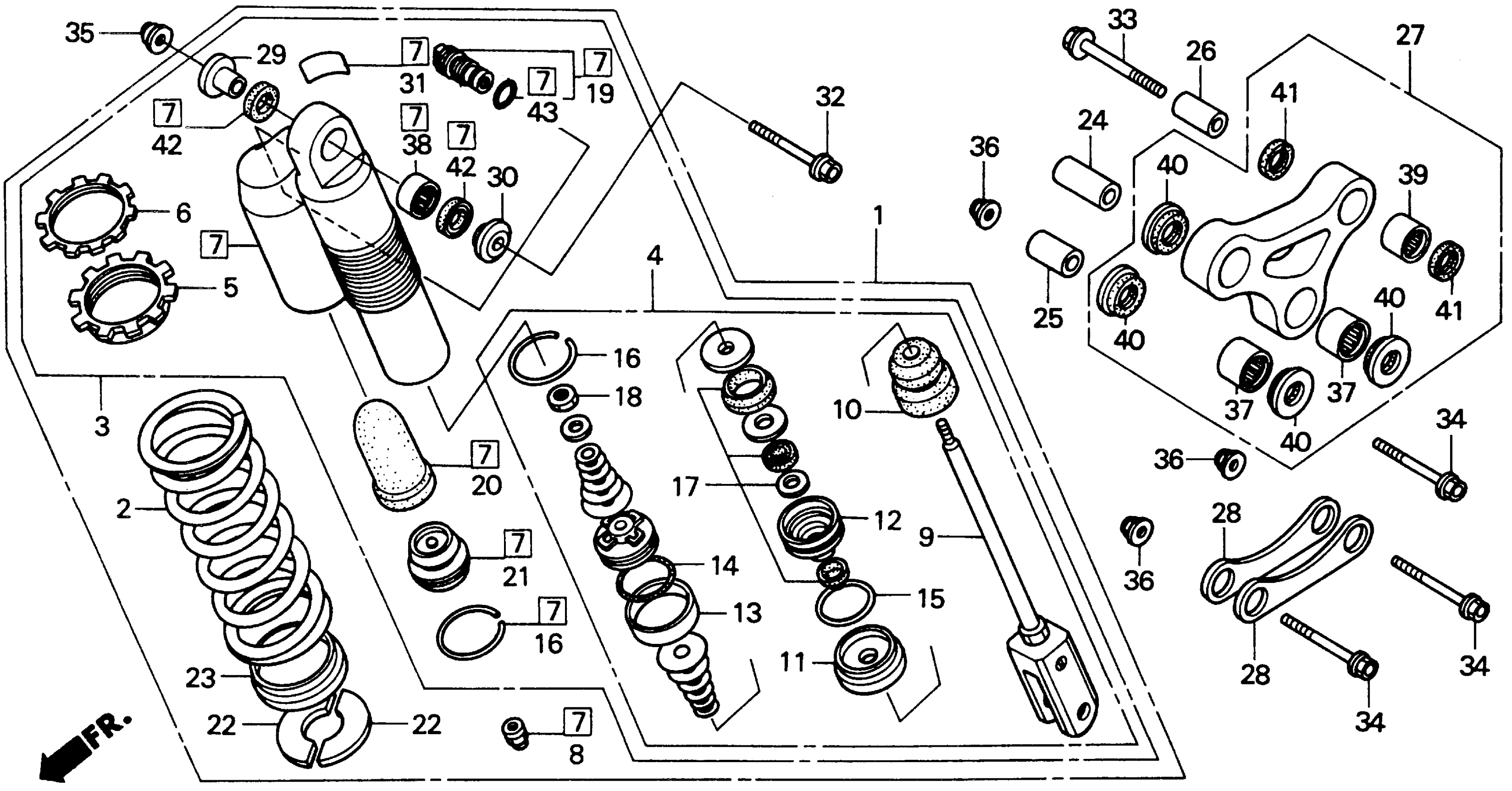

Honda CR80RBA (98) EXPERT, JPN, VIN# JH2HE043-WK200001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA)

52400-GBF-A11

Unavailable

2

SPRING, RR. SHOCK ABSORBER (51N/MM,5.2KGF/MM)

52401-GBF-831

Unavailable

2

SPRING, RR. SHOCK ABSORBER (49N/MM,5.0KGF/MM) | (Optional).

52402-GBF-831

Unavailable

2

SPRING, RR. SHOCK ABSORBER (53N/MM,5.4KGF/MM) | (Optional).

52403-GBF-831

$151.30

2

SPRING, RR. SHOCK ABSORBER (5.6) | (Optional).

52403-GBF-861

$128.79

3

DAMPER, RR.

52410-GBF-A11

Unavailable

4

ROD, PISTON

52421-GBF-A11

Unavailable

5

ADJUSTER, SPRING

52422-MA0-003

$39.25

6

NUT, ADJUSTER

52423-GBF-831

$21.46

7

CASE, SHOCK ABSORBER

52425-GBF-A01

Unavailable

8

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

9

ROD

52426-GBF-J11

Unavailable

10

RUBBER, STOPPER

52427-GBF-831

$15.72

11

CAP, CASE

52428-KA4-741

$20.05

12

CASE, ROD GUIDE

52429-GBF-831

$21.16

13

RING, PISTON

52431-MA0-771

$16.40

14

O-RING (2.0X33.5)

52432-GBF-831

$4.46

15

O-RING (3.5X33.7)

52434-KA3-681

$5.36

16

RING, STOPPER

52435-MA0-771

$4.97

17

OIL SEAL SET

52436-MN1-680

$46.95

18

NUT, HEX. (12MM)

52438-KA4-741

$2.92

19

ADJUSTER, COMPRESSION DAMPING FORCE

52440-GBF-A01

$50.26

20

DIAPHRAGM

52451-GBF-831

$16.21

21

CAP, CHAMBER

52453-GBF-831

Unavailable

22

STOPPER, SPRING SEAT

52455-GBF-831

$5.54

23

SEAT, SPRING

52459-GBF-831

$22.34

24

COLLAR, CUSHION ARM PIVOT

52463-GBF-830

Unavailable

25

COLLAR, CUSHION ARM PIVOT

52464-GBF-830

Unavailable

26

COLLAR, SHOCK ABSORBER (LOWER)

52464-KW3-000

Unavailable

27

ARM SET, CUSHION

52465-GBF-830

Unavailable

28

PLATE, SHOCK CONNECTING ROD

52471-GBF-830

Unavailable

29

COLLAR A, CUSHION (UPPER)

52486-GBF-830

$7.23

30

COLLAR B, CUSHION (UPPER)

52487-GBF-830

$6.19

31

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

32

BOLT, FLANGE (10X61)

90128-GE2-000

Unavailable

33

BOLT, FLANGE (10X43)

90153-KW3-003

$6.00

34

BOLT, FLANGE (12X65)

90155-GBF-830

$10.25

35

NUT, AXLE (10MM)

90304-GA6-003

$2.89

36

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

37

BEARING, NEEDLE (20X26X20)

91075-GBF-831

Unavailable

38

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

39

BEARING, CONNECTING ROD

91079-KN5-003

$12.71

40

DUST SEAL (20X26X4)

91262-GBF-831

$11.93

41

DUST SEAL (15X22X5)

91263-GBF-831

$6.64

42

DUST SEAL, RR. CUSHION (UPPER)

91351-GS2-701

$4.48

43

O-RING (16.8X1.9)

91356-GBF-831

$3.79
