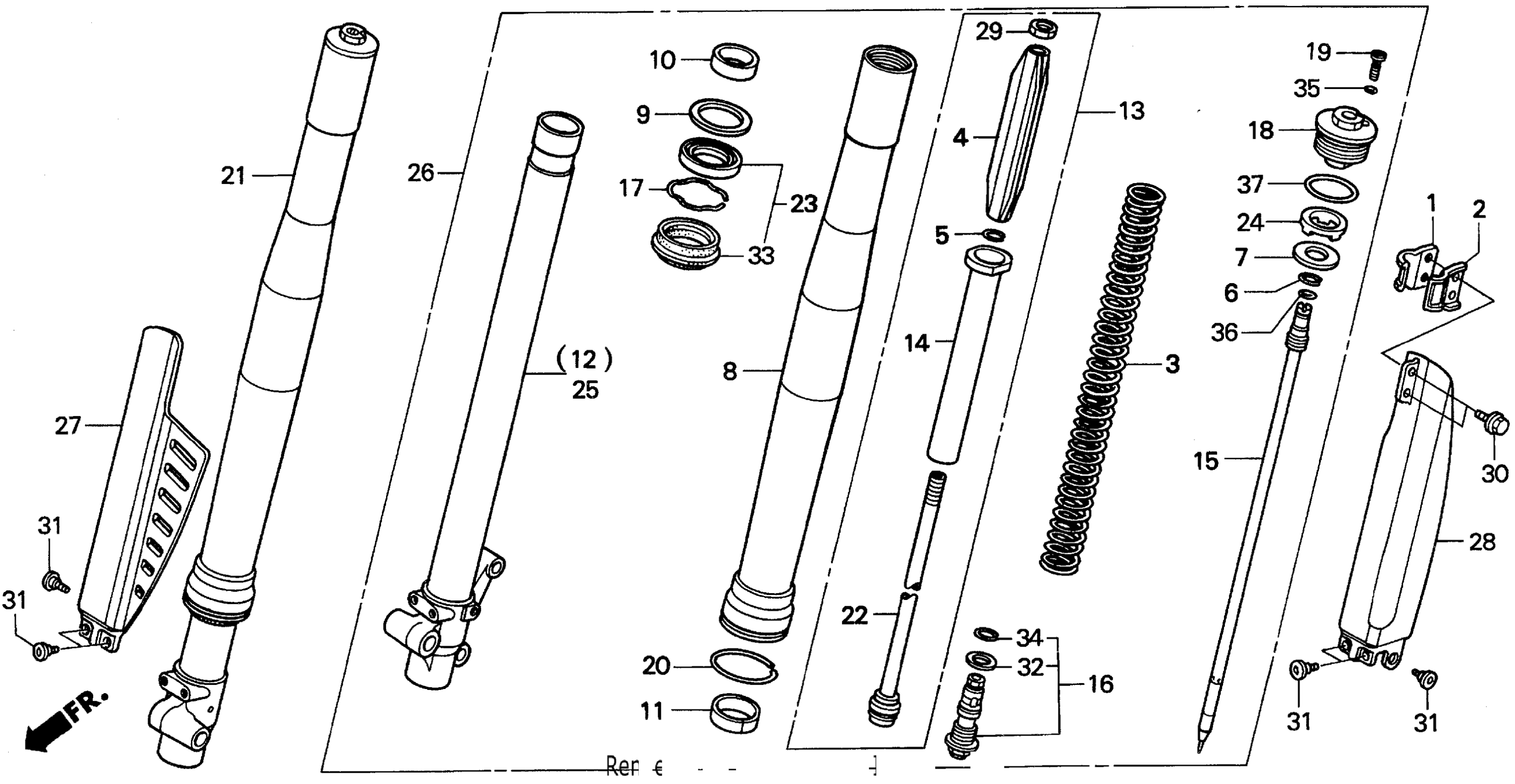

Honda CR80RBA (98) EXPERT, JPN, VIN# JH2HE043-WK200001 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-GBF-J00

$10.73

2

CLAMP B, FR. BRAKE HOSE

45462-GBF-J00

$9.37

3

SPRING, FR. FORK (0.28) | (Optional).

51401-GBF-831

Unavailable

3

SPRING, FR. FORK (0.30)

51401-GBF-861

Unavailable

3

SPRING, FR. FORK (0.32) | (Optional).

51402-GBF-861

Unavailable

4

GUIDE, SPRING

51404-GBF-831

$28.46

5

RING, STOPPER

51405-GBF-831

$4.48

6

RING, STOPPER

51405-MC7-003

$2.39

7

SEAT, SPRING

51408-GBF-831

$4.92

8

TUBE (OUTER)

51410-GBF-861

Unavailable

9

RING, BACK-UP

51412-461-003

$7.04

10

BUSH, GUIDE

51414-GBF-831

$17.02

11

BUSH, SLIDER

51415-GBF-831

$14.95

12

PIPE, R. SLIDE

51420-GBF-831

Unavailable

13

DAMPER, FR.

51430-GBF-831

Unavailable

14

DAMPER SUB, FR.

51431-GBF-831

Unavailable

15

NEEDLE, REBOUND This part replaces 51436-GBF-831.

51436-GBF-J01

$30.95

15

NEEDLE, REBOUND

51436-GBF-J01

$30.95

16

BOLT, CENTER

51441-GBF-831

Unavailable

17

RING, OIL SEAL STOPPER

51447-KR6-003

$3.77

18

BOLT, FR. FORK

51450-GBF-831

$60.94

19

BOLT, PLUG

51456-KZ3-731

$9.59

20

RING, WEAR

51476-GBF-831

$3.45

21

FORK SUB-ASSY., R. FR.

51480-GBF-861

Unavailable

22

ROD, PISTON

51481-GBF-831

Unavailable

23

SEAL SET, FR. FORK This part replaces 51490-GBF-831.

51490-GBF-J21

$24.51

24

RUBBER, STOPPER

51517-GBF-831

$6.21

25

PIPE, L. SLIDE

51520-GBF-831

Unavailable

26

FORK SUB-ASSY., L. FR.

51580-GBF-861

Unavailable

27

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51610-GBF-680ZB

$57.38

28

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51620-GBF-680ZB

$57.38

29

NUT, HEX. (10MM)

52482-GBF-831

$2.48

30

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

31

BOLT, PROTECTOR

90113-MAC-780

$3.53

32

WASHER, SPECIAL

90544-KZ3-003

$3.10

33

DUST SEAL

91254-GBF-831

$12.05

34

O-RING (15.5X1.5)

91256-GC5-003

$1.51

35

O-RING (2.8X1.9)

91301-KZ3-731

$2.02

36

O-RING

91310-MJ0-003

$2.61

37

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92
