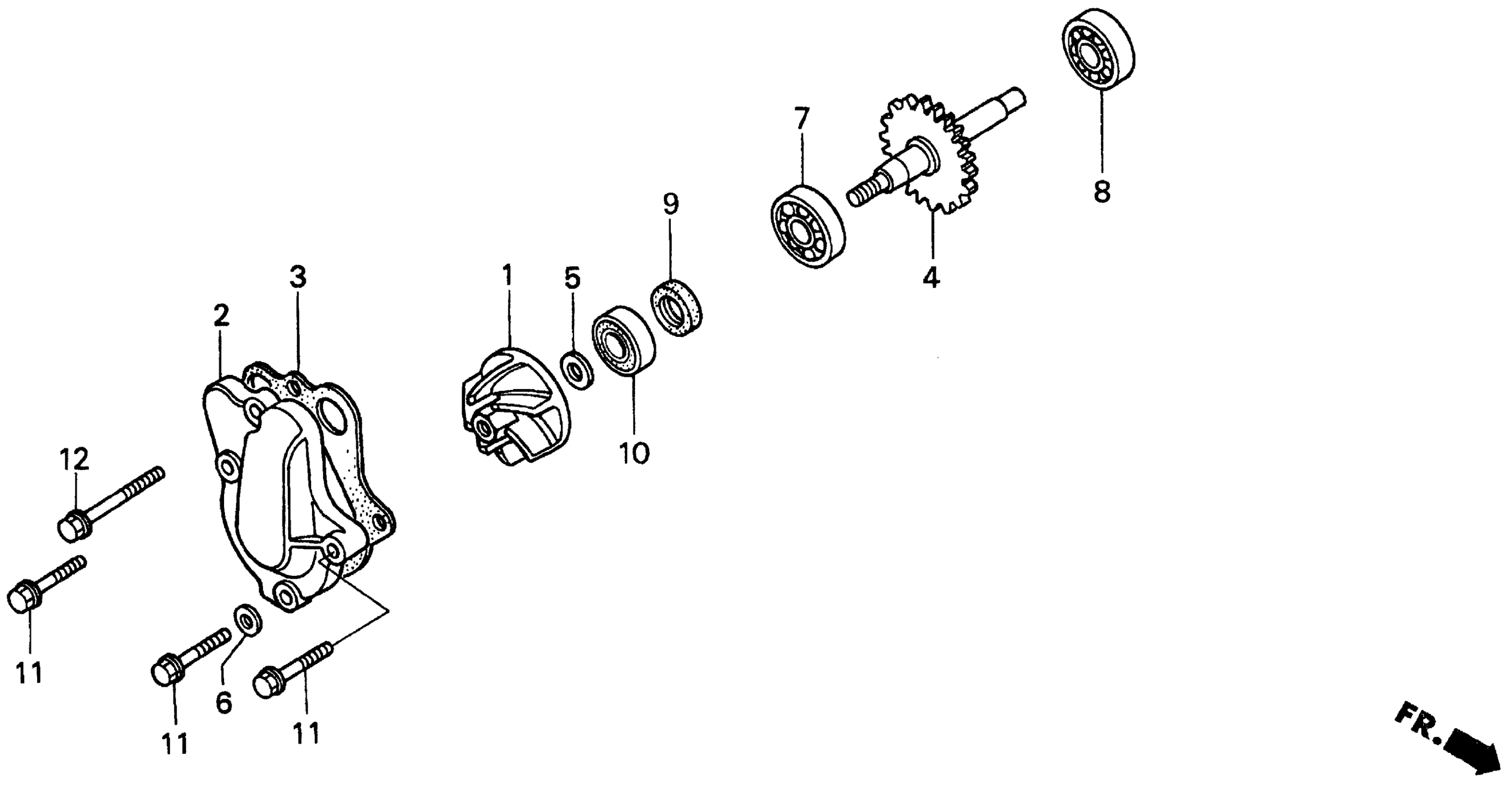

Honda CR80RA (99) MOTORCYCLE, JPN, VIN# JH2HE04C-XK600001 WATER PUMP Diagram

#

Description

Price

1

IMPELLER, WATER PUMP

19215-GC4-731

$36.26

2

COVER, WATER PUMP

19221-GBF-830

Unavailable

3

GASKET, WATER PUMP

19229-GBF-830

$6.54

4

SHAFT, WATER PUMP

19230-GC4-730

$144.41

5

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

6

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

7

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

8

BEARING, RADIAL BALL (7X22X7)

91006-GC4-731

$33.10

9

OIL SEAL (12X21X4) (ARAI) This part replaces 91201-035-013.

91201-035-015

$4.78

9

OIL SEAL (12X21X4) (ARAI)

91201-035-015

$4.78

10

SEAL, WATER PUMP (NOK)

91211-KA3-761

$6.69

11

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

12

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
