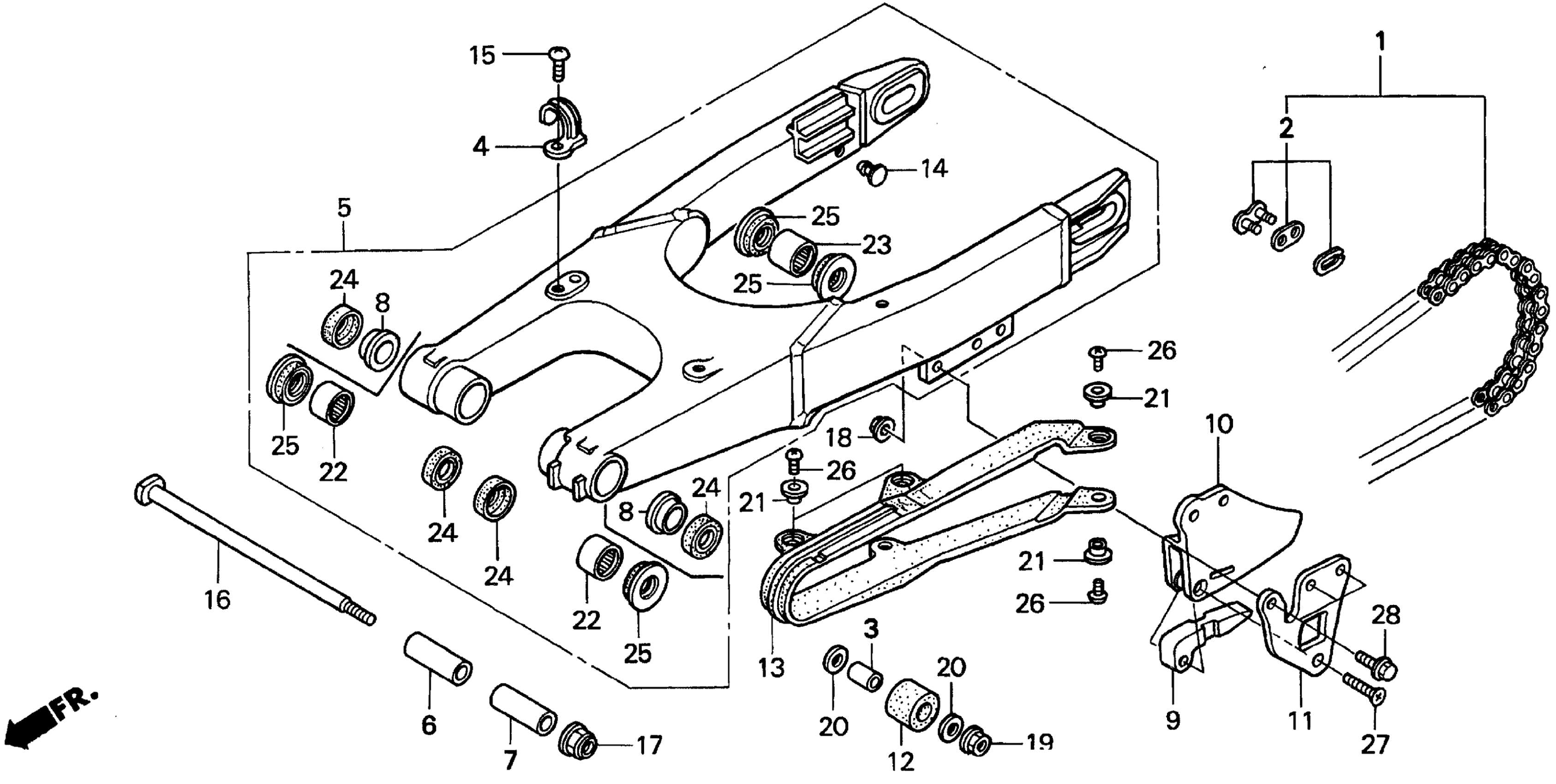

Honda CR80RA (99) MOTORCYCLE, JPN, VIN# JH2HE04C-XK600001 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (420M-112) (DAIDO)

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GW6-003.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (D.I.D.420MBK/1-118RJ) (DAIDO) | (Optional).

40530-GE2-671

Unavailable

1

CHAIN, DRIVE (RK420MS-118RJ) (RK EXCEL) | (Optional).

40530-GE2-672

Unavailable

2

MASTER LINK (DAIDO)

40531-GT5-003

$3.15

2

MASTER LINK (DAIDO) | (Optional).

40531-GC4-602

$2.19

2

MASTER LINK (RK EXCEL) | (Optional).

40531-GM7-641

$3.37

3

COLLAR, LINK

43435-392-000

$5.64

4

GUIDE, RR. BRAKE HOSE

43468-KAE-000

$5.21

5

SWINGARM SUB-ASSY., RR.

52200-GBF-J00

Unavailable

6

COLLAR, R. SWINGARM

52141-GBF-J00

$17.39

7

COLLAR, L. SWINGARM

52142-GBF-J00

$15.33

8

COLLAR, THRUST PIVOT

52143-GBF-J00

$6.67

9

SLIDER, CHAIN GUIDE

52147-GM7-701

$13.46

10

GUIDE, CHAIN

52156-GM7-700

$25.54

11

GUIDE, PLATE

52157-GS2-770

Unavailable

12

ROLLER, CHAIN TENSIONER

52158-GBF-830

$16.34

13

SLIDER, CHAIN

52170-GBF-831

$34.72

14

PLUG, RR. FENDER

80103-192-600

$3.71

15

SCREW, PAN (5X10)

90104-ML7-920

$2.80

16

BOLT, SWINGARM PIVOT

90121-GBF-830

$25.00

17

NUT, FLANGE (14MM)

90201-GC4-000

$4.28

18

NUT, U (6MM)

90301-473-003

$3.89

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

20

WASHER (8MM)

90485-040-000

$1.63

21

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.46

22

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$22.71

23

BEARING, NEEDLE (20X26X20)

91075-GBF-831

Unavailable

24

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.47

25

DUST SEAL (20X26X4)

91262-GBF-831

$11.03

26

SCREW, PAN (5X12)

93500-05012-0G

$0.84

27

SCREW, FLAT (6X35)

93600-06035-0A

$1.18

28

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
