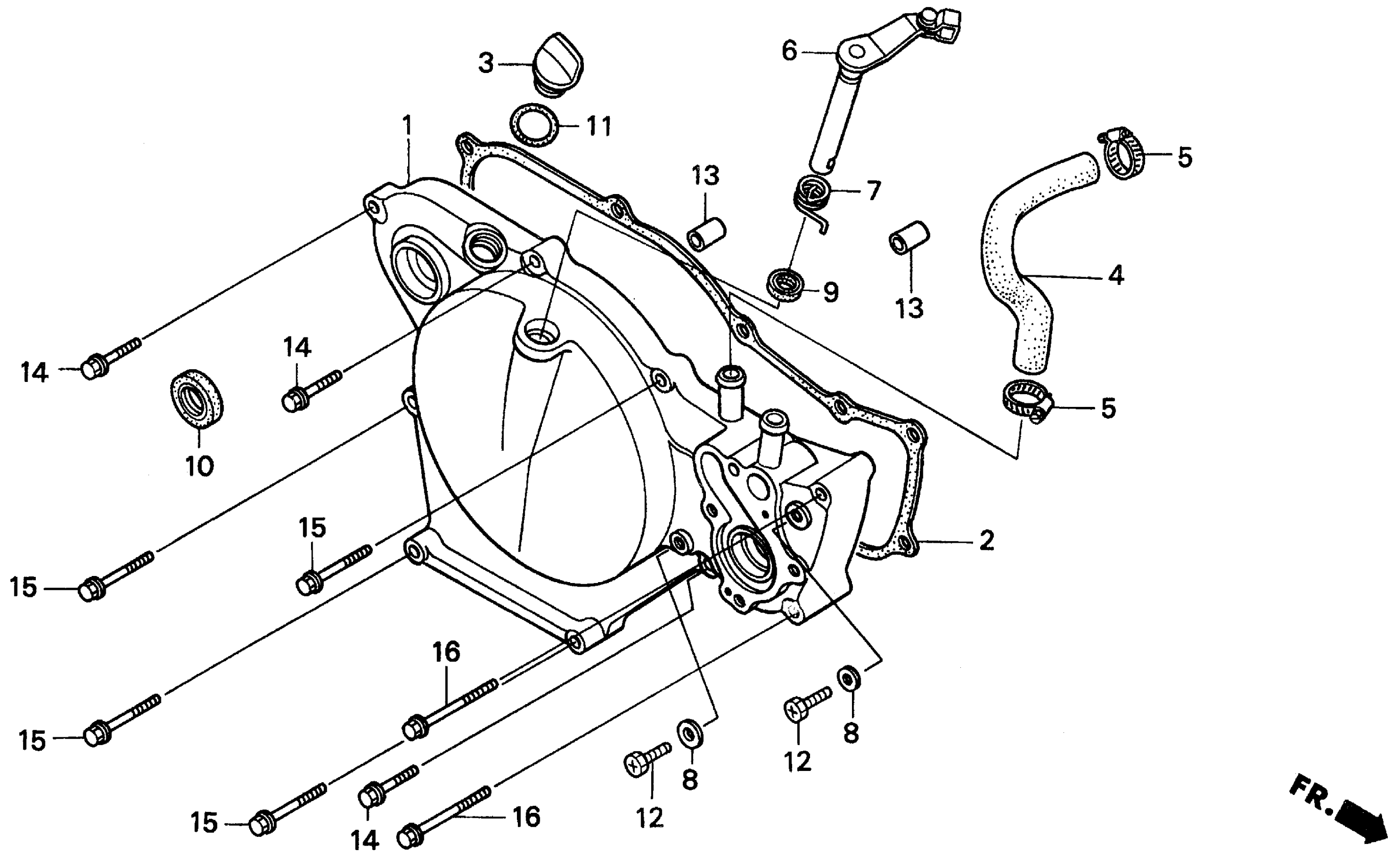

Honda CR80RA (99) MOTORCYCLE, JPN, VIN# JH2HE04C-XK600001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-GBF-J20

Unavailable

GASKET, R. CRANKCASE COVER

11393-GBF-830

$14.63

CAP, OIL FILLER

15611-KA3-710

$12.51

HOSE, WATER

19501-GBF-830

Unavailable

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

LEVER, CLUTCH

22810-GBF-830

Unavailable

SPRING, CLUTCH LEVER

22815-GC4-600

Unavailable

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.28

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

OIL SEAL (15X25X6)

91211-671-003

$6.50

O-RING (11.9X2.2)

91370-461-000

$2.21

BOLT, RECESSED (6X10)

92301-06010-0A

$0.72

PIN, DOWEL (8X14)

94301-08140

$2.62

BOLT, FLANGE (6X28)

96001-06028-00

$2.59

BOLT, FLANGE (6X35)

96001-06035-00

$1.29

BOLT, FLANGE (6X50)

96001-06050-00

$2.54
