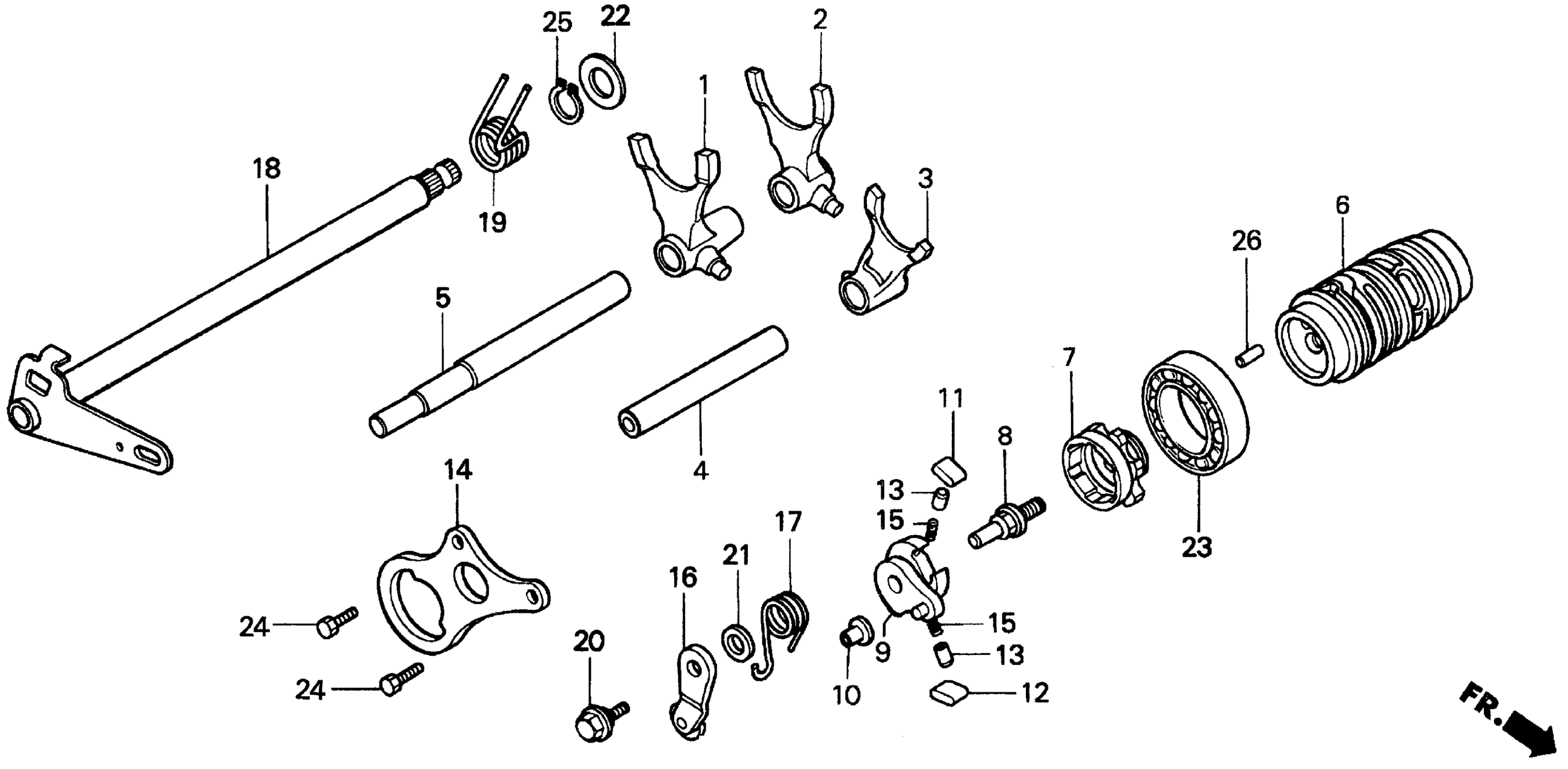

Honda CR80RA (99) MOTORCYCLE, JPN, VIN# JH2HE04C-XK600001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-GBF-B40

Unavailable

1

FORK, R. GEARSHIFT This part replaces 24211-GBF-830.

24211-GBF-B40

Unavailable

2

FORK, L. GEARSHIFT

24221-GBF-B40

Unavailable

2

FORK, L. GEARSHIFT This part replaces 24221-GBF-830.

24221-GBF-B40

Unavailable

3

FORK, CENTER GEARSHIFT This part replaces 24231-GBF-830.

24231-GBF-B40

Unavailable

4

SHAFT, GEARSHIFT FORK MAIN

24265-GC4-710

$17.79

5

COUNTERSHAFT, GEARSHIFT FORK

24266-GC4-710

Unavailable

6

DRUM, GEARSHIFT This part replaces 24301-GBF-830.

24301-GBF-B40

Unavailable

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$63.47

8

PIN, SHIFTER

24315-KA3-710

$19.43

9

SHIFTER, DRUM

24321-KT7-752

$47.88

10

COLLAR, SHIFTER

24322-HA0-000

$5.23

11

PAWL A, RATCHET

24324-KA3-711

$12.13

12

PAWL B, RATCHET

24325-KA3-711

$12.13

13

PLUNGER, PAWL

24326-KBH-901

$5.56

14

PLATE, GUIDE

24328-GC4-730

$18.09

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

16

STOPPER, DRUM

24430-KA3-740

$20.10

17

SPRING, DRUM STOPPER

24435-KA3-710

Unavailable

18

SPINDLE, GEARSHIFT

24610-GC4-710

$100.99

19

SPRING, SHIFT RETURN

24651-KA3-710

Unavailable

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.07

21

WASHER, DRUM STOPPER

90417-360-000

$1.60

22

WASHER B, THRUST (14MM)

90428-958-000

$4.45

23

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$25.28

24

BOLT, HEX. (6X16)

93301-06016-0A

$1.35

25

CIRCLIP (OUTER) (14MM)

94510-14000

$0.94

26

ROLLER (4X8)

96220-40080

$0.47
