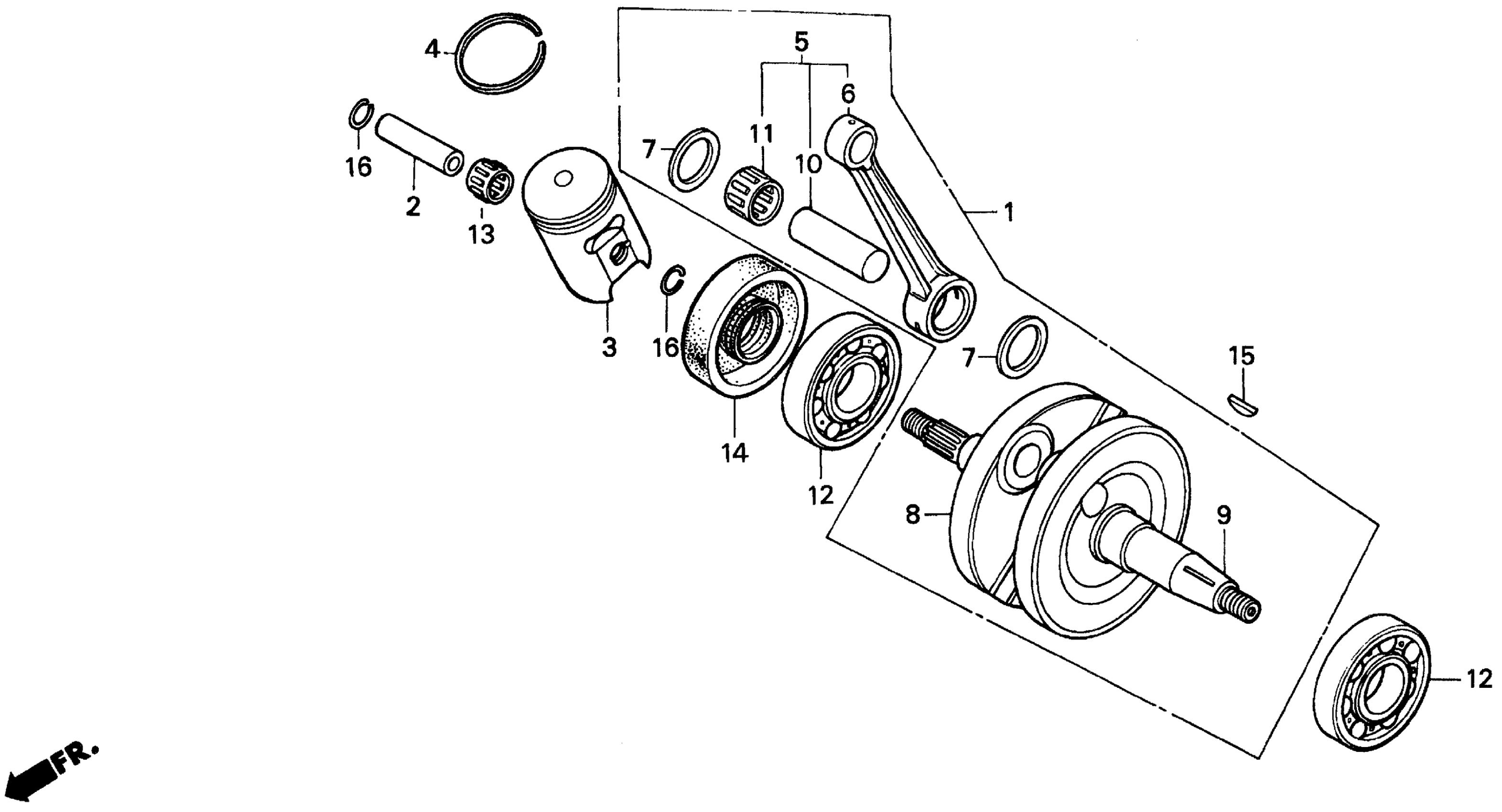

Honda CR80RA (99) MOTORCYCLE, JPN, VIN# JH2HE04C-XK600001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-GC4-601

$245.51

2

PIN, PISTON

13111-GC4-600

$13.86

3

PISTON B

13120-GBF-840

$77.92

4

RING, PISTON TOP

13121-GBF-841

$24.61

5

ROD SET, CONNECTING

13200-GC4-600

Unavailable

6

ROD, CONNECTING

13201-GC4-600

$88.41

7

PLATE, CONNECTING ROD SIDE

13202-GC4-600

$10.69

8

CRANKSHAFT, R.

13311-GC4-601

$138.61

9

CRANKSHAFT, L.

13321-GC4-600

Unavailable

10

PIN, CRANK (GREEN)

13381-GC4-710

Unavailable

10

PIN, CRANK (YELLOW)

13382-GC4-710

Unavailable

10

PIN, CRANK (WHITE)

13383-GC4-710

Unavailable

10

PIN, CRANK (BLUE)

13384-GC4-710

$18.49

11

BEARING, CONNECTING ROD LARGE END (RED)

91001-GC4-711

$26.74

11

BEARING, CONNECTING ROD LARGE END (BLUE)

91002-GC4-711

$25.57

11

BEARING, CONNECTING ROD LARGE END (WHITE)

91003-GC4-711

$23.18

12

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$24.38

12

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

12

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$24.38

13

BEARING, CONNECTING ROD SMALL END

91102-GC4-601

$20.37

14

OIL SEAL (22X40X8)

91206-GC4-711

$8.96

15

KEY, WOODRUFF (25X14)

94401-25140

$1.75

16

CLIP, PISTON PIN (14MM)

94601-14000

$1.49
