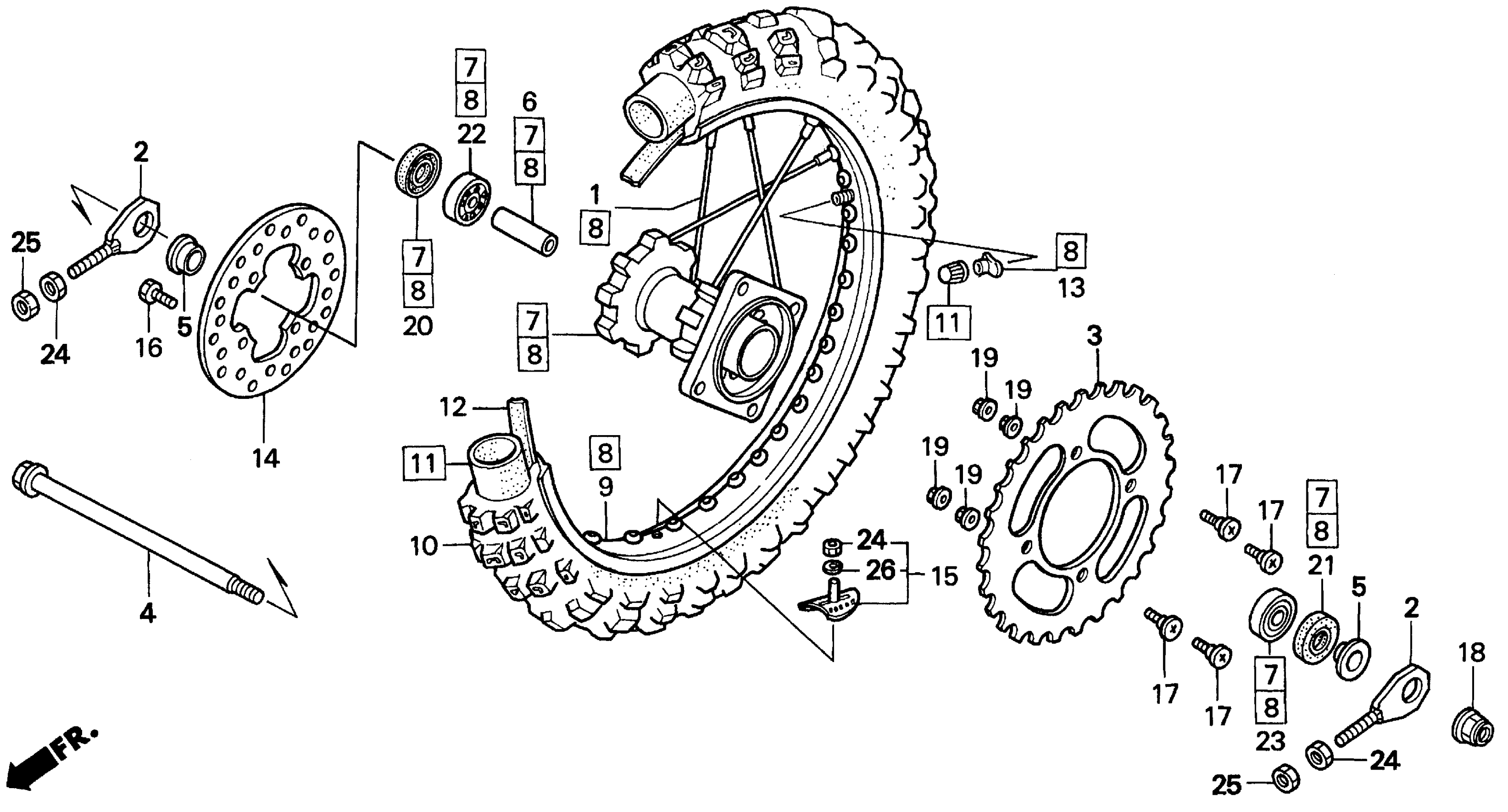

Honda CR80RA (97) MOTORCYCLE, JPN, VIN# JH2HE040-VK400004 REAR WHEEL Diagram

SPOKE SET A, RR.

06420-GBF-830

$4.15

ADJUSTER, CHAIN

40543-GBF-830

$15.88

SPROCKET, FINAL (49T) (SUNSTAR)

41201-GBF-830

$110.59

SPROCKET, FINAL (47T) | (Optional).

41202-GC4-601

Unavailable

SPROCKET, FINAL (51T) (SUNSTAR) | (Optional). This part replaces 41203-GC4-601.

41203-GBF-830

$113.89

SPROCKET, FINAL (49T) | (Optional).

41204-GS2-305

$110.59

SPROCKET, FINAL (47T) | (Optional). This part replaces 41202-GBF-830.

41202-GC4-601

Unavailable

SPROCKET, FINAL (51T) (SUNSTAR) | (Optional).

41203-GBF-830

$113.89

AXLE, RR. WHEEL This part replaces 42301-GBF-830.

42301-GBF-J00

$21.27

AXLE, RR. WHEEL

42301-GBF-J00

$21.27

COLLAR, RR. WHEEL

42311-GBF-830

$14.57

COLLAR, RR. AXLE DISTANCE

42620-GBF-830

Unavailable

HUB SUB-ASSY., RR. WHEEL

42635-GBF-830

Unavailable

WHEEL SUB-ASSY., RR. This part replaces 42650-GBF-830.

42650-GBF-831

Unavailable

WHEEL SUB-ASSY., RR.

42650-GBF-831

Unavailable

RIM, RR. WHEEL This part replaces 42701-GBF-831.

42701-GBF-832

Unavailable

TIRE, RR. (90/100-14 49M K695) (DUNLOP)

42711-GBF-701

Unavailable

TUBE, TIRE (90/100-14) (DUNLOP)

42712-GS2-701

$29.79

FLAP, TIRE (1.60X14) (DUNLOP)

42713-GS2-701

$7.97

CAP, VALVE

42714-KA3-710

$10.46

DISK, RR. BRAKE

43351-GS2-600

Unavailable

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

BOLT, DISK (6X17)

90105-KAE-870

$2.92

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

NUT, U (14MM)

90305-GE8-003

$3.86

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

DUST SEAL (32X21X5.5) (ARAI)

90745-GC4-702

$5.05

OIL SEAL (21X35X7)

90752-GB4-681

$4.26

BEARING, RADIAL BALL (6002-SH)

91073-GBF-831

$26.12

BEARING, RADIAL BALL (6202-SH)

91074-GBF-831

$24.92

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
