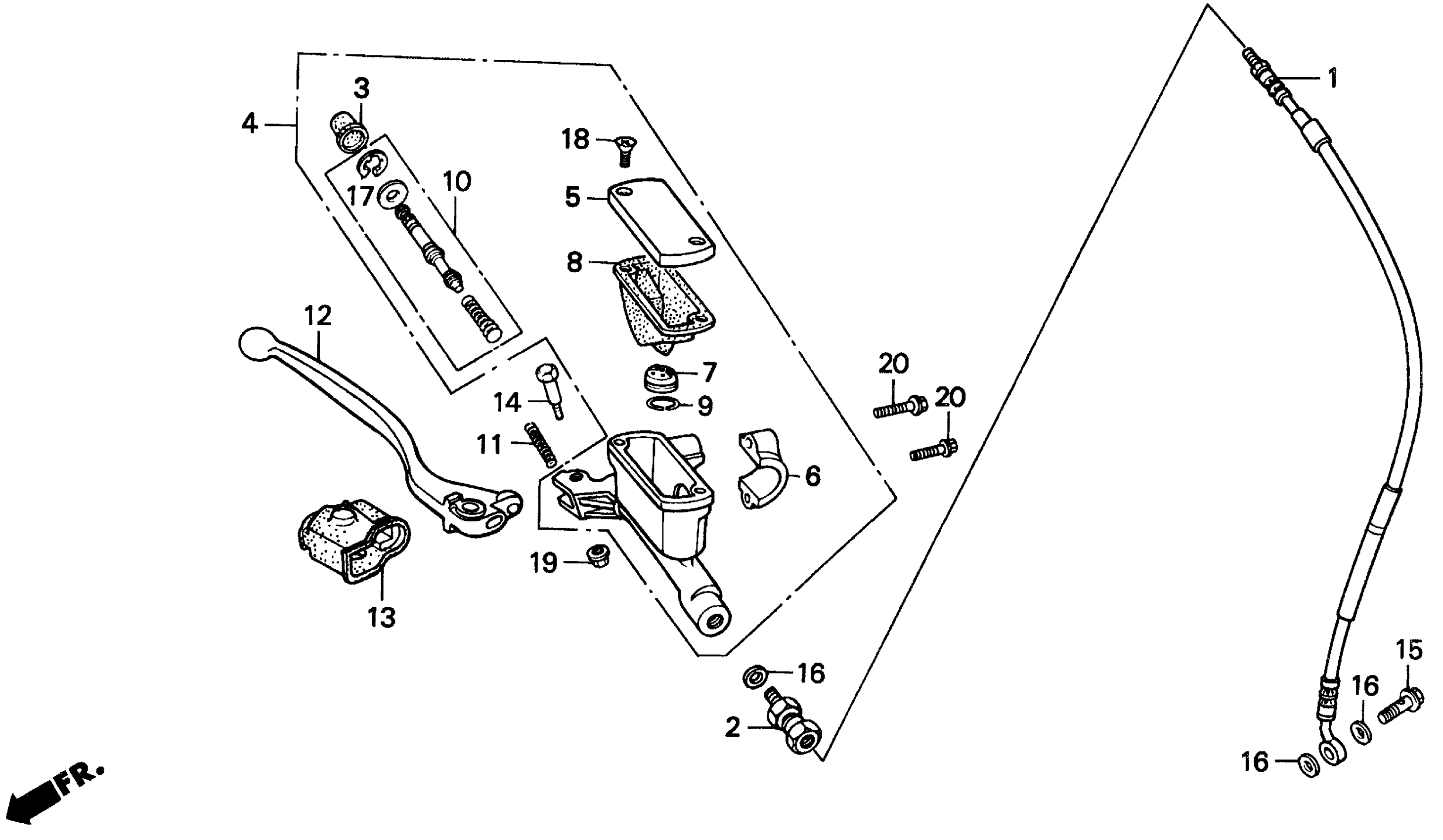

Honda CR80RA (97) MOTORCYCLE, JPN, VIN# JH2HE040-VK400004 FR. BRAKE MASTER CYL. 96-97 Diagram

HOSE, FR. BRAKE

45125-GBF-831

Unavailable

JOINT, BRAKE HOSE

45127-KZ4-003

Unavailable

BOOT

45504-410-003

$10.93

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-GBF-831

Unavailable

CAP, MASTER CYLINDER

45513-KCE-671

$20.51

HOLDER, MASTER CYLINDER

45517-GW0-751

$11.14

SEPARATOR

45518-KA3-731

$10.93

DIAPHRAGM

45520-KA3-731

$12.18

RING

45523-KA3-731

$2.67

PISTON SET, MASTER CYLINDER

45530-KA3-831

Unavailable

SPRING, LEVER RETURN

45552-KA3-831

Unavailable

LEVER, R. HANDLEBAR

53175-GBF-830

$19.41

COVER, R. HANDLEBAR

53176-KA3-831

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

BOLT, OIL (10X22)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
