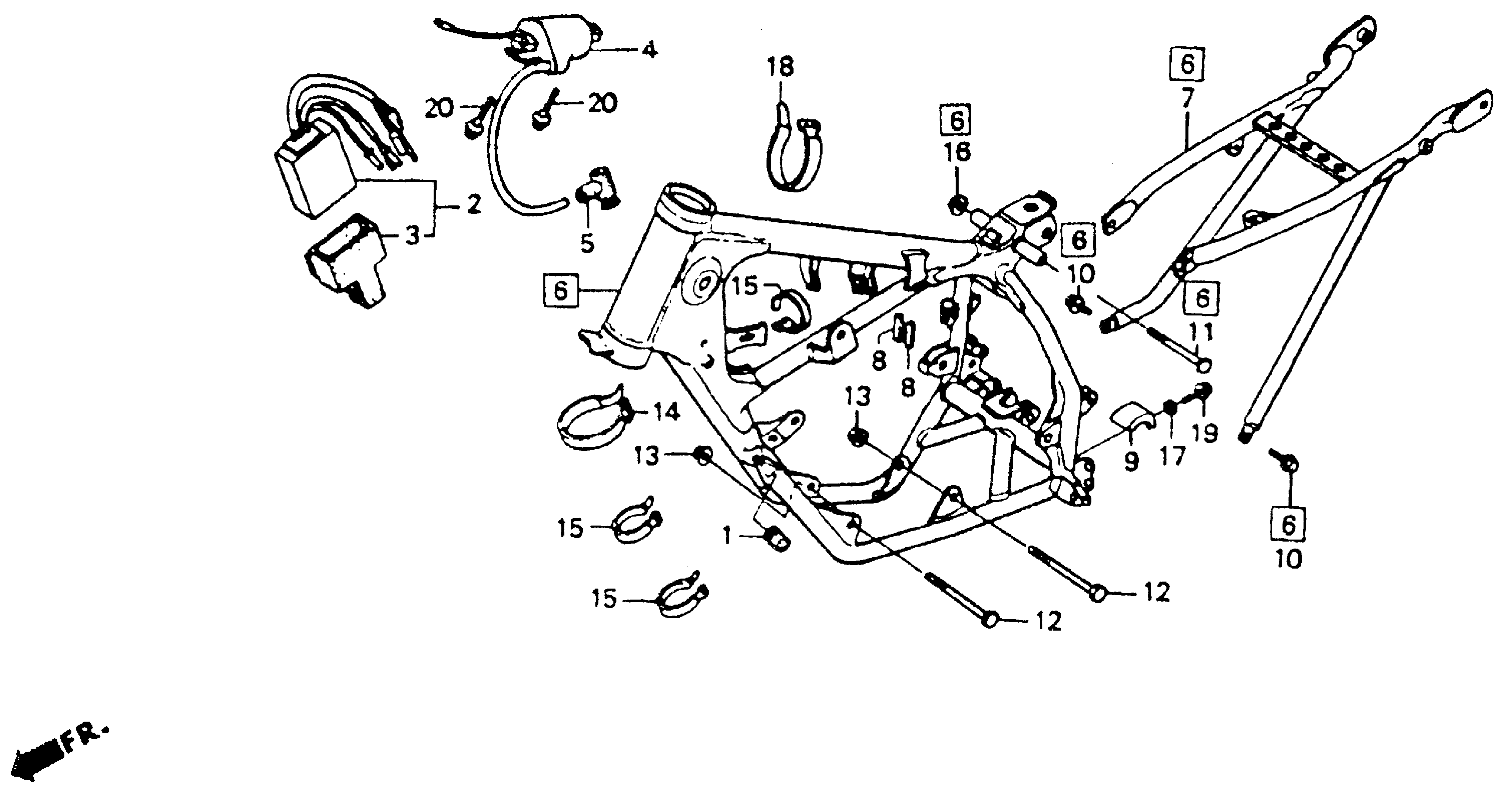

Honda CR80RA (95) MOTORCYCLE, JPN, VIN# JH2HE040-SK200001 FRAME Diagram

#

Description
Price

1

RUBBER, STOPPER

19055-GS2-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30400-GC4-602

Unavailable

3

RUBBER, IGNITION CONTROL MODULE

30401-GC4-601

Unavailable

4

COIL, IGNITION

30500-GS2-005

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR

30700-KA5-771

$31.04

6

FRAME *NH196* (ROSS WHITE) This part replaces 50100-GBF-700ZA.

50100-GBF-701ZA

Unavailable

6

FRAME *NH196* (ROSS WHITE)

50100-GBF-701ZA

Unavailable

7

FRAME, RR. *NH196* (ROSS WHITE)

50140-GS2-600ZA

Unavailable

8

RUBBER, PROTECTOR

50714-MS8-000

Unavailable

9

SLIDER, CHAIN (LOWER)

52175-GM7-700

$17.34

10

BOLT, JOINT (8X19)

90108-KA3-710

$3.47

11

BOLT, JOINT (8X103)

90118-GS2-000

Unavailable

12

BOLT, FLANGE (8X87)

90113-KT0-670

$5.78

13

NUT, U (8MM)

90309-ML3-791

$4.35

14

BAND, WIRE

90651-KV6-003

$2.92

15

BAND, WIRE

90652-KT1-771

$4.48

16

NUT, FLANGE (8MM)

94050-08000

$1.49

17

WASHER, PLAIN (6MM)

94103-06800

$1.49

18

BAND A2, CABLE

95014-61200

$2.33

19

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

20

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

21

WASHER (8MM)

90465-MC4-000

$2.51
