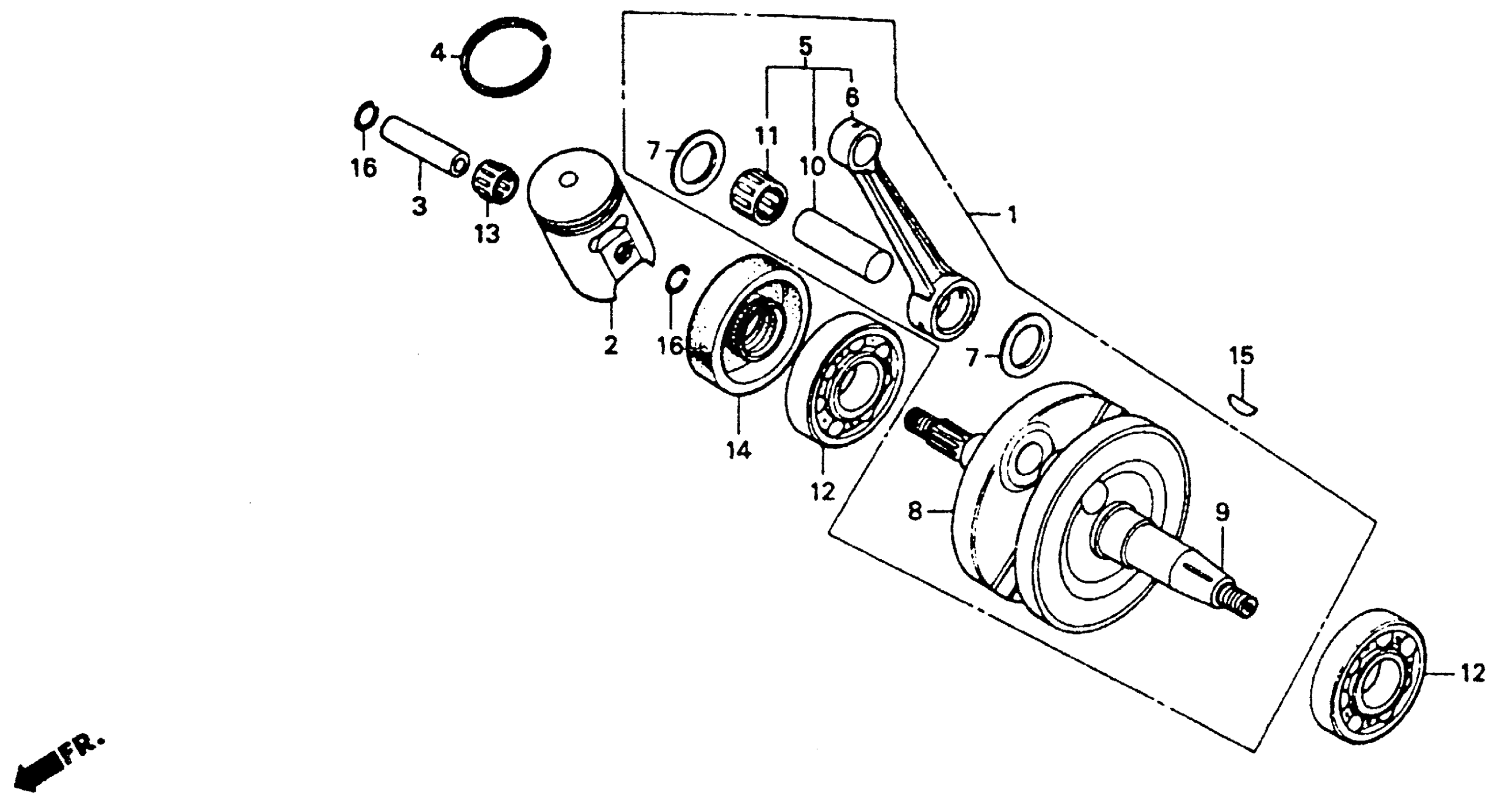

Honda CR80RA (95) MOTORCYCLE, JPN, VIN# JH2HE040-SK200001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-GC4-601

Unavailable

2

PISTON This part replaces 13110-GC4-610.

13110-GC4-505

$42.33

3

PIN, PISTON

13111-GC4-600

$12.44

4

RING, PISTON (TEIKOKU)

13121-GC4-673

$23.16

4

RING, PISTON (RIKEN)

13121-GC4-674

Unavailable

5

ROD SET, CONNECTING

13200-GC4-600

Unavailable

6

ROD, CONNECTING

13201-GC4-600

$78.16

7

PLATE, CONNECTING ROD SIDE

13202-GC4-600

$9.74

8

CRANKSHAFT, R.

13311-GC4-601

$122.54

9

CRANKSHAFT, L.

13321-GC4-600

Unavailable

10

PIN, CRANK (GREEN)

13381-GC4-710

Unavailable

10

PIN, CRANK (YELLOW)

13382-GC4-710

Unavailable

10

PIN, CRANK (WHITE)

13383-GC4-710

Unavailable

10

PIN, CRANK (BLUE)

13384-GC4-710

Unavailable

11

BEARING, CONNECTING ROD LARGE END (RED)

91001-GC4-711

$24.35

11

BEARING, CONNECTING ROD LARGE END (BLUE)

91002-GC4-711

$23.29

11

BEARING, CONNECTING ROD LARGE END (WHITE)

91003-GC4-711

$21.10

12

BEARING, RADIAL BALL (63/22) This part replaces 91002-KE1-014.

91002-KY4-901

$21.88

12

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$21.88

12

BEARING, RADIAL BALL (63/22) This part replaces 91002-466-008.

91002-KY4-901

$21.88

13

BEARING, CONNECTING ROD SMALL END

91102-GC4-601

$18.28

14

OIL SEAL (22X40X8)

91206-GC4-711

$8.04

15

KEY, WOODRUFF (25X14)

94401-25140

$1.67

16

CLIP, PISTON PIN (14MM)

94601-14000

$0.65
