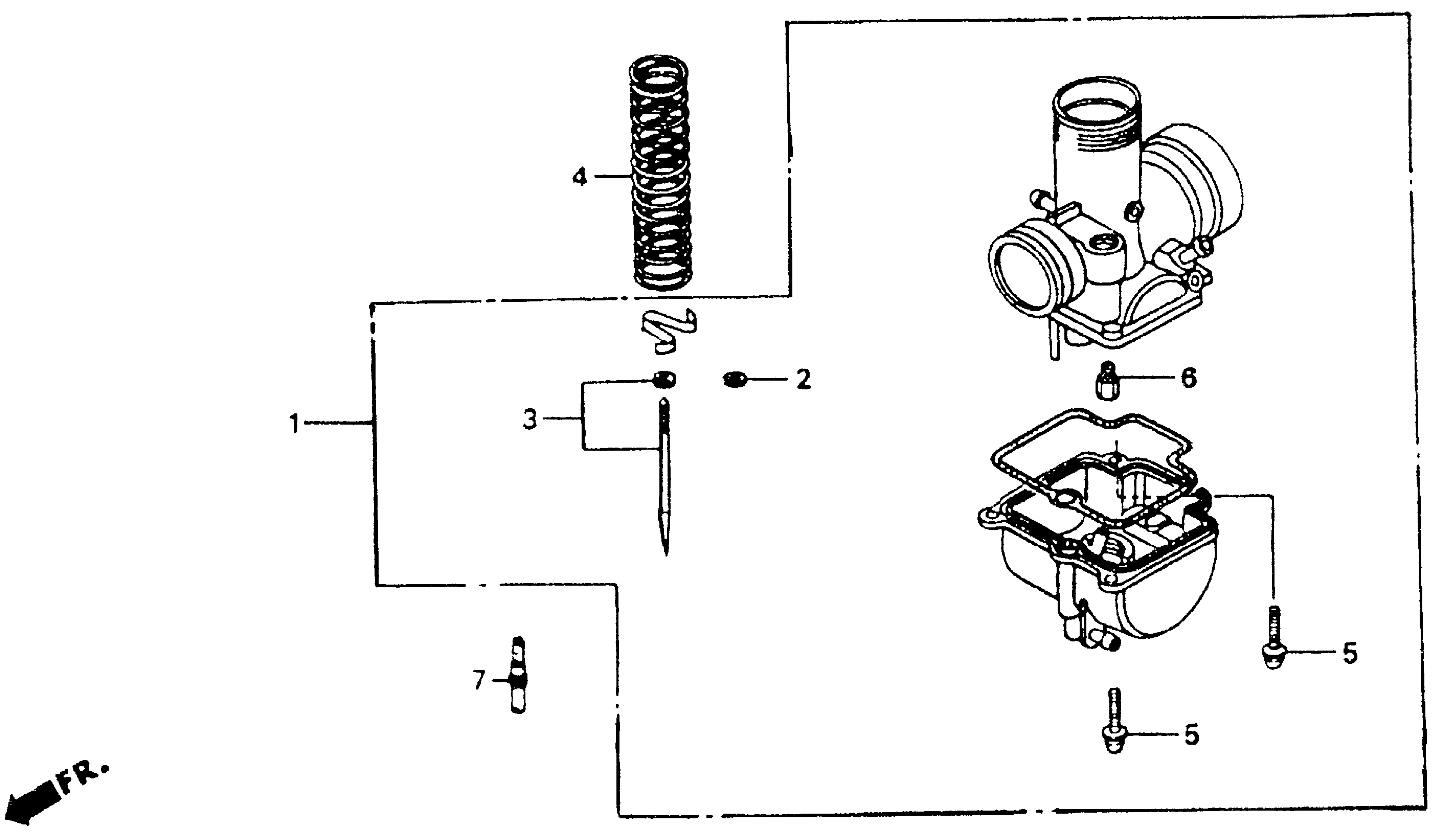

Honda CR80RA (95) MOTORCYCLE, JPN, VIN# JH2HE040-SK200001 CARBURETOR O.P. PARTS KIT Diagram

PARTS KIT, CARBURETOR OPTIONAL | (Optional).

16020-GS2-003

Unavailable

CLIP, BAR | (Optional). This part replaces 16115-169-004.

16115-GHB-610

$2.71

NEEDLE SET, JET (24NAAC) | (Optional). This part replaces 16012-GC4-601.

16204-GBF-B01

Unavailable

NEEDLE SET, JET (24NAAA) | (Optional). This part replaces 16201-GC4-601.

16012-GBF-B01

Unavailable

NEEDLE SET, JET (F1345H24NAAE) | (Optional).

16202-GC4-601

Unavailable

NEEDLE SET, JET (24NAAC) | (Optional).

16204-GBF-B01

Unavailable

SPRING, COMPRESSION COIL | (Optional).

16210-GC4-731

Unavailable

SCREW-WASHER (4X16) | (Optional).

93892-04016-08

$0.67

JET, MAIN (#115) | (Optional).

99101-357-1150

$16.79

JET, MAIN (#118) | (Optional).

99101-357-1180

$9.10

JET, MAIN (#120) | (Optional).

99101-357-1200

$18.06

JET, MAIN (#122) | (Optional).

99101-357-1220

$16.15

JET, MAIN (#128) | (Optional).

99101-357-1280

$8.26

JET, MAIN (#130) | (Optional).

99101-357-1300

$7.68

JET, MAIN (#132) | (Optional).

99101-357-1320

$8.26

JET, MAIN (#135) | (Optional).

99101-357-1350

$8.26

JET, SLOW (#55) | (Optional).

99103-399-0550

$13.01

JET, SLOW (#50) | (Optional).

99103-440-0500

Unavailable

JET, SLOW (#55) | (Optional). This part replaces 99103-440-0550.

99103-399-0550

$13.01
