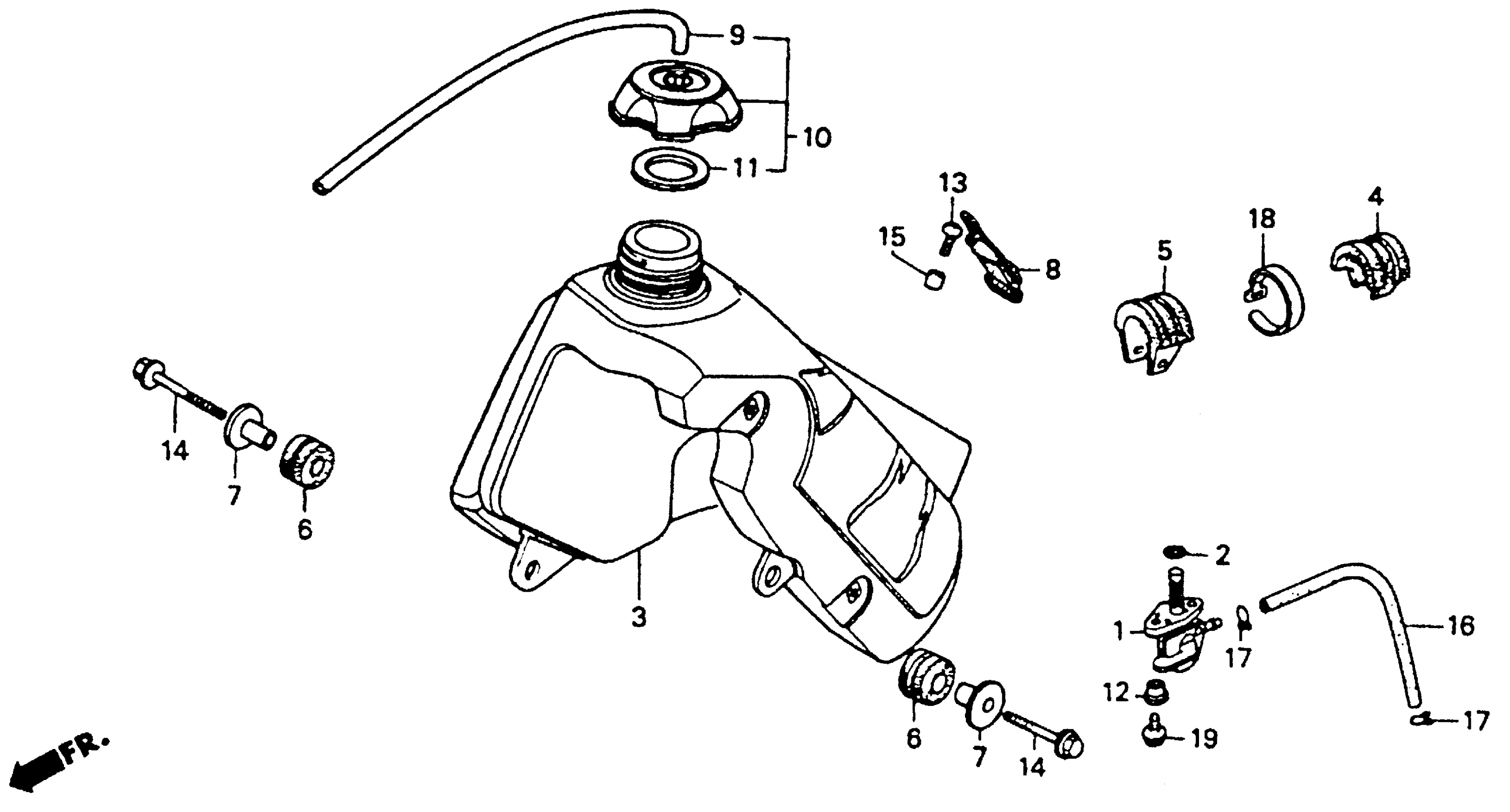

Honda CR80RA (94) MOTORCYCLE, JPN, VIN# JH2HE040-RK100001 TO JH2HE040-RK101555 FUEL TANK Diagram

PETCOCK ASSY.

16950-GS2-911

$39.22

O-RING (11.8X3.55)

16997-467-000

$2.11

TANK SET, FUEL (TYPE1) (WL)

17500-GBF-700ZA

Unavailable

RUBBER A, TANK SETTING

17504-GC4-700

Unavailable

RUBBER, TANK SETTING

17504-GC4-830

$12.84

RUBBER, FUEL TANK SETTING

17508-KA3-710

$8.75

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

BAND, RR. TANK This part replaces 17516-GS2-700.

17516-GBF-830

$31.28

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

CAP ASSY., FUEL TANK

17620-ML3-840

Unavailable

GASKET, FUEL TANK CAP

17624-KA4-000

$5.94

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-710.

90131-S0X-A00

$1.49

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-730.

90131-S0X-A00

$1.49

SCREW, TRUSS (M6X16) This part replaces 90110-KA3-830.

90131-S0X-A00

$1.49

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.49

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

COLLAR (6.2X6)

90516-KA3-830

Unavailable

BULK HOSE, FUEL (5.5X3000) (5.5X105) (BULK HOSE: 95001-55008)

95001-55003-60M

$47.32

CLIP, TUBE (B10)

95002-02100

$1.90

BAND A2, CABLE

95014-61200

$2.33

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
