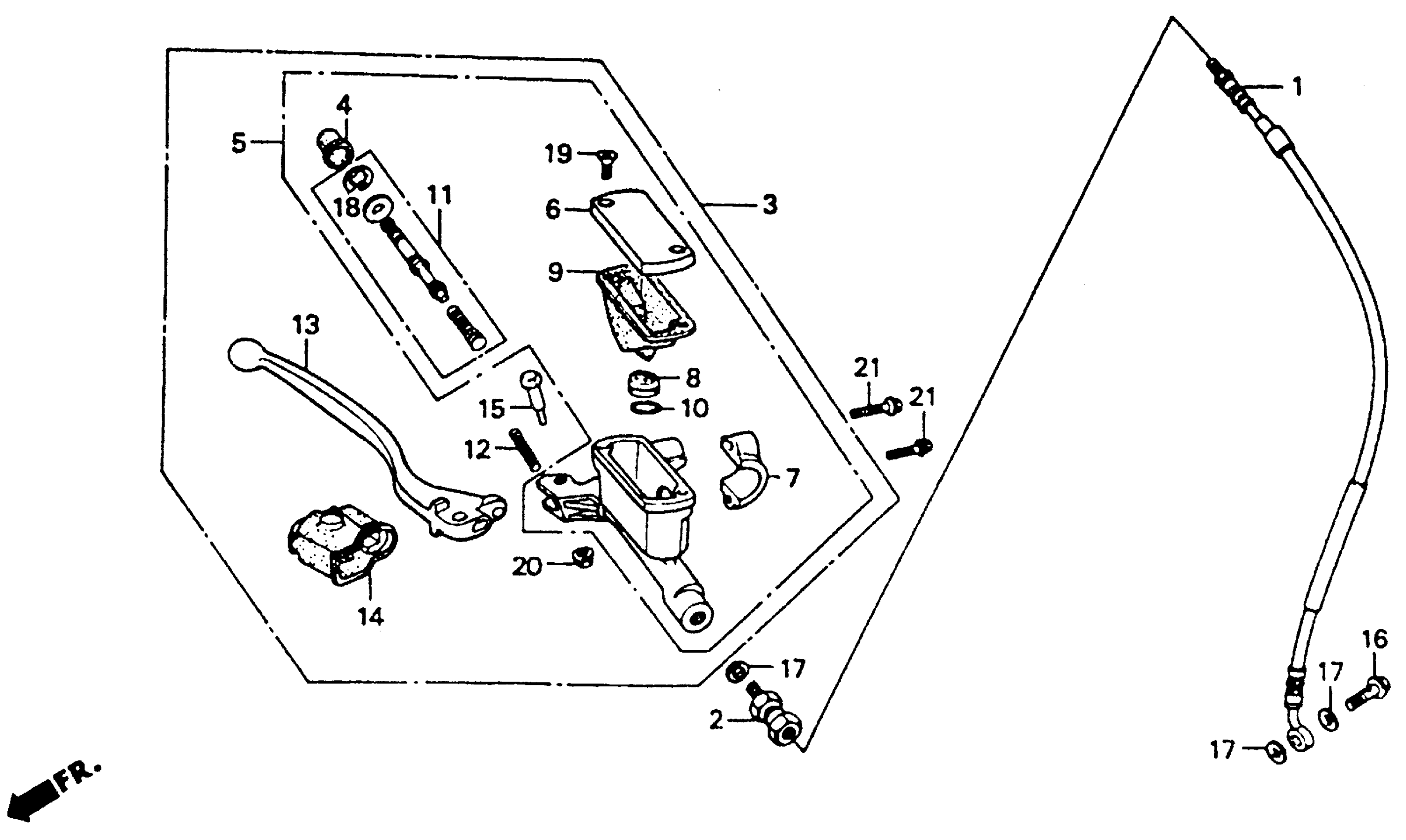

Honda CR80RA (92) MOTORCYCLE, JPN, VIN# JH2HE040-NK900001 TO JH2HE040-MK900719 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE | (Optional).

45125-GS2-305

Unavailable

HOSE, FR. BRAKE

45125-GS2-902

Unavailable

JOINT, BRAKE HOSE

45127-KZ4-003

Unavailable

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-KA3-305)

45500-KA3-831

Unavailable

BOOT

45504-410-003

$12.16

CAP, MASTER CYLINDER This part replaces 45513-KA3-732.

45513-KCE-006

Unavailable

CAP, MASTER CYLINDER

45513-KCE-006

Unavailable

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

SEPARATOR

45518-KA3-731

$12.17

DIAPHRAGM

45520-KA3-731

$13.57

RING

45523-KA3-731

$2.92

PISTON SET, MASTER CYLINDER

45530-KA3-831

Unavailable

SPRING, LEVER RETURN

45552-KA3-831

Unavailable

LEVER, R. HANDLEBAR

53175-KA3-731

Unavailable

COVER, R. HANDLEBAR

53176-KA3-831

Unavailable

BOLT, HANDLEBAR PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
