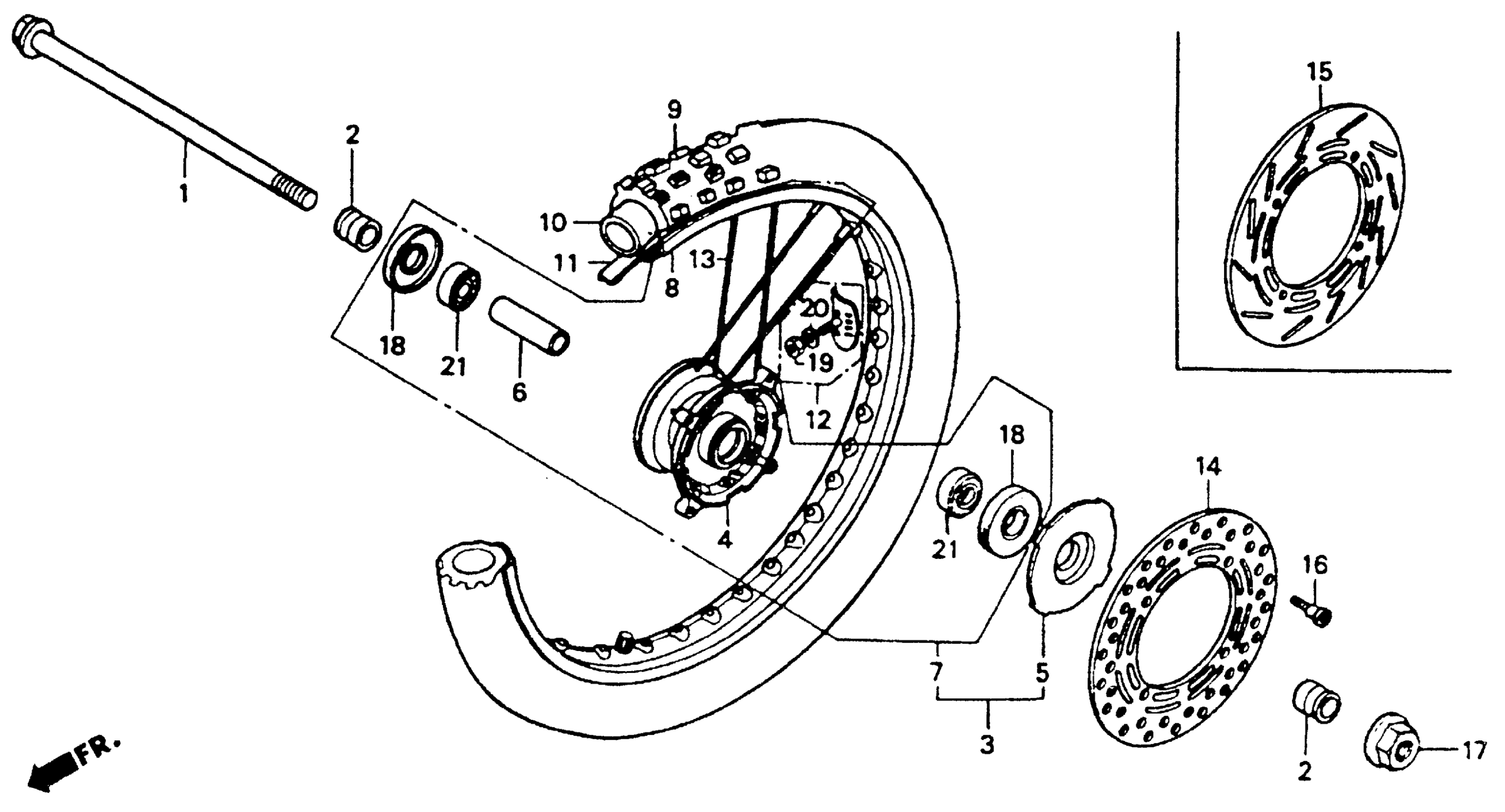

Honda CR80RA (91) MOTORCYCLE, JPN, VIN# JH2HE040-MK800001 TO JH2HE040-MK801513 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL

44301-GS2-000

Unavailable

2

COLLAR, FR. WHEEL SIDE

44311-GC4-600

$11.31

3

RIM ASSY., FR. WHEEL

446A5-GC4-601

Unavailable

4

HUB, FR. WHEEL

44601-GC4-600

Unavailable

5

COVER, FR. HUB

44610-GC4-600

$8.43

6

COLLAR, FR. AXLE DISTANCE

44620-GC4-600

Unavailable

8

RIM, FR. WHEEL

44701-GC4-601

Unavailable

9

TIRE, FR. (70/100-17) (40M M23) (BS)

44711-GS2-771

Unavailable

10

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

10

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

10

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-383-004.

42712-102-761

Unavailable

10

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-601.

42712-102-761

Unavailable

10

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-611.

42712-102-761

Unavailable

10

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-831.

42712-102-761

Unavailable

10

TUBE, TIRE (3.00-17) (NITTO)

44712-303-006

Unavailable

11

FLAP, TIRE (17) (BS)

44713-GC4-003

$6.39

12

STOPPER, BEAD (1.40)

44715-GC4-000

$33.31

13

SPOKE SET, FR. This part replaces 448A0-GC4-602.

44610-GS2-405

Unavailable

13

SPOKE SET, FR.

44610-GS2-405

Unavailable

15

DISK, FR. BRAKE

45351-GS2-700

Unavailable

16

BOLT, DISK (6X17)

90105-KS6-700

$5.20

17

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

18

DUST SEAL (32X21X5)

90745-GC4-701

$5.05

18

DUST SEAL (32X21X5.5) (ARAI)

90745-GC4-702

$5.05

19

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, SPRING (8MM)

94111-08000

$1.49

21

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28
