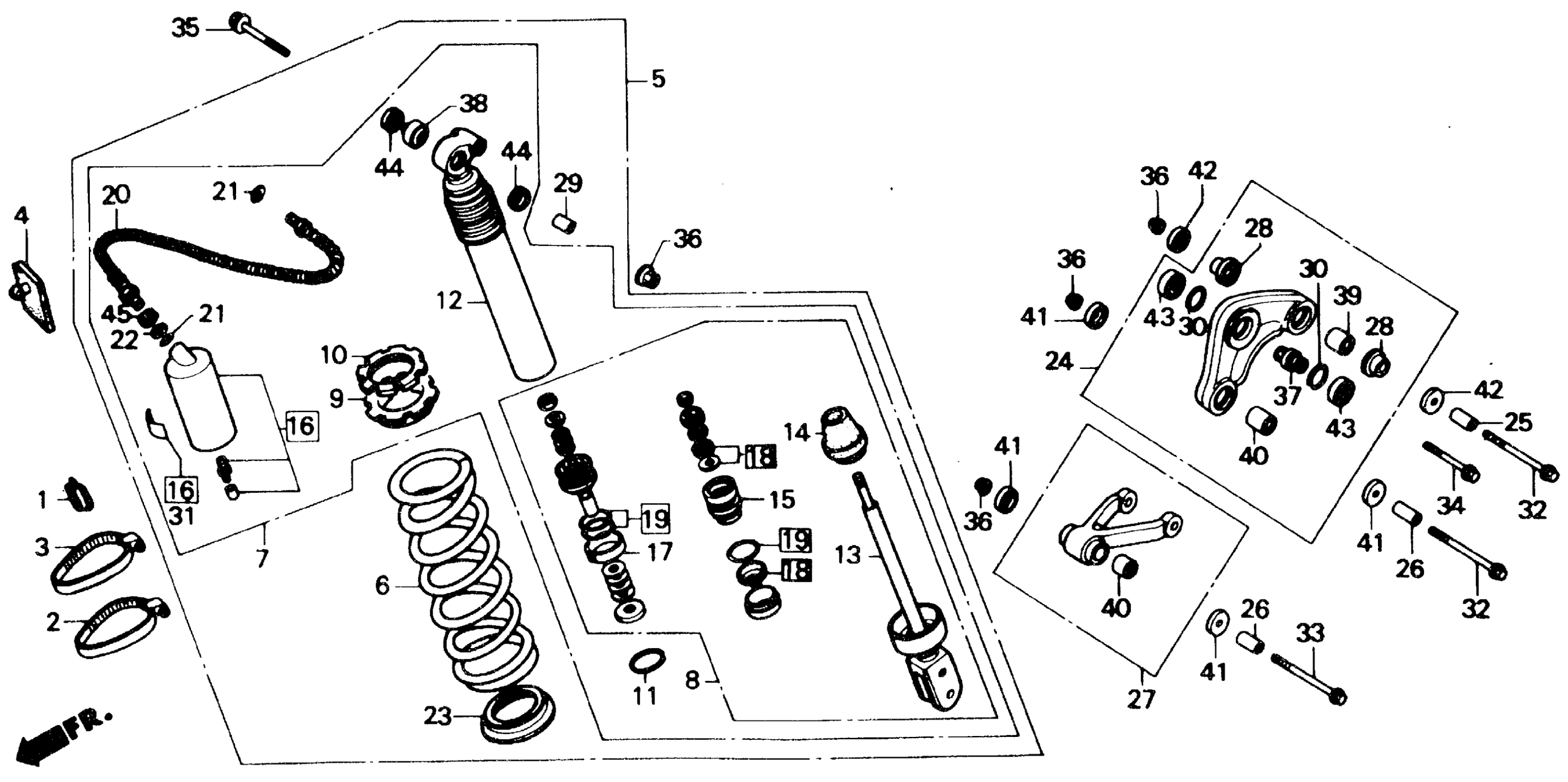

Honda CR80RA (89) MOTORCYCLE, JPN, VIN# JH2HE040-KK600001 SHOCK ABSORBER 88-89 Diagram

#

Description
Price

1

RUBBER, SUB-TANK SETTING

50251-GC4-830

Unavailable

2

BAND, SUB-TANK

50252-GC4-600

Unavailable

3

BAND, SUB-TANK

50252-GC4-830

Unavailable

4

RUBBER, SUB-TANK MOUNTING

50255-GC4-600

Unavailable

5

SHOCK ASSY., RR.

52400-GS2-773

Unavailable

6

SPRING, RR. SHOCK ABSORBER (44N/MM,4.4KGF/MM) (SHOWA)

52401-GS2-701

Unavailable

6

SPRING, RR. SHOCK ABSORBER (4.0KG/MM) (YELLOW) (SHOWA) | (Optional).

52401-GS2-751

Unavailable

6

SPRING, RR. SHOCK ABSORBER (4.8KG/MM) (BLACK) (SHOWA) | (Optional).

52403-GS2-701

Unavailable

7

DAMPER, RR. (SHOWA)

52410-GS2-773

Unavailable

8

ROD, PISTON (SHOWA)

52421-GS2-701

Unavailable

9

ADJUSTER, SPRING

52422-GC4-701

Unavailable

10

NUT, ADJUSTER

52423-GC4-701

Unavailable

11

RING, STOPPER

52424-GC4-701

Unavailable

12

CASE, RR. SHOCK ABSORBER (SHOWA)

52425-GS2-701

Unavailable

13

ROD

52426-GS2-003

Unavailable

14

RUBBER, STOPPER

52427-GC4-601

$17.97

15

CASE, ROD GUIDE

52429-GS2-003

Unavailable

16

SUB-TANK ASSY. (SHOWA) (NOT AVAILABLE)

52430-GS2-772

Unavailable

17

RING, PISTON

52431-GC4-003

Unavailable

18

OIL SEAL SET

52436-GC4-305

$15.27

19

O-RING SET

52437-GC4-305

Unavailable

20

HOSE, JOINT

52440-GC4-601

Unavailable

21

O-RING (9.8X1.9)

52441-MA0-003

Unavailable

22

WASHER (10MM)

52442-HA2-003

Unavailable

23

SEAT, RR. SHOCK ABSORBER SPRING

52459-GC4-003

Unavailable

24

ARM ASSY., SHOCK ABSORBER

52460-GS2-700

Unavailable

25

COLLAR, CUSHION ARM

52464-GC4-830

Unavailable

26

COLLAR, CUSHION ARM

52464-GS2-700

Unavailable

27

ROD ASSY., SHOCK CONNECTING

52470-GS2-700

Unavailable

28

BUSH, SHOCK CONNECTING ROD THRUST

52472-KA3-831

Unavailable

29

COLLAR, RUBBER (UPPER)

52486-GS2-700

Unavailable

30

RING, STOPPER

52487-GC4-830

Unavailable

31

LABEL, RR. DAMPER WARNING

87516-MK2-681

Unavailable

32

BOLT, FLANGE (10X71)

90129-KAS-900

$9.74

32

BOLT, FLANGE (10X71) This part replaces 90151-GC4-831.

90129-KAS-900

$9.74

33

BOLT, FLANGE (10X65)

90151-MG3-000

$12.61

34

BOLT, FLANGE (10X40)

90153-GC4-731

Unavailable

35

BOLT, FLANGE (10X58) This part replaces 90182-KA3-730.

90153-KK0-000

$7.27

36

NUT, AXLE (10MM)

90304-GA6-003

$2.89

37

BEARING, SPHERICAL (10)

91074-GS2-701

Unavailable

38

BEARING, NEEDLE (16X22X12)

91077-GS2-702

$19.89

39

BEARING, NEEDLE (15.3X23.3X22)

91079-GC4-831

Unavailable

40

BEARING, NEEDLE (15X21X22)

91079-GS2-701

Unavailable

41

SEAL, CUSHION ARM PIVOT This part replaces 91262-GS2-701.

91262-GS2-702

Unavailable

41

SEAL, CUSHION ARM PIVOT

91262-GS2-702

Unavailable

42

SEAL, RUBBER CONNECTING ROD PIVOT

91262-KA3-831

Unavailable

43

DUST SEAL, RR. SHOCK ABSORBER ARM

91351-GC4-831

Unavailable

43

DUST SEAL, RR. SHOCK ABSORBER ARM

91351-GC4-832

Unavailable

44

DUST SEAL, SHOCK (UPPER)

91351-GS2-701

$4.48

45

NUT, HEX. (12MM)

94002-12000-0S

$2.06
