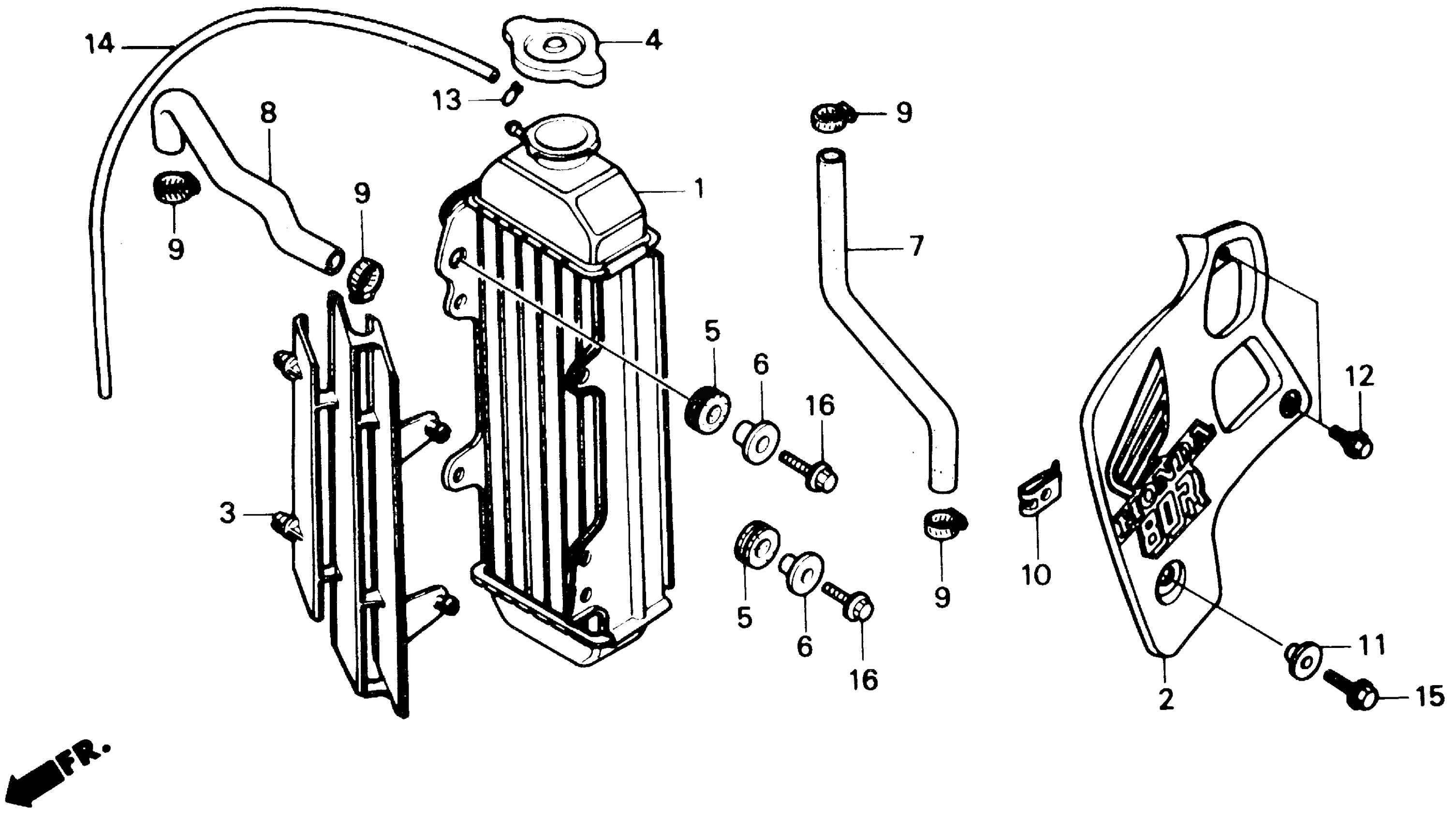

Honda CR80RA (89) MOTORCYCLE, JPN, VIN# JH2HE040-KK600001 RADIATOR 88-89 Diagram

RADIATOR This part replaces 19010-GS2-000.

19010-GS2-600

Unavailable

RADIATOR

19010-GS2-600

Unavailable

SHROUD SET, RADIATOR *R134* (TYPE1) (WL) (FIGHTING RED) (NOT AVAILABLE)

19030-GS2-790ZA

Unavailable

GRILLE, RADIATOR

19034-GBF-J20

Unavailable

GRILLE, RADIATOR This part replaces 19034-GC4-600.

19034-GBF-J20

Unavailable

CAP, RADIATOR This part replaces 19037-KV3-003.

19045-MZ1-621

$50.26

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA3-830.

19052-MAC-680

$5.14

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

HOSE A, WATER

19061-GM7-700

Unavailable

HOSE B, WATER

19062-GC4-830

Unavailable

CLAMP, WATER HOSE (A)

19505-KS6-700

$11.06

NUT, SPRING (6MM)

19508-KA3-710

$5.72

COLLAR (6X23)

19509-KA3-730

$6.99

BOLT, SHROUD SETTING

90101-ML3-840

$4.24

CLIP, TUBE (B8)

95002-02080

$1.80

BULK HOSE, VINYL (6X9X1000) (6X9X600)

95003-14001-10M

$3.30

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
