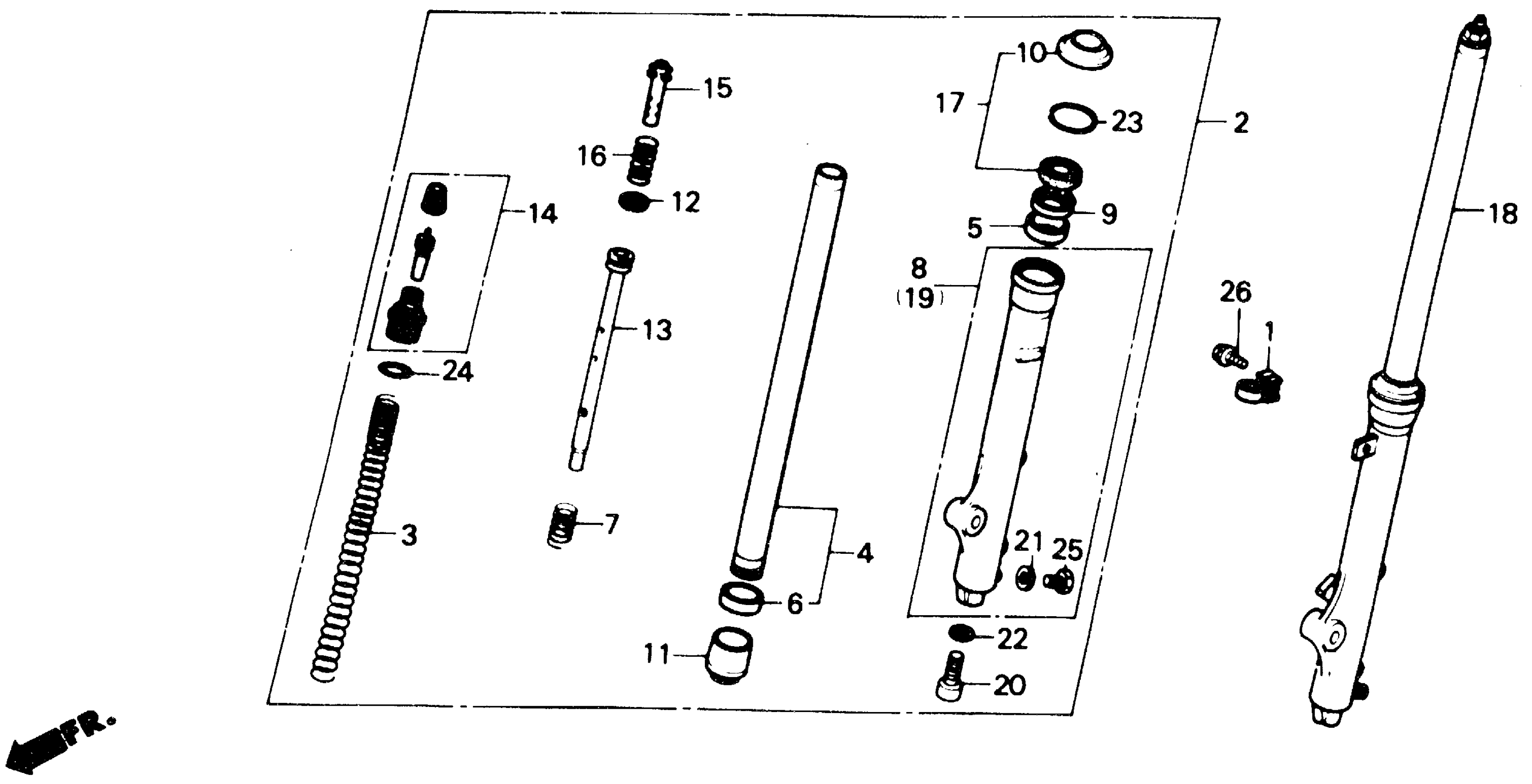

Honda CR80RA (89) MOTORCYCLE, JPN, VIN# JH2HE040-KK600001 FRONT FORK 86-89 Diagram

#

Description
Price

1

CLAMP, BRAKE HOSE

45461-GC4-600

Unavailable

1

CLAMP, FR. BRAKE CABLE | (Optional).

45461-GC4-730

Unavailable

2

FORK ASSY., R. FR. (SHOWA)

51400-GS2-771

Unavailable

3

SPRING, FR. FORK (0.285KG/MM) (SHOWA)

51401-GS2-701

Unavailable

3

SPRING, FR. FORK (0.261KG/MM) (ONE GROOVE) (SHOWA) | (Optional).

51402-GS2-701

Unavailable

3

SPRING, FR. FORK (0.31KG/MM) (2-GRV) (SHOWA) | (Optional).

51403-GS2-701

Unavailable

4

PIPE, FR. FORK (SHOWA) This part replaces 51410-GS2-003.

51410-GW6-003

Unavailable

4

PIPE, FR. FORK (SHOWA)

51410-GW6-003

Unavailable

5

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$19.63

6

BUSH, SLIDER This part replaces 51415-KL4-951.

51415-MBV-711

$17.77

7

SPRING, REBOUND

51412-GS2-003

Unavailable

8

CASE, R. (LOWER)

51420-GS2-003

Unavailable

9

RING, BACK-UP

51412-422-003

$7.49

10

DUST SEAL (35MM)

51425-KT2-003

Unavailable

11

PIECE, OIL LOCK

51432-GS2-003

Unavailable

12

RING, PISTON

51437-MA0-771

Unavailable

13

PIPE, SEAT

51440-GS2-003

Unavailable

14

BOLT ASSY., FR. FORK

51450-GS2-003

Unavailable

15

ROD, TENSION CONTROL VALVE

51480-GS2-701

Unavailable

16

SPRING, LOAD SENSING

51481-GS2-701

Unavailable

17

SEAL SET, FR. FORK

51490-GS2-305

$35.57

17

SEAL SET, FR. FORK

51490-KT2-305

$35.57

18

FORK ASSY., L. FR. (SHOWA)

51500-GS2-771

Unavailable

19

CASE, L. (LOWER)

51520-GS2-003

Unavailable

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

RING, OIL SEAL STOPPER

51447-KL4-951

$4.03

24

O-RING

91317-381-771

Unavailable

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

26

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
