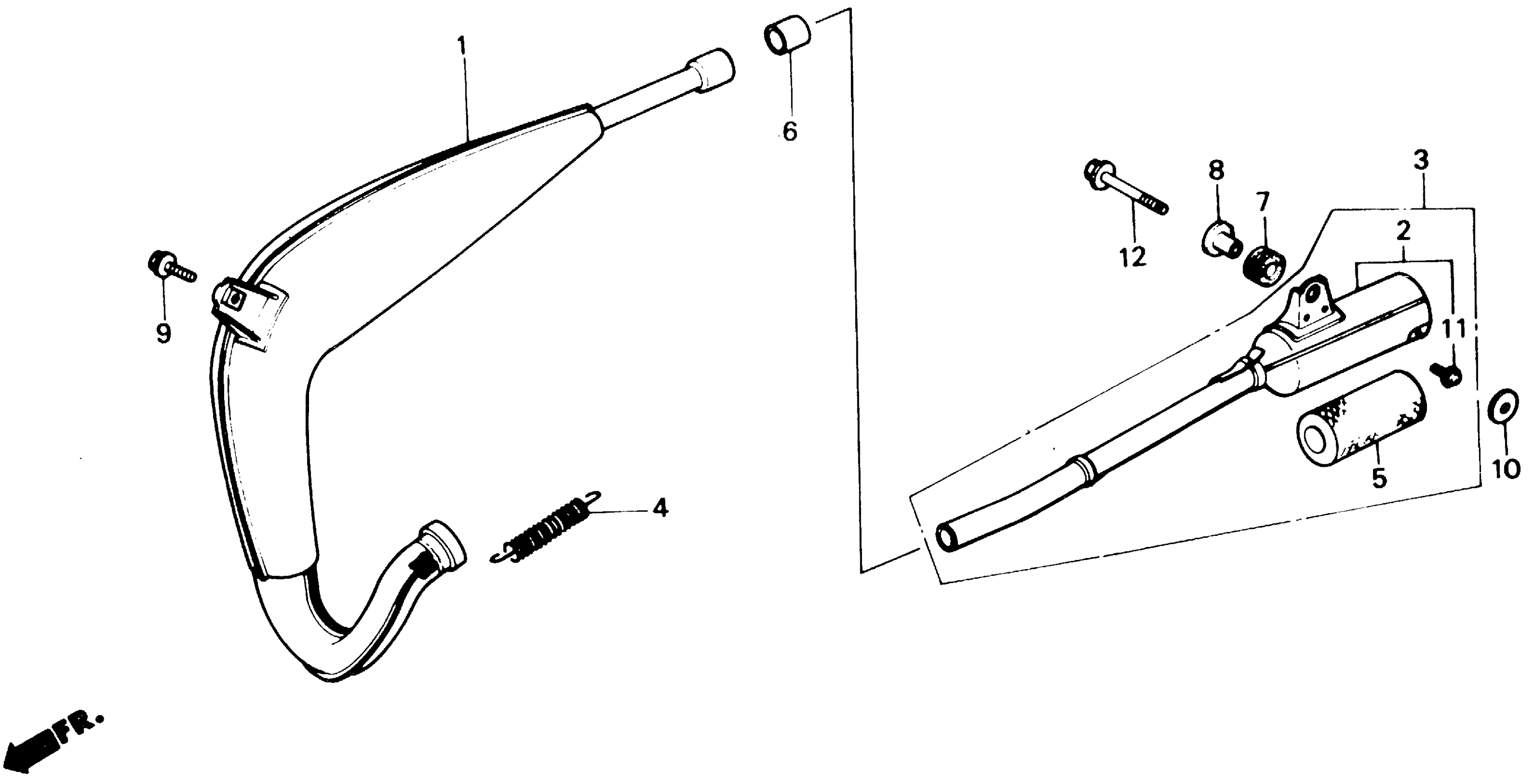

Honda CR80RA (89) MOTORCYCLE, JPN, VIN# JH2HE040-KK600001 EXPANSION CHAMBER 86-89 Diagram

#

Description

Price

1

MUFFLER, EX.

18300-GS2-000

Unavailable

3

MUFFLER

18330-GS2-700

Unavailable

4

SPRING, EX. PIPE

18332-KS6-000

$12.45

5

WOOL, GLASS

18350-GS2-700

Unavailable

6

SEAL, MUFFLER

18361-GS2-000

$21.16

7

RUBBER, RADIATOR SETTING

19051-KA3-710

$5.05

8

COLLAR, RADIATOR SETTING

19052-KA3-710

$6.91

9

BOLT, FLANGE (8X20) This part replaces 90133-KA3-730.

96300-08020-00

$1.57

9

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

9

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

9

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57

10

WASHER, TANK RUBBER

90503-898-000

$2.39

11

SCREW-WASHER (5X10)

93892-05010-00

$1.49

12

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
