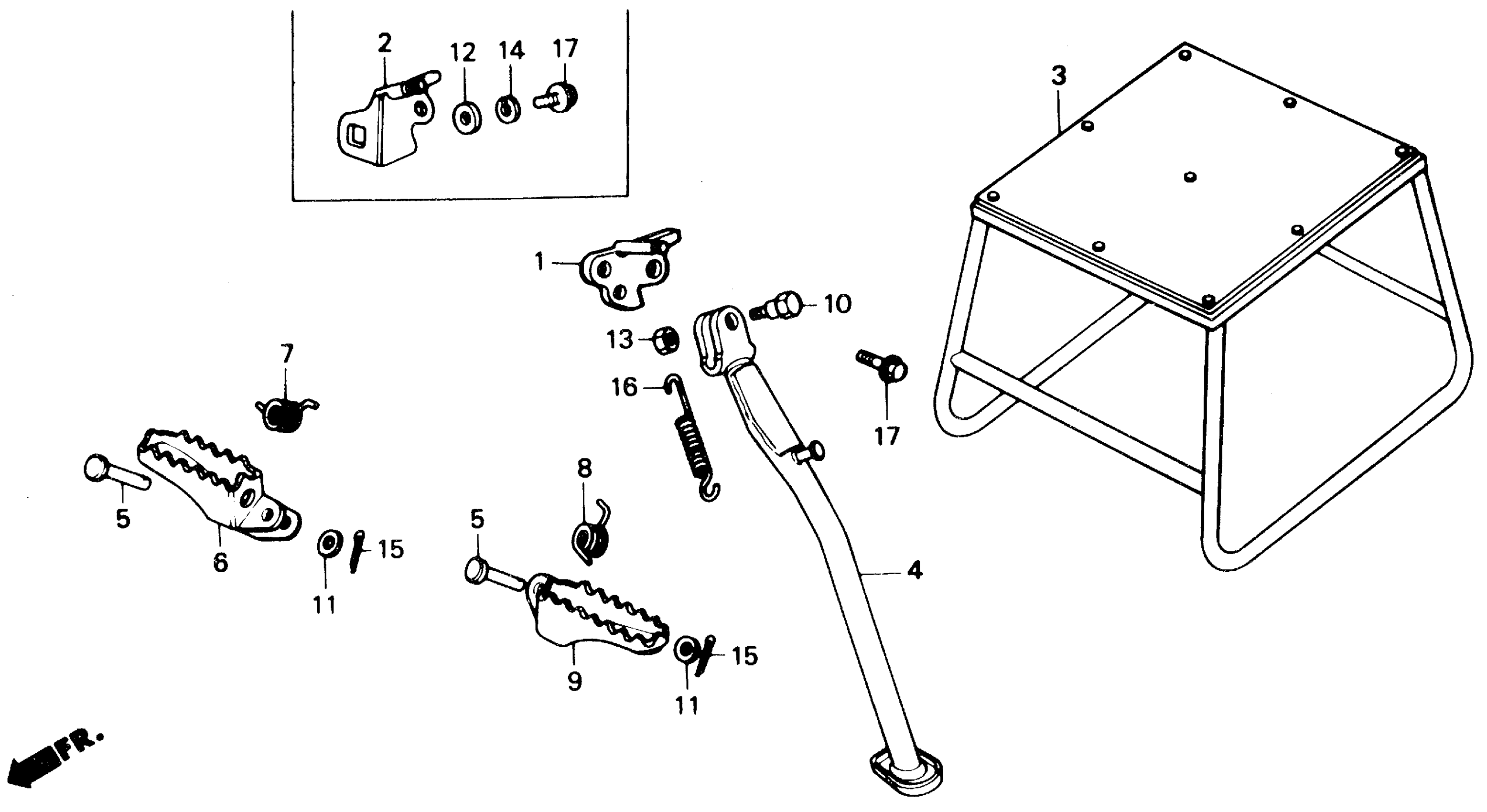

Honda CR80RA (86) MOTORCYCLE, JPN, VIN# JH2HE040-GK300048 TO JH2HE040-GK306849 STEP Diagram

#

Description
Price

1

BRACKET, SIDE STAND

50190-GC4-600

Unavailable

3

WORKSTAND (14") (NOT AVAILABLE) | (Optional).

50500-GC4-830

Unavailable

4

BAR, SIDE STAND (NOT AVAILABLE)

50530-GC4-600

Unavailable

5

PIN, STEP BAR JOINT This part replaces 50603-GC4-830.

50603-GW6-000

Unavailable

5

PIN, STEP BAR JOINT

50603-GW6-000

Unavailable

6

ARM, R. STEP (NOT AVAILABLE)

50612-GC4-830

Unavailable

7

SPRING, R. STEP RETURN This part replaces 50617-GM7-700.

50617-GW6-720

Unavailable

7

SPRING, R. STEP RETURN

50617-GW6-720

Unavailable

8

SPRING, L. STEP RETURN

50618-GM7-700

Unavailable

9

ARM, L. STEP (NOT AVAILABLE)

50642-GC4-830

Unavailable

10

BOLT, SIDE STAND

90108-GC4-700

Unavailable

11

WASHER (10.2MM)

90401-430-000

$1.64

13

NUT, HEX. (8MM)

94002-08000-0S

$1.49

13

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49

15

PIN, SPLIT (2.5X30) This part replaces 94201-25150.

94201-25300

$1.49

15

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

15

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

15

PIN, COTTER (2.5MM)

94201-25300

$1.49

16

SPRING D, SIDE STAND

95014-72402

$2.92

17

BOLT, FLANGE (8X16)

96300-08016-00

$1.49

17

BOLT, FLANGE (8X16) This part replaces 96400-08016-00.

96300-08016-00

$1.49

17

BOLT, FLANGE (8X16) This part replaces 96500-08016-00.

96300-08016-00

$1.49
