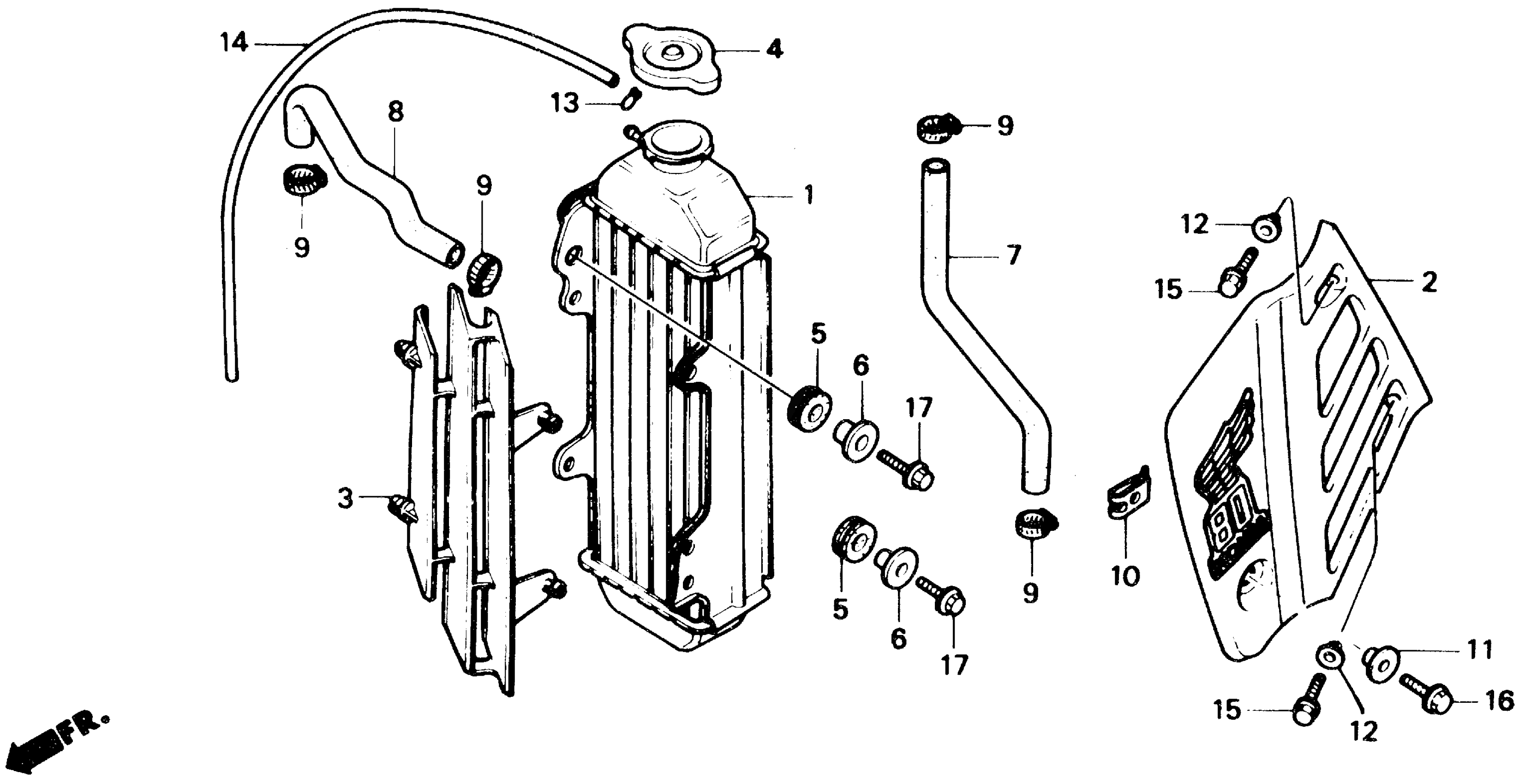

Honda CR80RA (86) MOTORCYCLE, JPN, VIN# JH2HE040-GK300048 TO JH2HE040-GK306849 RADIATOR 85-87 Diagram

RADIATOR

19010-GC4-601

Unavailable

SHROUD, RADIATOR *R119* (FLASH RED) (NOT AVAILABLE)

19030-GM7-700ZA

Unavailable

GRILLE, RADIATOR

19034-GBF-J20

Unavailable

GRILLE, RADIATOR This part replaces 19034-GC4-600.

19034-GBF-J20

Unavailable

CAP, RADIATOR This part replaces 19037-KA4-701.

19045-MZ1-621

$50.26

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING This part replaces 19052-KA3-830.

19052-MAC-680

$5.14

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

HOSE A, WATER (NOT AVAILABLE)

19061-GC4-730

Unavailable

HOSE B, WATER

19062-GC4-830

Unavailable

CLAMP A, WATER HOSE This part replaces 19507-KA4-700.

19505-KS6-700

$11.06

CLAMP, WATER HOSE (A)

19505-KS6-700

$11.06

NUT, SPRING (6MM)

19508-KA3-710

$5.72

COLLAR (6X23)

19509-KA3-730

$6.99

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

CLIP, TUBE (B8)

95002-02080

$1.80

BULK HOSE, VINYL (6X9X1000) (6X9X600)

95003-14001-10M

$3.30

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
