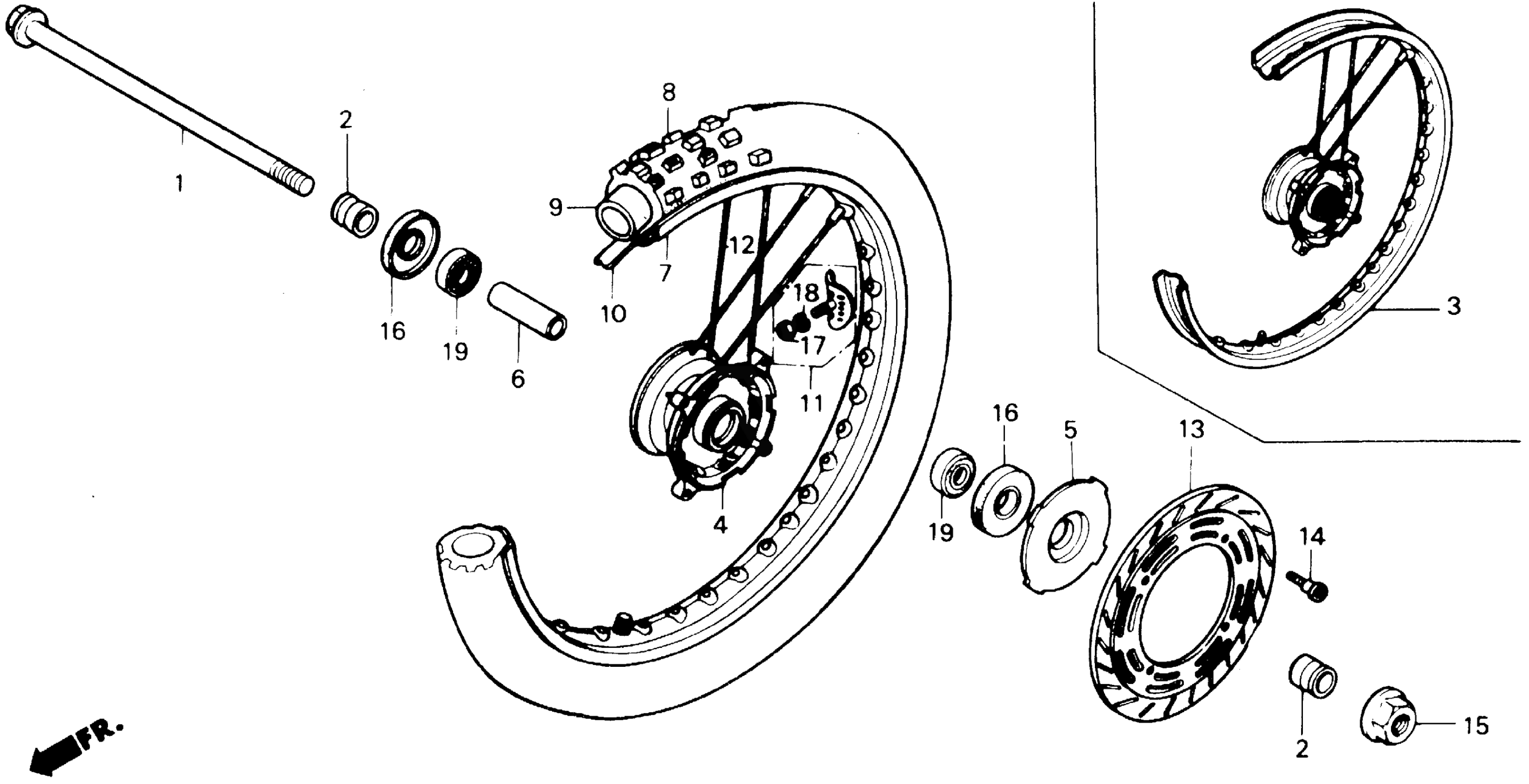

Honda CR80RA (86) MOTORCYCLE, JPN, VIN# JH2HE040-GK300048 TO JH2HE040-GK306849 FRONT WHEEL 86-89 Diagram

AXLE, FR. WHEEL

42301-GB2-720

Unavailable

AXLE, FR. WHEEL This part replaces 44301-GC4-830.

42301-GB2-720

Unavailable

COLLAR, FR. WHEEL SIDE

44311-GC4-600

$11.31

RIM ASSY., FR. WHEEL | (Optional).

446A5-GC4-601

Unavailable

HUB, FR. WHEEL

44601-GC4-600

Unavailable

COVER, FR. HUB

44610-GC4-600

$8.43

COLLAR, FR. AXLE DISTANCE

44620-GC4-600

Unavailable

RIM, FR. WHEEL

44701-GC4-601

Unavailable

TIRE, FR. (70/100-17) (M6) (IRC) This part replaces 44711-GC4-611.

44711-GS2-751

Unavailable

TIRE, FR. (70/100-17) (M6) (IRC) This part replaces 44711-GS2-671.

44711-GS2-751

Unavailable

TIRE, FR. (70/100-17) (M6) (IRC)

44711-GS2-751

Unavailable

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-383-004.

42712-102-761

Unavailable

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-611.

42712-102-761

Unavailable

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-GC4-831.

42712-102-761

Unavailable

TUBE, TIRE (3.00-17) (NITTO)

44712-303-006

Unavailable

FLAP, TIRE (17) (INOUE) (NOT AVAILABLE)

44713-GC4-671

Unavailable

STOPPER, BEAD (1.40)

44715-GC4-000

$33.31

SPOKE SET, FR.

44610-GS2-405

Unavailable

SPOKE SET, FR. This part replaces 448A0-GC4-602.

44610-GS2-405

Unavailable

DISK, FR. BRAKE This part replaces 45351-GC4-600.

45351-GS2-700

Unavailable

DISK, FR. BRAKE

45351-GS2-700

Unavailable

BOLT, DISK (6X17)

90105-GC4-600

Unavailable

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

DUST SEAL (32X21X5)

90745-GC4-701

$5.05

DUST SEAL (32X21X5.5) (ARAI)

90745-GC4-702

$5.05

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28
