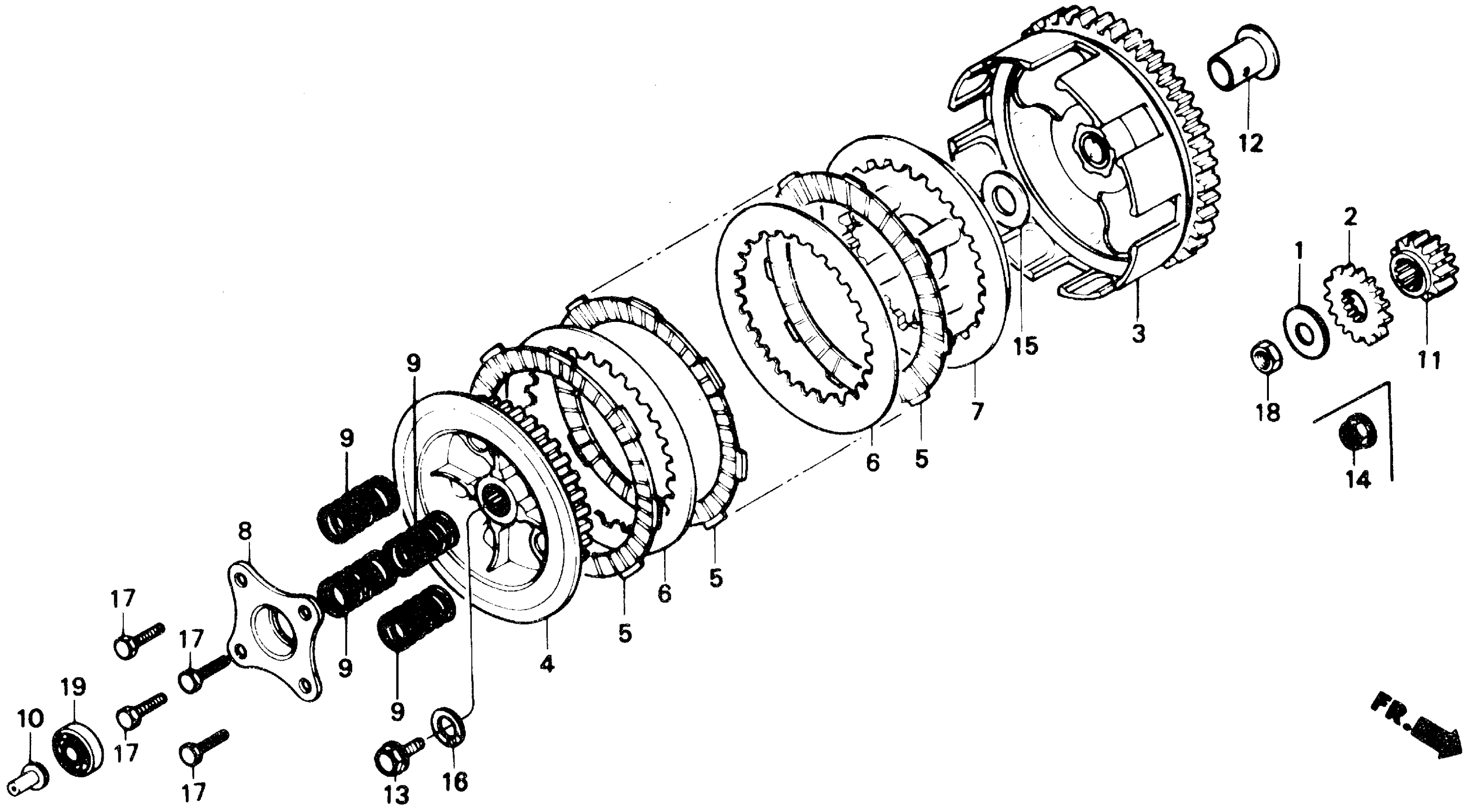

Honda CR80RA (86) MOTORCYCLE, JPN, VIN# JH2HE040-GK300048 TO JH2HE040-GK306849 CLUTCH Diagram

GEAR, WATER PUMP DRIVEN (20T/16T)

19233-GC4-730

$79.69

CLUTCH (OUTER)

22100-GC4-600

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22121-GC4-730

Unavailable

DISK, CLUTCH FRICTION This part replaces 22201-GS2-000.

22201-MR8-000

$14.79

DISK, CLUTCH FRICTION

22201-MR8-000

$14.79

DISK, CLUTCH FRICTION This part replaces 22201-GC4-600.

22201-MR8-000

$14.79

PLATE, CLUTCH This part replaces 22311-GC4-730.

22311-HE0-000

Unavailable

PLATE, CLUTCH

22311-HE0-000

Unavailable

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-GC4-730

Unavailable

PLATE, CLUTCH LIFTER

22361-166-000

Unavailable

SPRING, CLUTCH

22401-GC4-710

Unavailable

ROD, CLUTCH LIFTER

22847-166-000

$12.56

GEAR, PRIMARY DRIVE (17T/16T)

23121-GC4-710

Unavailable

COLLAR (17X32.5)

28242-GC4-600

Unavailable

BOLT, HEX. (10X28)

90002-GC4-710

$5.66

NUT, FLANGE (12MM) This part replaces 90231-397-000.

94050-12000

$1.49

NUT, FLANGE (12MM)

94050-12000

$1.49

WASHER, PLAIN (17MM)

90401-GC4-730

$6.45

WASHER, SPRING (10MM)

90403-GC4-710

Unavailable

BOLT, HEX. (6X25)

93325-06025-0A

Unavailable

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
