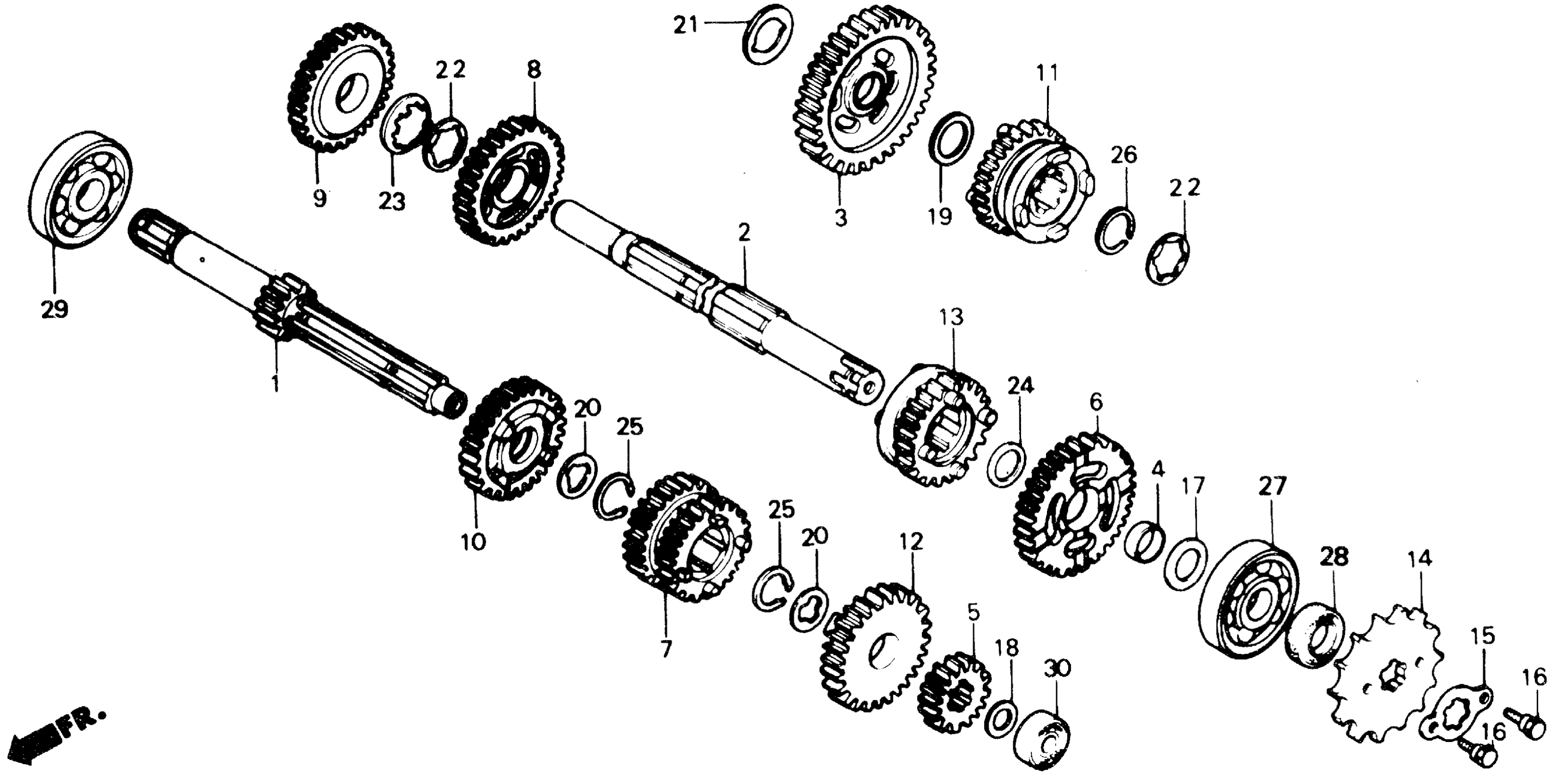

Honda CR80RA (85) MOTORCYCLE, JPN, VIN# JH2HE040-FK200010 TO JH2HE040-FK206049 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23211-GC4-710

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-GC4-700

Unavailable

3

GEAR, COUNTERSHAFT LOW (35T)

23420-GC4-700

Unavailable

4

BUSH (17MM)

23431-166-600

Unavailable

5

GEAR, MAINSHAFT SECOND (18T)

23441-GC4-730

$71.84

6

GEAR, COUNTERSHAFT SECOND (31T)

23451-GC4-730

Unavailable

7

GEAR SET (3RD)

23010-GBF-305

Unavailable

7

GEAR SET (3RD) This part replaces 23461-GBF-830.

23010-GBF-305

Unavailable

7

GEAR SET (3RD) This part replaces 23461-GC4-710.

23010-GBF-305

Unavailable

8

GEAR SET (3RD)

23010-GBF-305

Unavailable

8

GEAR SET (3RD) This part replaces 23471-GBF-830.

23010-GBF-305

Unavailable

8

GEAR SET (3RD) This part replaces 23471-GC4-700.

23010-GBF-305

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (27T) This part replaces 23481-GC4-710.

23481-GC4-600

$62.95

9

GEAR, COUNTERSHAFT FOURTH (27T)

23481-GC4-600

$62.95

10

GEAR, MAINSHAFT FIFTH (25T)

23491-GC4-710

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (25T) This part replaces 23501-GC4-710.

23501-GC4-600

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (25T)

23501-GC4-600

Unavailable

12

GEAR, MAINSHAFT SIXTH (26T)

23511-GC4-710

Unavailable

13

GEAR, COUNTERSHAFT SIXTH (23T) This part replaces 23515-GC4-710.

23515-GC4-711

Unavailable

13

GEAR, COUNTERSHAFT SIXTH (23T)

23515-GC4-711

Unavailable

14

SPROCKET, DRIVE (15T)

23800-098-000

$19.05

15

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

16

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

17

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

18

WASHER, THRUST (12MM)

90452-166-600

$2.39

19

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

20

WASHER, SPLINE (17MM)

90461-115-000

$2.66

21

WASHER, THRUST (15MM)

90463-166-000

Unavailable

22

WASHER A, SPLINE (19MM)

90464-166-000

$3.76

23

WASHER, LOCK (19MM)

90465-166-600

$4.41

24

WASHER, THRUST (17MM)

90466-166-600

$3.49

25

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

26

CIRCLIP (19MM)

90602-166-010

$3.41

27

BEARING, RADIAL BALL (6303)

91007-GC4-701

$33.02

28

OIL SEAL (17X28X7)

91201-415-013

$5.53

29

BEARING, RADIAL BALL (6204)

96120-62040-00

Unavailable

30

BEARING, RADIAL BALL (6001)

96140-60010-00

$11.61
