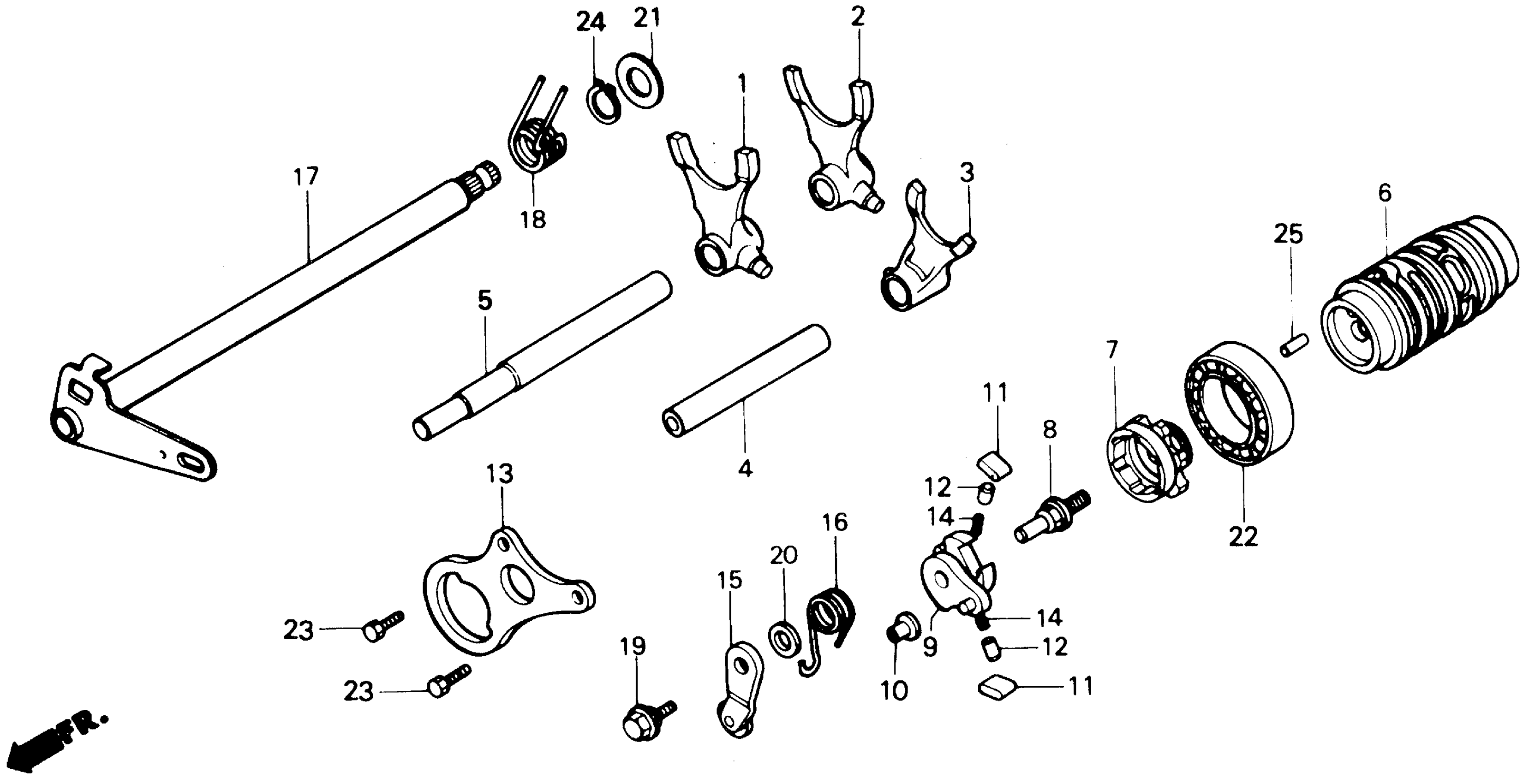

Honda CR80RA (85) MOTORCYCLE, JPN, VIN# JH2HE040-FK200010 TO JH2HE040-FK206049 SHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT This part replaces 24210-GC4-711.

24211-GBF-B40

Unavailable

1

FORK, R. GEARSHIFT

24211-GBF-B40

Unavailable

1

FORK, R. GEARSHIFT This part replaces 24211-GBF-830.

24211-GBF-B40

Unavailable

2

FORK, L. GEARSHIFT

24221-GBF-B40

Unavailable

2

FORK, L. GEARSHIFT This part replaces 24221-GBF-830.

24221-GBF-B40

Unavailable

2

FORK, L. GEARSHIFT This part replaces 24221-GC4-711.

24221-GBF-B40

Unavailable

3

FORK, CENTER GEARSHIFT This part replaces 24230-GC4-711.

24231-GBF-B40

Unavailable

3

FORK, CENTER GEARSHIFT This part replaces 24231-GBF-830.

24231-GBF-B40

Unavailable

4

MAINSHAFT, GEARSHIFT FORK

24265-GC4-710

$17.79

5

COUNTERSHAFT, GEARSHIFT FORK

24266-GC4-710

Unavailable

6

DRUM, GEARSHIFT

24301-GC4-730

Unavailable

7

CENTER, SHIFT DRUM

24312-KA3-741

$63.47

8

PIN, SHIFTER

24315-KA3-710

$19.43

9

SHIFTER, DRUM

24320-GC4-730

Unavailable

10

COLLAR, SHIFTER This part replaces 24322-KA3-740.

24322-HA0-000

$5.23

10

COLLAR, SHIFTER

24322-HA0-000

$5.23

11

PAWL, RATCHET

24324-KA3-740

Unavailable

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$4.95

12

PLUNGER, PAWL

24326-360-010

$4.95

13

PLATE, GUIDE

24328-GC4-730

$18.09

14

SPRING, PAWL PLUNGER

24329-KA3-740

$2.71

15

STOPPER, DRUM

24430-KA3-740

$20.10

16

SPRING, DRUM STOPPER

24435-KA3-710

Unavailable

17

SPINDLE, GEARSHIFT

24610-GC4-710

$100.99

18

SPRING, SHIFT RETURN

24651-KA3-710

Unavailable

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.07

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.07

20

WASHER, DRUM STOPPER

90417-360-000

$1.60

21

WASHER B, THRUST (14MM)

90428-958-000

$4.45

22

BEARING, RADIAL BALL (25X42X9) (TOYO) This part replaces 91004-GC4-730.

91004-GC4-731

$25.28

22

BEARING, RADIAL BALL (25X42X9) (TOYO)

91004-GC4-731

$25.28

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.35

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.35

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.35

24

CIRCLIP (OUTER) (14MM)

94510-14000

$0.94

25

ROLLER (4X8)

96220-40080

$0.47
