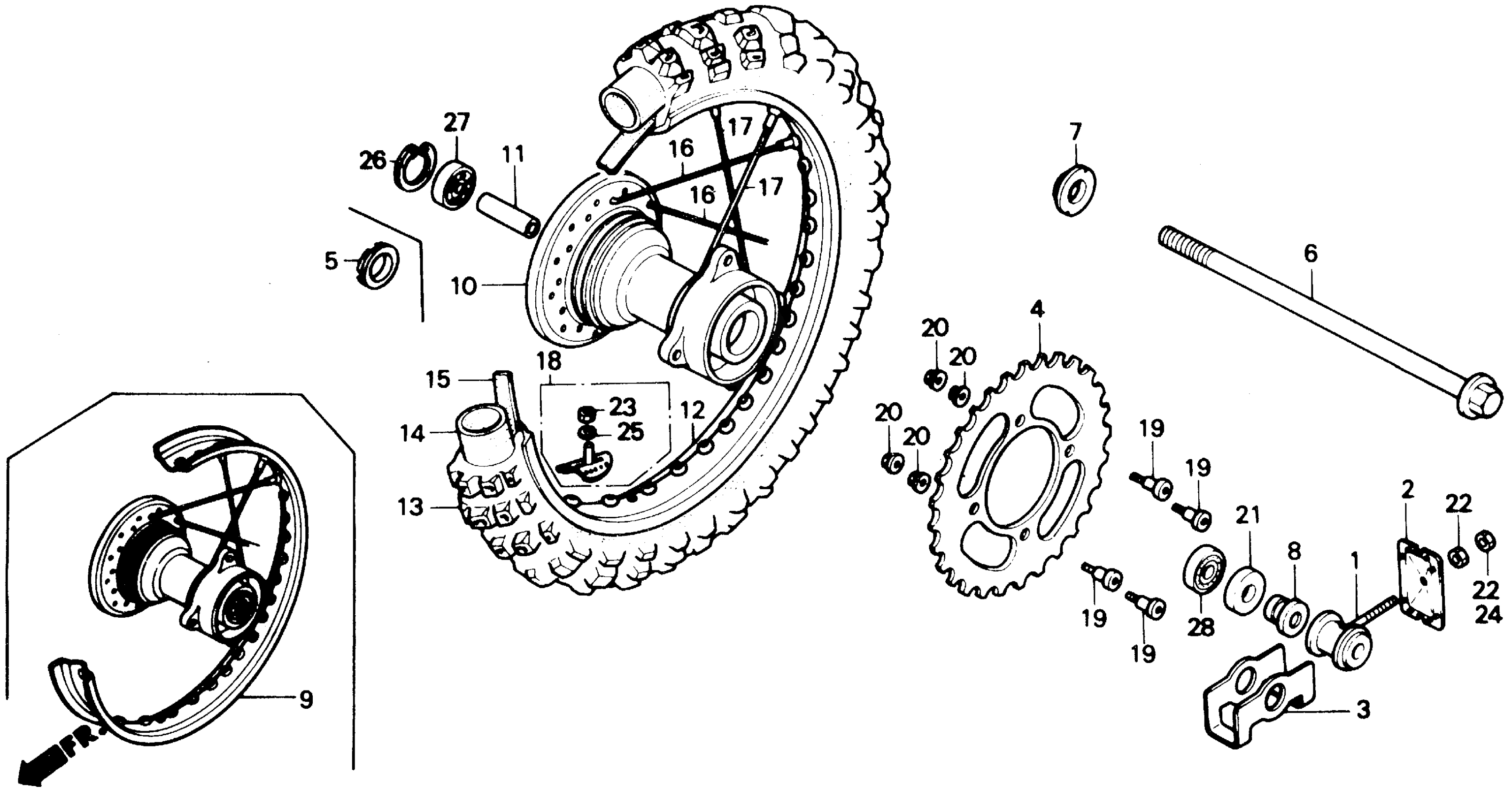

Honda CR80RA (85) MOTORCYCLE, JPN, VIN# JH2HE040-FK200010 TO JH2HE040-FK206049 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, CHAIN

40543-GC4-830

Unavailable

2

RETAINER, CHAIN ADJUSTER This part replaces 40544-GC4-730.

40544-GM7-700

Unavailable

2

RETAINER, CHAIN ADJUSTER This part replaces 40544-GC4-830.

40544-GM7-700

Unavailable

2

RETAINER, CHAIN ADJUSTER

40544-GM7-700

Unavailable

3

PLATE, CHAIN ADJUSTER

40545-GC4-830

Unavailable

4

SPROCKET, FINAL DRIVEN (49T)

41201-GC4-830

Unavailable

4

SPROCKET, FINAL (47T) | (Optional).

41202-GC4-830

Unavailable

4

SPROCKET, FINAL (51T) | (Optional).

41203-GC4-830

Unavailable

6

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-GC4-831

Unavailable

7

COLLAR, RR. AXLE (NOT AVAILABLE)

42306-GC4-830

Unavailable

8

COLLAR, RR. WHEEL (NOT AVAILABLE)

42311-GC4-730

Unavailable

9

RIM ASSY., RR. WHEEL | (Optional).

426A5-GC4-830

Unavailable

10

HUB, RR. WHEEL

42601-GC4-830

Unavailable

11

COLLAR, RR. AXLE DISTANCE

42620-GC4-830

Unavailable

12

RIM, RR. WHEEL

42701-GC4-831

Unavailable

13

TIRE, RR. (4.10S14) (4PR) (INOUE) (NOT AVAILABLE) This part replaces 42711-GC4-841.

42711-GS2-671

Unavailable

14

TUBE, TIRE (4.10-14) (INOUE) This part replaces 42712-GC4-671.

42712-169-701

Unavailable

14

TUBE, TIRE (4.10-14) (INOUE) This part replaces 42712-GC4-601.

42712-169-701

Unavailable

14

TUBE, TIRE (4.10-14) (INOUE)

42712-169-701

Unavailable

15

FLAP, TIRE (14) (INOUE) (NOT AVAILABLE)

42713-GC4-671

Unavailable

16

SPOKE SET A, RR. WHEEL

428A0-GC4-830

Unavailable

17

SPOKE SET B, RR. WHEEL

428B0-GC4-830

Unavailable

18

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

19

SCREW, FLAT (8X29)

90125-KA3-700

$6.19

20

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

20

NUT, FLANGE (8MM)

90309-428-731

$3.35

21

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$5.05

21

DUST SEAL (21X37X5.5) (ARAI) This part replaces 90755-GC4-005.

90755-GC4-003

$5.05

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

NUT, HEX. (6MM)

94002-06000-0S

$1.49

25

WASHER, SPRING (8MM)

94111-08000

$1.49

27

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

28

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
