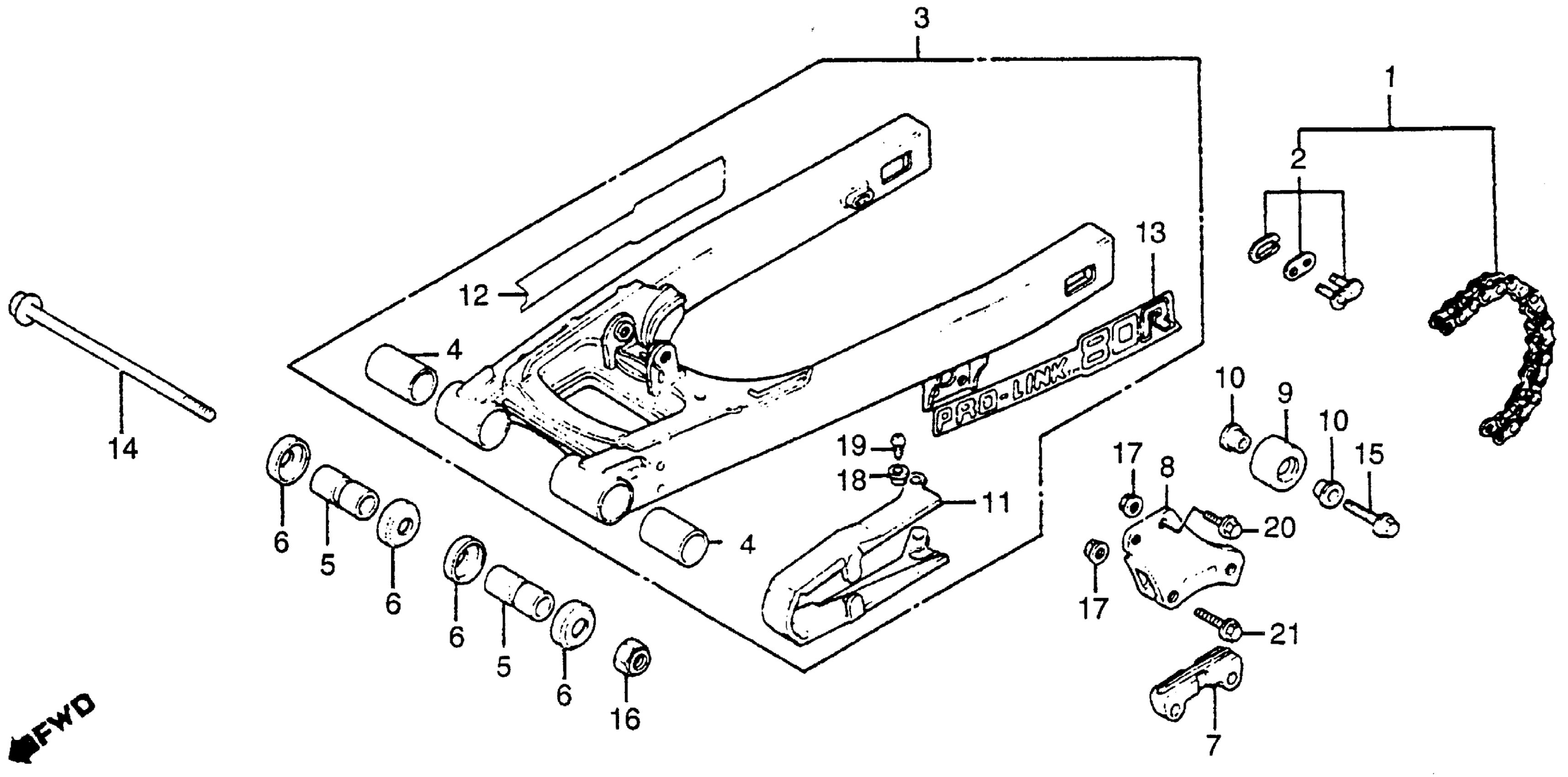

Honda CR80RA (84) MOTORCYCLE, JPN, VIN# JH2HE040-EK100009 SWINGARM + DRIVE CHAIN Diagram

#

Description
Price

1

CHAIN, DRIVE (420M-112) (DAIDO)

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-003.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-005.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-601.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-602.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40530-GC4-603.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) | (Optional). This part replaces 40530-GC4-811.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) | (Optional). This part replaces 40530-GC4-812.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) | (Optional). This part replaces 40532-GC4-601.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40532-GC4-602.

405W3-GC5-505

Unavailable

1

CHAIN, DRIVE (420M-112) (DAIDO) This part replaces 40532-GC4-603.

405W3-GC5-505

Unavailable

2

MASTER LINK (DAIDO)

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

3

SWINGARM ASSY., RR. (NOT AVAILABLE)

52100-GC4-730

Unavailable

4

BUSH, SWINGARM PIVOT

52108-GC4-003

Unavailable

5

COLLAR, SWINGARM

52141-GC4-000

Unavailable

6

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-GE2-003.

52144-GE2-005

$16.27

6

CAP, SWINGARM DUST SEAL (NOK)

52144-GE2-005

$16.27

7

SLIDER, CHAIN GUIDE (NOT AVAILABLE)

52147-GC4-730

Unavailable

8

GUIDE, CHAIN

52156-GC4-700

Unavailable

9

ROLLER, CHAIN

52158-GC4-700

Unavailable

10

COLLAR, CHAIN ROLLER (NOT AVAILABLE)

52159-GC4-000

Unavailable

11

SLIDER, CHAIN This part replaces 52170-GC4-730.

52170-GS2-600

Unavailable

11

SLIDER, CHAIN

52170-GS2-600

Unavailable

12

EMBLEM, R. SWINGARM

87121-GC4-730

Unavailable

13

EMBLEM, L. SWINGARM (NOT AVAILABLE)

87122-GC4-730

Unavailable

14

BOLT, SWINGARM PIVOT

90121-GC4-700

Unavailable

15

BOLT, FLANGE (8X28) This part replaces 90184-GC4-730.

96400-08028-00

$1.85

15

BOLT, FLANGE (8X28)

96400-08028-00

$1.85

16

NUT, FLANGE (14MM)

90201-GC4-000

$4.48

17

NUT, U (6MM) This part replaces 90301-MC7-003.

90301-473-003

$4.07

17

NUT, U (6MM)

90301-473-003

$4.07

17

NUT, U (6MM) This part replaces 90301-473-013.

90301-473-003

$4.07

18

WASHER, HEADLIGHT CASE SETTING

90520-134-000

$2.66

19

SCREW, TAPPING (5X12)

93901-25210

$1.49

20

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

20

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

21

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

21

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
